Recent activity

The geomagnetic field was quiet to unsettled on October 2. Solar wind speed at SOHO ranged between 272 and 348 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 118.2 (decreasing 14.5 over the last solar rotation). The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 7.3). Three hour interval K indices: 21132212 (planetary), 20022322 (Boulder).

The background x-ray flux is at the class B3 level.

At midnight UTC the visible solar disk had 11 spotted active regions (in 2K resolution SDO images).

Region 11579 [S10W33] was quiet and stable.
Region 11580 [N17W27] decayed slowly and quietly.
Region 11582 [S12W12] was mostly quiet and still has polarity intermixing near the large penumbra.
Region 11584 [S23E02] decayed slowly and quietly.
New region 11585 [S17E67] rotated into view on October 1 and was numbered the next day by SWPC. Slow development was observed during the day.

Spotted regions not numbered by NOAA/SWPC:
S1929 [N07W82] was quiet and stable.
S1955
[S08W00] was quiet and stable.
S1957 [N04W42] was quiet and stable.
S1958 [N05E02] was quiet and stable.
New region S1959 [N09E19] emerged with a tiny spot.
New region S1960 [N37W03] emerged with a tiny spot.

Coronal mass ejections (CMEs)

September 30 - October 2: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A poorly defined coronal hole (CH537) in the northern hemisphere was in an Earth facing position on October 1-2. A recurrent coronal hole (CH538) in the southern hemisphere will rotate into an Earth facing position on October 5-6.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on October 3-6.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

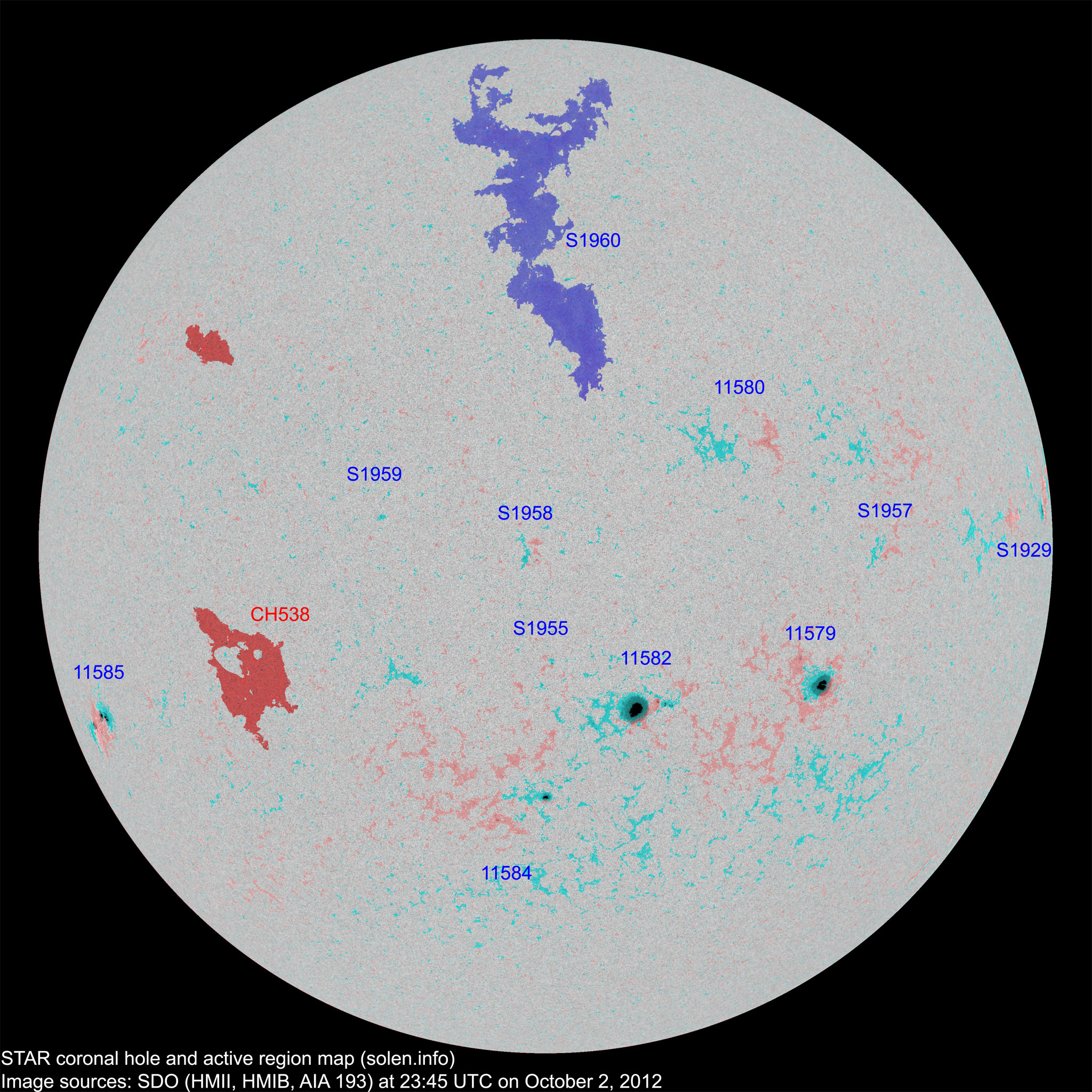

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
S1929 2012.09.21   2 1 N06W82 0040   CAO
11577 2012.09.22 3     N09W95 0040 DSO     location: N08W98

rotated out of view

11579 2012.09.23
2012.09.24
3 8 5 S09W34 0160 CSO CSO area: 0230

location: S10W33

S1936 2012.09.23       N05W61         plage
S1937 2012.09.24       S22W36           plage
11580 2012.09.24
2012.09.25
  3   N19W28 0000   AXX
11582 2012.09.25
2012.09.26
7 11 7 S12W12 0310 DHO CHO area: 0450
S1943 2012.09.26       N14W45         plage
S1950 2012.09.28       N18W48           plage
S1951 2012.09.29       S19W42           plage
11584 2012.09.30 1 6 2 S22W01 0030 HSX CSO location: S23E02
S1953 2012.09.30       N12W40           plage
11585 2012.10.01
2012.10.02
4 6 4 S16E63 0050 DSO DAO location: S17E67
S1955 2012.10.01   2   S08W00 0000   AXX
S1956 2012.10.01       S08E17         plage
S1957 2012.10.01   2   N04W42 0000   BXO
S1958 2012.10.01   3   N05E02 0000   BXO
S1959 2012.10.02   1   N09E19 0000   AXX
S1960 2012.10.02   1   N37W03 0000   AXX
Total spot count: 18 45 19
Sunspot number: 68 155 69  (total spot count + 10 * number of spotted regions)
Weighted SN: 48 75 49  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 41 54 38 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible solar max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 (65.3 projected, -1.5) 10.10
2012.05 121.5 69.0 (63.3 projected, -2.0) 7.06
2012.06 119.6 64.5 (61.9 projected, -1.4) 10.08
2012.07 133.9 66.5 (62.2 projected, +0.3) 13.90
2012.08 115.4 63.1 (64.6 projected, +2.4) 7.96
2012.09 122.9 61.5 (65.8 projected, +1.2) 8.64
2012.10 123.2 (1)  4.1 (2A) / 63.5 (2B) / 59.5 (2C) (66.0 projected, +0.2) (20.56)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
