Recent activity

The geomagnetic field was very quiet on December 12. Solar wind speed at SOHO ranged between 270 and 362 km/.

Solar flux measured at 20h UTC on 2.8 GHz was 164.8 (decreasing 13.1 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 133.3. The Potsdam WDC planetary A index was 1 (STAR Ap - based on the mean of three hour interval ap indices: 1.1). Three hour interval K indices: 00000001 (planetary), 01010101 (Boulder).

The background x-ray flux was at the class B8 level.

At the time of counting spots (see image time) spots were observed in 14 active regions in 2K resolution (SN: 307) and 11 active regions in 1K resolution (SN: 196) SDO images on the visible solar disk.

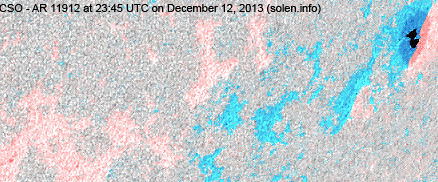

Region 11912 [S22W62] regained a trailing penumbra spot. The region prodoced a long duration C4.6 event peaking at 03:23 UTC. This event was associated with a partial halo CME.
Region 11916 [S13W84] rotated partly out of view and was quiet.

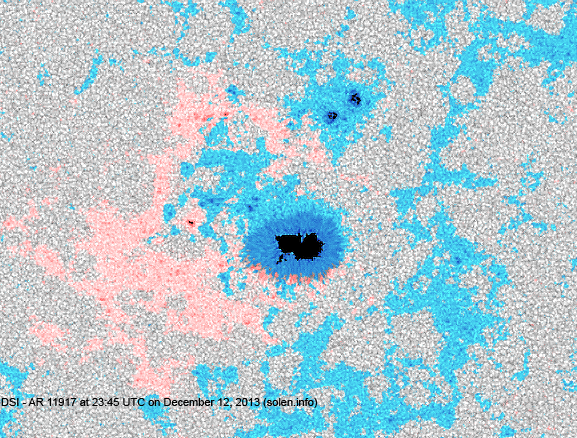

Region 11917 [S16E03] produced a C3.4 long duration event peaking at 06:59 UTC. This event triggered a filament eruption to the south of the region.

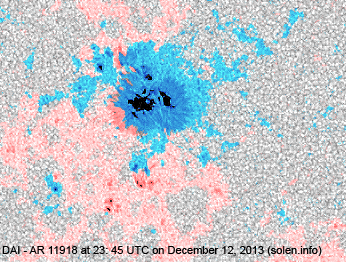

Region 11918 [S10E24] developed slowly and quietly.
Region 11919 [S05W67] decayed slowly and quietly.

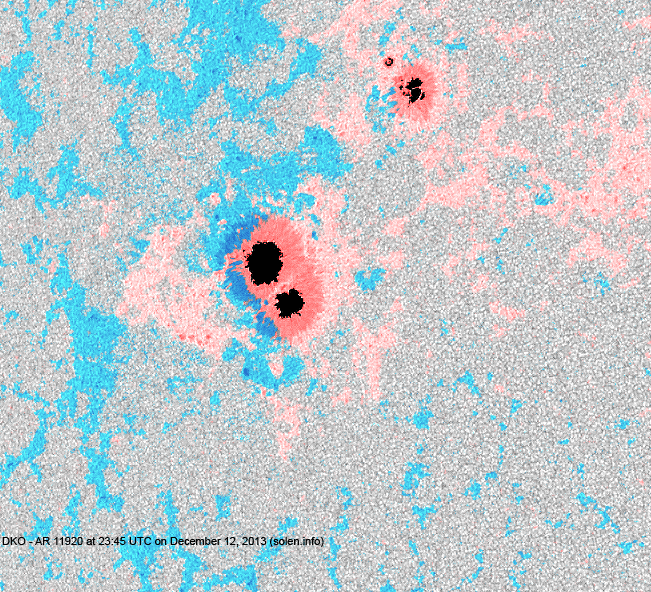

Region 11920 [N07E36] gained spots and was mostly quiet.
C5+ flare: C5.9 at 22:14 UTC
Region 11922 [N09W46] decayed slowly and quietly.
Region 11923 [N17E03] developed slowly and quietly.
Region 11924 [S12W73] was quiet and stable.

Spotted regions not numbered by SWPC:
S2892 [S14W23] decayed slowly and quietly.
S2910 [S07E70] developed slowly and quietly. The region has minor polarity intermixing.
S2911 [N18E14] was quiet and stable.

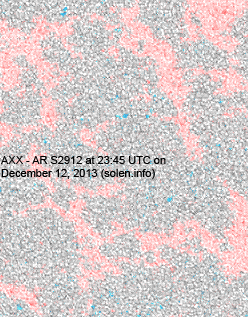

New region S2912 [S26E23] emerged with penumbra spots in an old plage area.
New region S2913 [N03W22] emerged with a penumbra spot.

Coronal mass ejections (CMEs)

December 10-11: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
December 12: A partial halo CME (full halo in STEREO-B) was observed after the C4 event in AR 11912. This CME could have an Earth directed extension. A filament eruption the the south of 11917 was associated with a partial halo CME, possibly with an Earth directed extension.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A large northern hemisphere coronal hole (CH597) was in an Earth facing position on December 11.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be initially quiet on December 13. A high speed stream from CH597 could cause unsettled and active intervals from the latter half of December 13 until December 15.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

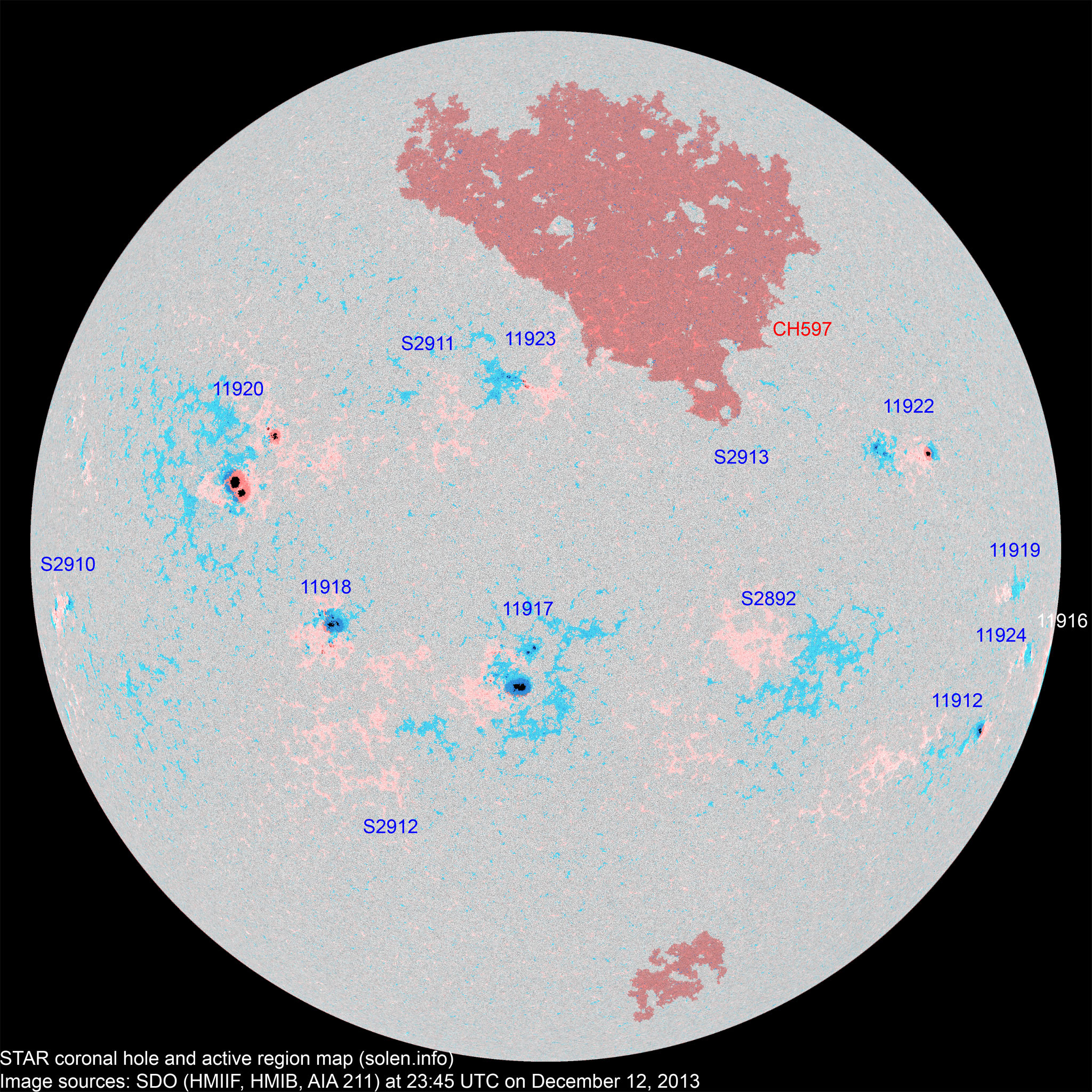

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11912 2013.12.01
2013.12.02
1 3 2 S21W64 0080 HSX CSO area: 0110
11916 2013.12.04 4 2 2 S13W90 0120 EAC HRX



S2892 2013.12.04   4 1 S14W23 0008   BXO
11917 2013.12.06
2013.12.07
12 35 17 S15E04 0190 DAI DSI beta-gamma

area: 0330

11923 2013.12.07
2013.12.10
9 32 13 N18E02 0010 BXO DRI area: 0070
S2897 2013.12.07       N15W27           plage
S2898 2013.12.07       N20W46           plage
11918 2013.12.08 13 26 20 S08E25 0180 DAO DAI beta-gamma

area: 0310

location: S10E24]

11920 2013.12.08
2013.12.09
2 29 13 N13E31 0080 HAX CKO beta-gamma

location: N07E36

area: 0540

11922 2013.12.08
2013.12.10
9 12 9 N10W45 0090 DSI DSI area: 0140
11919 2013.12.08
2013.12.09
2 3 1 S06W65 0010 AXX BXO



S2906 2013.12.08       N09E13           plage
11921 2013.12.09 2     N08E37 0360 HKX       magnetically part of AR 11920
11924 2013.12.09
2013.12.11
2 3 2 S12W73 0020 CRO CRO
S2908 2013.12.10       S08E02           plage
S2909 2013.12.10       S27W08         plage
S2910 2013.12.11   13 6 S07E70 0060   DRI
S2911 2013.12.11   1   N18E14 0001   AXX
S2912 2013.12.12   3   S26E23 0007   AXX
S2913 2013.12.12   1   N03W22 0002   AXX
Total spot count: 56 167 86
Sunspot number: 156 307 196  (total spot count + 10 * number of spotted regions)
Weighted SN: 99 209 128  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 94 107 108 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 57.5 (-0.9) 10.56
2013.04 124.8 72.4 57.9 (+0.4) 5.40
2013.05 131.4 78.7 59.9 (+2.0) 9.73
2013.06 110.1 52.5 (62.2 projected, +2.3) 12.60
2013.07 115.5 57.0 (63.9 projected, +1.7) 9.47
2013.08 114.6 66.0 (64.8 projected, +0.9) 8.27
2013.09 102.6 36.9 (65.6 projected, +0.8) 5.23
2013.10  132.1 85.6 (64.9 projected, -0.7) 7.71
2013.11  148.3 77.6 (63.0 projected, -1.9) 5.68
2013.12 153.2 (1) 46.3 (2A) / 119.5 (2B) / 84.9 (2C) (61.7 projected, -1.3) (5.6)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
