The geomagnetic field was quiet to unsettled on July 13. Solar wind speed at SOHO ranged between 349 and 518 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 114.0 (decreasing 1.9 over the last solar rotation). The Potsdam WDC planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 7.8). Three hour interval K indices: 33210122 (planetary), 43211313 (Boulder).
The background x-ray flux was at the class B3 level.
At midnight UTC the visible solar disk had 8 spotted active regions (in 2K resolution SDO images).
Region 11787 [S15W57] decayed further and lost all leading polarity
spots.
Region 11791 [S14E33] developed further and could produce C flares.
Region 11792 [N04E45] was quiet and stable.
Spotted regions not numbered by SWPC:
New region S2545 [S20E64] emerged with a penumbra spot.
New region S2546 [S07E76] rotated into view with penumbra spots.
New region S2547 [N19E86] rotated into view with a single large spot.
New region S2548 [S16W50] emerged to the east of AR 11787 with penubra
spots.
New region S2549 [N15W42] emerged with a few spots.
July 11-13: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A recurrent coronal hole (CH575) in the northern hemisphere will likely rotate into an Earth facing position on July 14-16.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to unsettled on July 14 and quiet on July 15. On July 16 a corotating interaction region associated with CH575 could cause unsettled to major storm conditions. This disturbance could extend to July 19, gradually decreasing in intensity.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

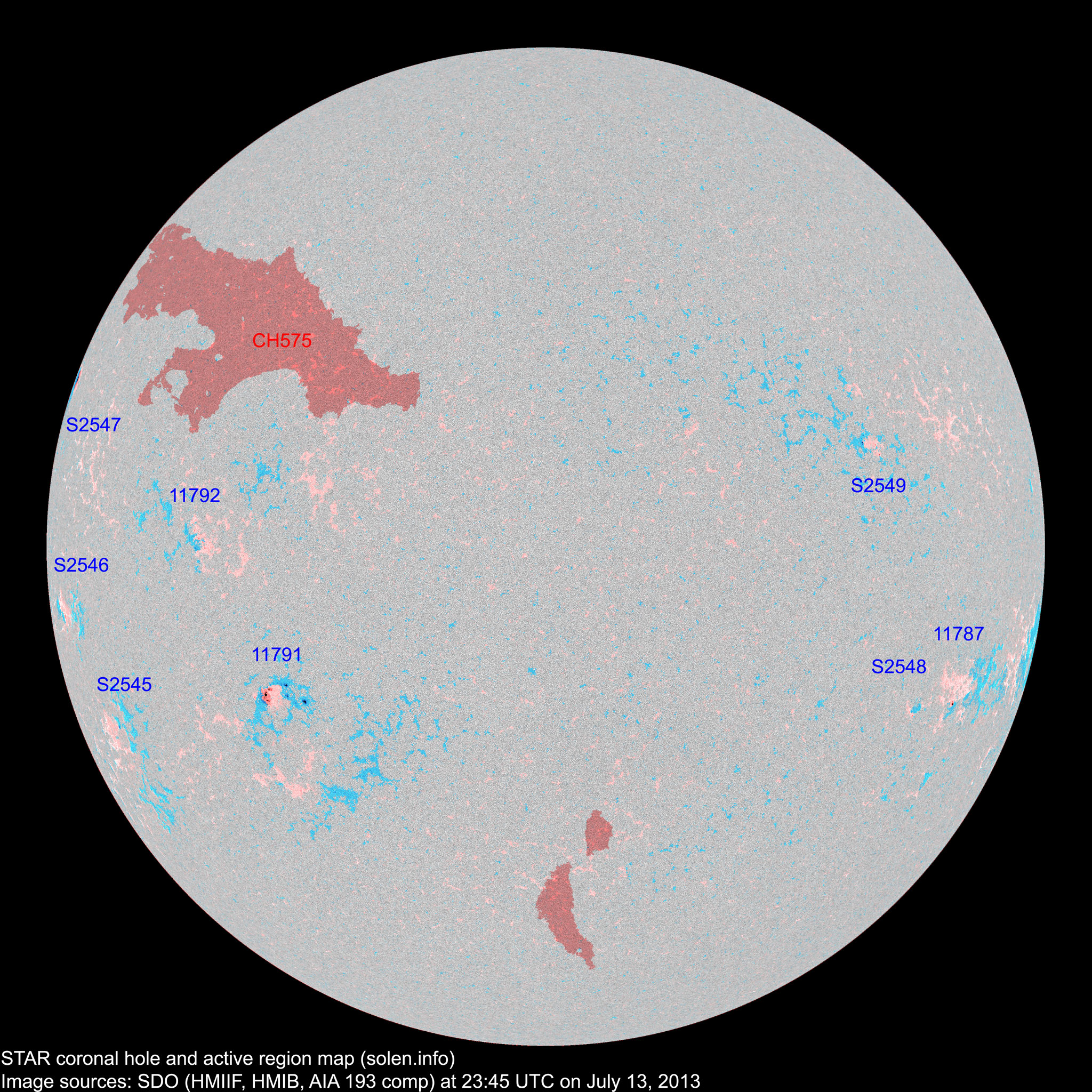

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11785 | 2013.07.01 | 6 | S11W83 | 0030 | CAO |
 |
spotless | ||||
| 11787 | 2013.07.02 2013.07.03 |
10 | 3 | 1 | S14W63 | 0090 | EAO | HRX |
 |
 |
area: 0015 location: S15W57 |
| 11789 | 2013.07.06 2013.07.07 |
S27W51 |
plage location: S23W47 see AR S2536 |
||||||||
| 11790 | 2013.07.06 2013.07.07 |
S15W39 | plage | ||||||||
| S2534 | 2013.07.06 | N21W39 |
 |
plage | |||||||
| S2536 | 2013.07.07 | S28W48 | plage | ||||||||
| S2537 | 2013.07.07 | N22W30 | plage | ||||||||
| 11791 | 2013.07.10 2013.07.12 |
7 | 20 | 8 | S14E32 | 0130 | DAO | DAI |
 |
 |
|
| S2540 | 2013.07.10 | N17W16 |
 |
plage | |||||||
| 11792 | 2013.07.10 2013.07.12 |
3 | 8 | 3 | N05E43 | 0010 | BXO | BXO |
 |
 |
area: 0022 |
| S2542 | 2013.07.11 | S14W24 | plage | ||||||||
| S2543 | 2013.07.12 | S26E29 |
 |
plage | |||||||
| S2544 | 2013.07.12 | N10E29 |
 |
plage | |||||||
| S2545 | 2013.07.13 | 1 | 1 | S20E64 | 0006 | AXX |
 |
||||
| S2546 | 2013.07.13 | 4 | S07E76 | 0010 | AXX |
 |
|||||
| S2547 | 2013.07.13 | 1 | 1 | N19E86 | 0200 | HSX |
 |
||||
| S2548 | 2013.07.13 | 2 | S16W50 | 0005 | AXX |
 |
|||||
| S2549 | 2013.07.13 | 7 | 2 | N15W42 | 0020 | CRO |
 |
||||
| Total spot count: | 26 | 46 | 16 | ||||||||
| Sunspot number: | 66 | 126 | 76 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 41 | 62 | 32 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 40 | 44 | 42 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2011.11 | 153.5 (cycle peak) | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
| 2012.04 | 113.0 | 55.2 | 64.6 (-2.2) | 10.10 |
| 2012.05 | 121.5 | 69.0 | 61.7 (-2.9) | 7.06 |
| 2012.06 | 119.6 | 64.5 | 58.9 (-2.8) | 10.08 |
| 2012.07 | 133.9 | 66.5 | 57.7 (-1.2) | 13.90 |
| 2012.08 | 115.4 | 63.0 | 58.1 (+0.4) | 7.96 |
| 2012.09 | 122.9 | 61.4 | 58.1 (-0.0) | 8.07 |
| 2012.10 | 123.3 | 53.3 | 58.6 (+0.5) | 9.97 |
| 2012.11 | 121.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 62.9 | (58.7 projected, -0.9) | 4.69 |
| 2013.02 | 104.3 | 38.0 | (58.3 projected, -0.4) | 6.11 |
| 2013.03 | 111.3 | 57.9 | (57.9 projected, -0.4) | 10.56 |
| 2013.04 | 124.8 | 72.4 | (57.5 projected, -0.4) | 5.40 |
| 2013.05 | 131.4 | 78.7 | (57.6 projected, +0.1) | 9.73 |
| 2013.06 | 110.1 | 52.5 | (57.9 projected, +0.3) | 12.60 |
| 2013.07 | 122.1 (1) | 42.0 (2A) / 100.1 (2B) / 63.1 (2C) | (58.0 projected, +0.1) | (9.46) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
