Recent activity

The geomagnetic field was quiet to active on May 27. Solar wind speed at SOHO ranged between 605 and 872 km/s under the influence of CME effects.

Solar flux measured at 20h UTC on 2.8 GHz was 110.1 (decreasing 44.3 over the last solar rotation). The Potsdam WDC planetary A index was 13 (STAR Ap - based on the mean of three hour interval ap indices: 12.8). Three hour interval K indices: 23223342 (planetary), 23233332 (Boulder).

The background x-ray flux was at the class B3 level.

At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).

Region 11753 [N05W35] was quiet and stable.
Region 11755 [N12W15] decayed quickly and quietly.
Region 11756 [S20W30] decayed slowly and quietly.
Region 11757 [S09E42] was quiet and stable.
Region 11758 [S22E61] decayed slowly and quietly.
New region 11759 [S09E68] rotated into view on May 26 and was numbered the next day by SWPC.

Spotted regions not numbered by SWPC:
S2431 [S17W62] reemerged with a penumbra spot.
New region S2446 [S17E36] emerged with penumbra spots in an old plage area.
New region S2447 [N22W17] emerged with penumbra spots.

Coronal mass ejections (CMEs)

May 25-27: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH571) will likely rotate into an Earth facing position on May 29-30.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.

Forecast

The geomagnetic field is expected to be quiet to unsettled on May 28. Quiet conditions are likely on May 29-31. Quiet to unsettled conditions with a chance of active intervals are possible on June 1-2 due to effects from CH571.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

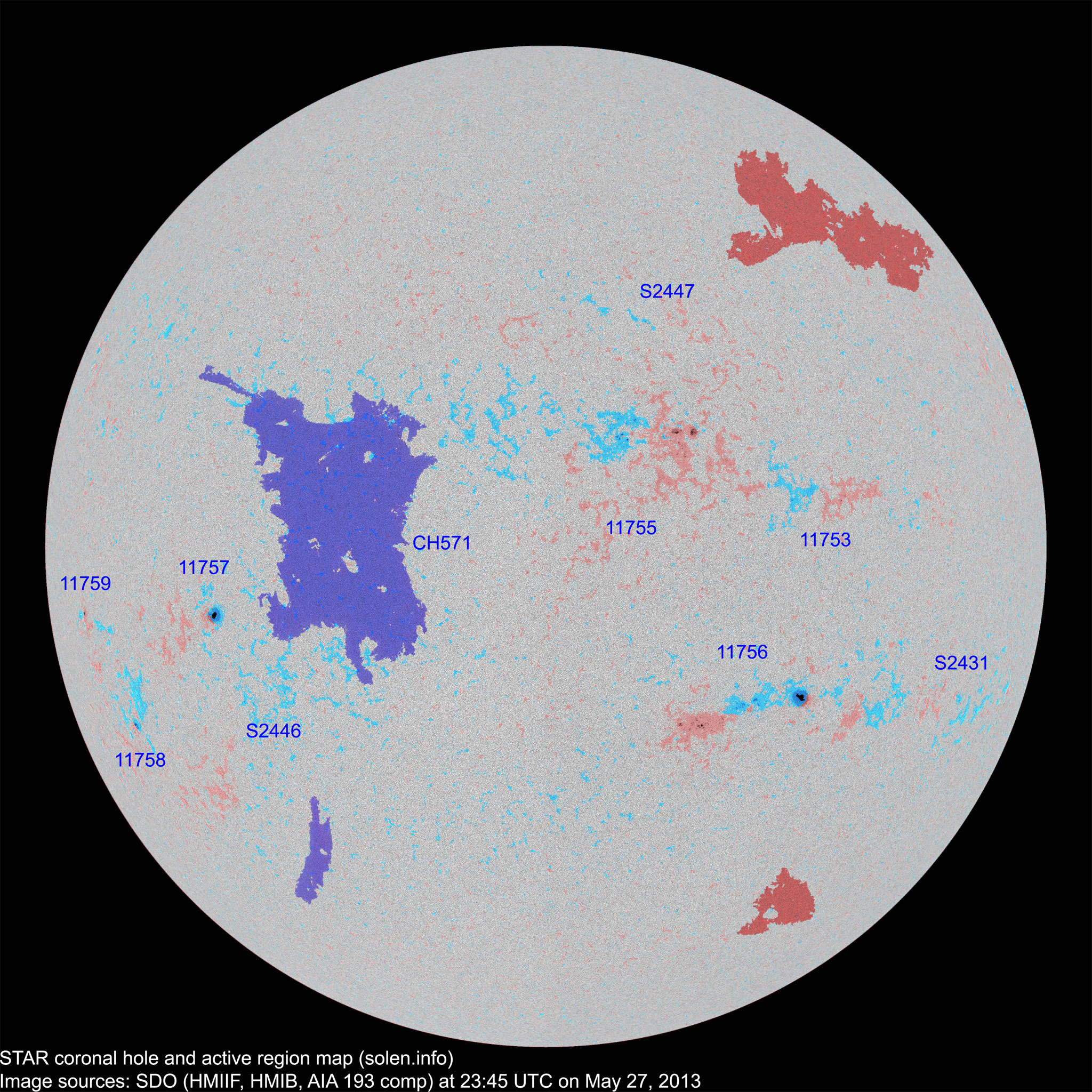

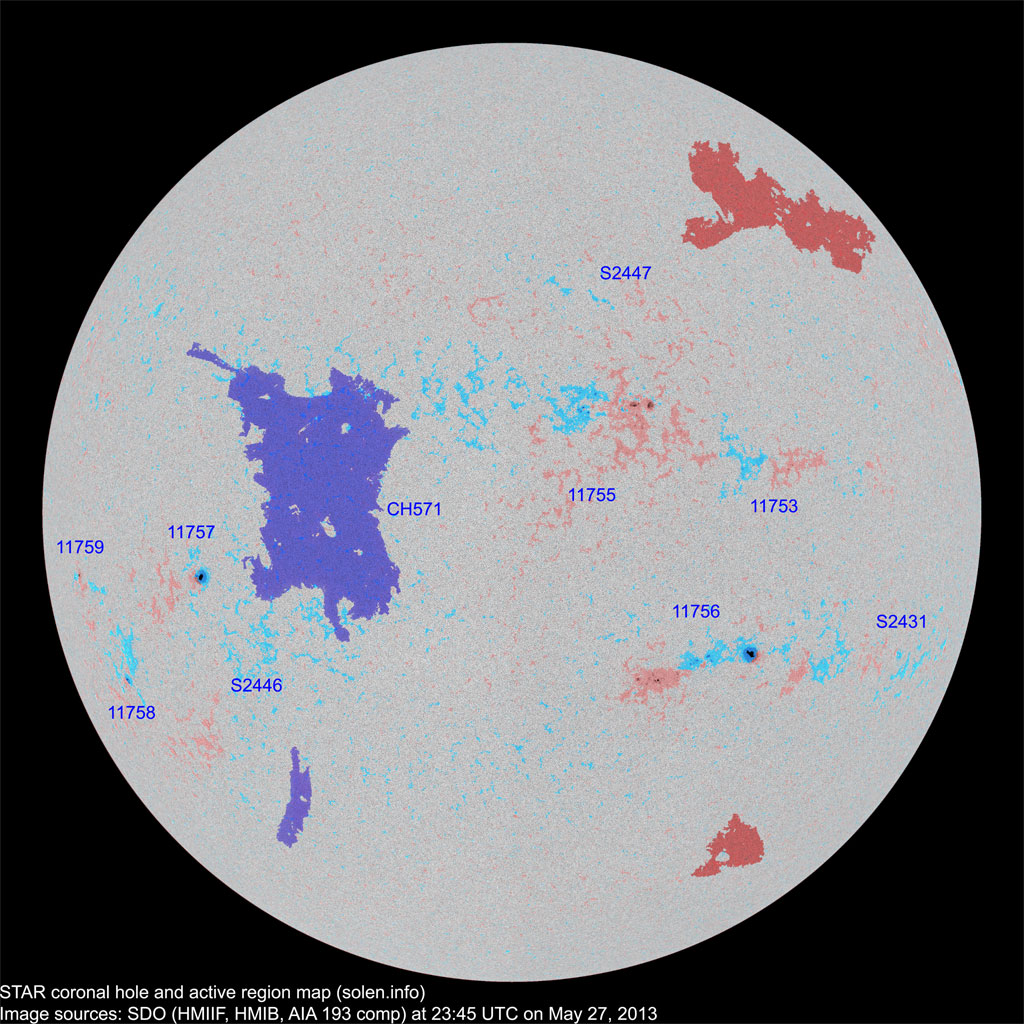

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11754 2013.05.18
2013.05.20
      S19W41

plage

11753 2013.05.19
2013.05.20
  6 3 N05W34 0010   BXO
11756 2013.05.20
2013.05.21
17 28 12 S20W26 0190 FSO FSO
S2431 2013.05.20   1   S17W62 0003   AXX
11755 2013.05.20
2013.05.21
16 21 13 N12W13 0110 DAO DSO
S2436 2013.05.21       N05W45           plage
S2437 2013.05.21       N15W51           plage
11757 2013.05.24
2013.05.25
1 4 2 S09E41 0100 HSX CSO area: 0140
S2441 2013.05.24       N19W21           plage
S2442 2013.05.25       N17W38           plage
11758 2013.05.26 1 4 1 S23E60 0030 HSX HRX
11759 2013.05.26
2013.05.27
2 1 1 S08E68 0000 BXO HRX area: 0010
S2444 2013.05.26       N15E05         plage
S2445 2013.05.26       N18W81         plage
S2446 2013.05.27   3   S17E36 0004   AXX
S2447 2013.05.27   3   N22W17 0006   BXO
Total spot count: 37 71 32
Sunspot number: 87 161 92  (total spot count + 10 * number of spotted regions)
Weighted SN: 57 92 53  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 52 56 51 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle max) 96.7 (cycle max) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.7 (-1.2) 13.90
2012.08 115.4 63.0 58.1 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.0) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 (59.1 projected, +0.5) 7.08
2012.12 108.6 40.8 (58.4 projected, -0.7) 3.44
2013.01 127.1 62.9 (58.0 projected, -0.4) 4.69
2013.02 104.3 38.0 (58.2 projected, +0.5) 6.11
2013.03 111.3 57.9 (57.8 projected, -0.4) 10.56
2013.04 124.8 72.4 (57.4 projected, -0.4) 5.40
2013.05 135.4 (1) 116.7 (2A) / 134.0 (2B) / 81.0 (2C) (57.5 projected, +0.1) (9.78)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
