Recent activity

The geomagnetic field was quiet on September 22. Solar wind speed at SOHO ranged between 351 and 404 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 111.2 (unchanged over the last solar rotation). The 90 day 10.7 flux at 1 AU was 113.9. The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.5). Three hour interval K indices: 22201111 (planetary), 22201221 (Boulder).

The background x-ray flux was at the class B2 level.

At the time of counting spots (see image time) spots were observed for 10 active regions in 2K resolution (SN: 167) and 7 active regions in 1K resolution (SN: 92) SDO images on the visible solar disk.

Region 11841 [S03W77] was quiet and stable.
Region 11843 [N00W63] was quiet and stable.
Region 11845 [S17W02] developed slowly and quietly.
Region 11846 [S18E10] was quiet and stable.
Region 11849 [N19W11] was quiet and stable.
Region 11850 [N08E38] decayed slowly and quietly.
New region 11851 [S18E69] rotated into view.

Spotted regions not numbered by SWPC:
S2705 [S20W13] was quiet and stable.
New region S2707 [N17E40] emerged with penumbra spots in an old plage area.
New region S2708 [S19W40] emerged with a penumbra spot.

Coronal mass ejections (CMEs)

September 20-23: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH587) in the northern hemisphere was in an Earth facing position on September 19-20.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on September 23 due to effects from CH587 and quiet on September 24-26.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

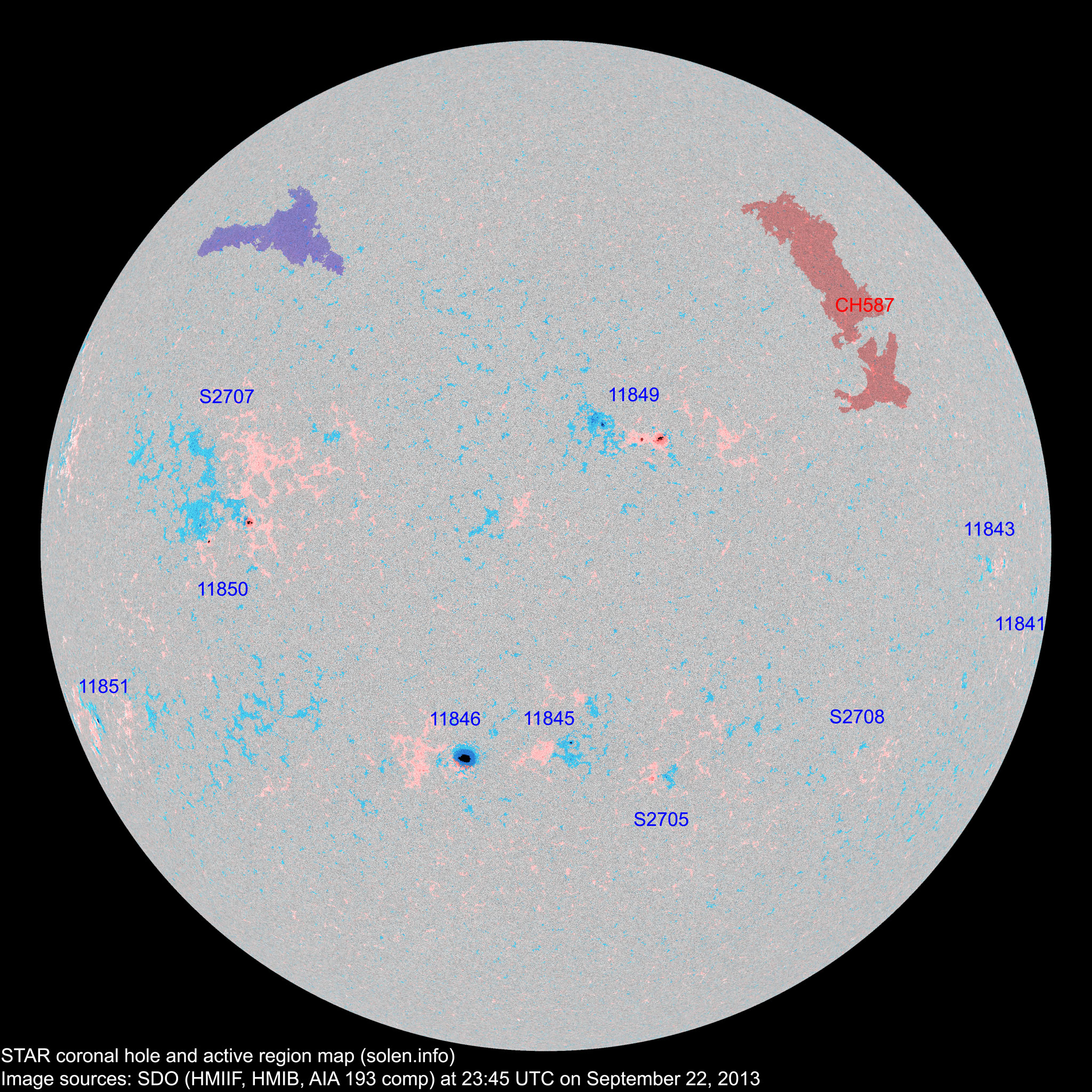

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11841 2013.09.10
2013.09.11
1 1   S04W78 0010 HRX AXX

location: S03W77

S2684 2013.09.15       S31W53           plage
11848 2013.09.16
2013.09.19
      S11W05         plage
11845 2013.09.16
2013.09.17
3 6 2 S17W05 0020 BXO CRO location: S17W02
11847 2013.09.16
2013.09.17
      N11W01         plage
11843 2013.09.16
2013.09.17
5 3   N03W62 0020 CAO BXO area: 0007

location: N00W63

11846 2013.09.17 1 6 3 S18E10 0140 HSX CSO
S2692 2013.09.17       N22W40           plage
S2693 2013.09.17       N19W57           plage
S2694 2013.09.17       N06W37           plage
S2695 2013.09.17       S34W47           plage
S2699 2013.09.18       S20W42           plage
11849 2013.09.19 12 24 7 N19W10 0090 DAO DAO area: 0150
11850 2013.09.19 5 9 3 N07E38 0090 DAO CSO
S2704 2013.09.21       S09E37         plage
S2705 2013.09.21   5 2 S20W13 0027   BXO
S2706 2013.09.21       S12W56         plage
11851 2013.09.22 1 2 1 S16E69 0030 HRX CRO   location: S18E69
S2707 2013.09.22   10 4 N17E40 0015   BXO
S2708 2013.09.22   1   S19W40 0003   AXX
Total spot count: 28 67 22
Sunspot number: 98 167 92  (total spot count + 10 * number of spotted regions)
Weighted SN: 54 88 43  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 59 58 51 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
likely cycle 24 max
8.81
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.8 (-1.1) 13.90
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 (58.2 projected, -0.2) 10.56
2013.04 124.8 72.4 (57.9 projected, -0.3) 5.40
2013.05 131.4 78.7 (58.0 projected, +0.1) 9.73
2013.06 110.1 52.5 (58.3 projected, +0.3) 12.60
2013.07 115.5 57.0 (58.3 projected, 0.0) 9.47
2013.08 114.6 66.0 (58.2 projected, -0.1) 8.27
2013.09 100.8 (1) 40.5 (2A) / 55.2 (2B) / 36.9 (2C) (57.8 projected, -0.4) (5.95)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
