Recent activity

The geomagnetic field was inactive on September 28. Solar wind speed at SOHO ranged between 279 and 317 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 105.7 (increasing 1.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 114.1. The Potsdam WDC planetary A index was 1 (STAR Ap - based on the mean of three hour interval ap indices: 0.8). Three hour interval K indices: 00000000 (planetary), 10001211 (Boulder).

The background x-ray flux was at the class B2 level.

At the time of counting spots (see image time) spots were observed in 8 active regions in 2K resolution (SN: 119) and 4 active regions in 1K resolution (SN: 51) SDO images on the visible solar disk.

Region 11846 [S18W70] was quiet and stable.
Region 11849 [N19W84] was quiet and stable.
Region 11850 [N09W46] decayed slowly and quietly.
Region 11851 [S18W08] was quiet and stable.
New region 11854 [N05E63] emerged near the limb on September 27 and was numbered the next day by SWPC.

Spotted regions not numbered by SWPC:
S2710 [N16E10] was quiet and stable.
New region S2721 [S11E43] emerged with a penumbra spot.
New region S2722 [S01W30] emerged with a penumbra spot and has the polarity layout of a northern hemisphere region.

Coronal mass ejections (CMEs)

September 26-28: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH588) was in an Earth facing position on September 28.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on September 29-30. On October 1-2 there's a chance of unsettled intervals due to effects from CH588.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

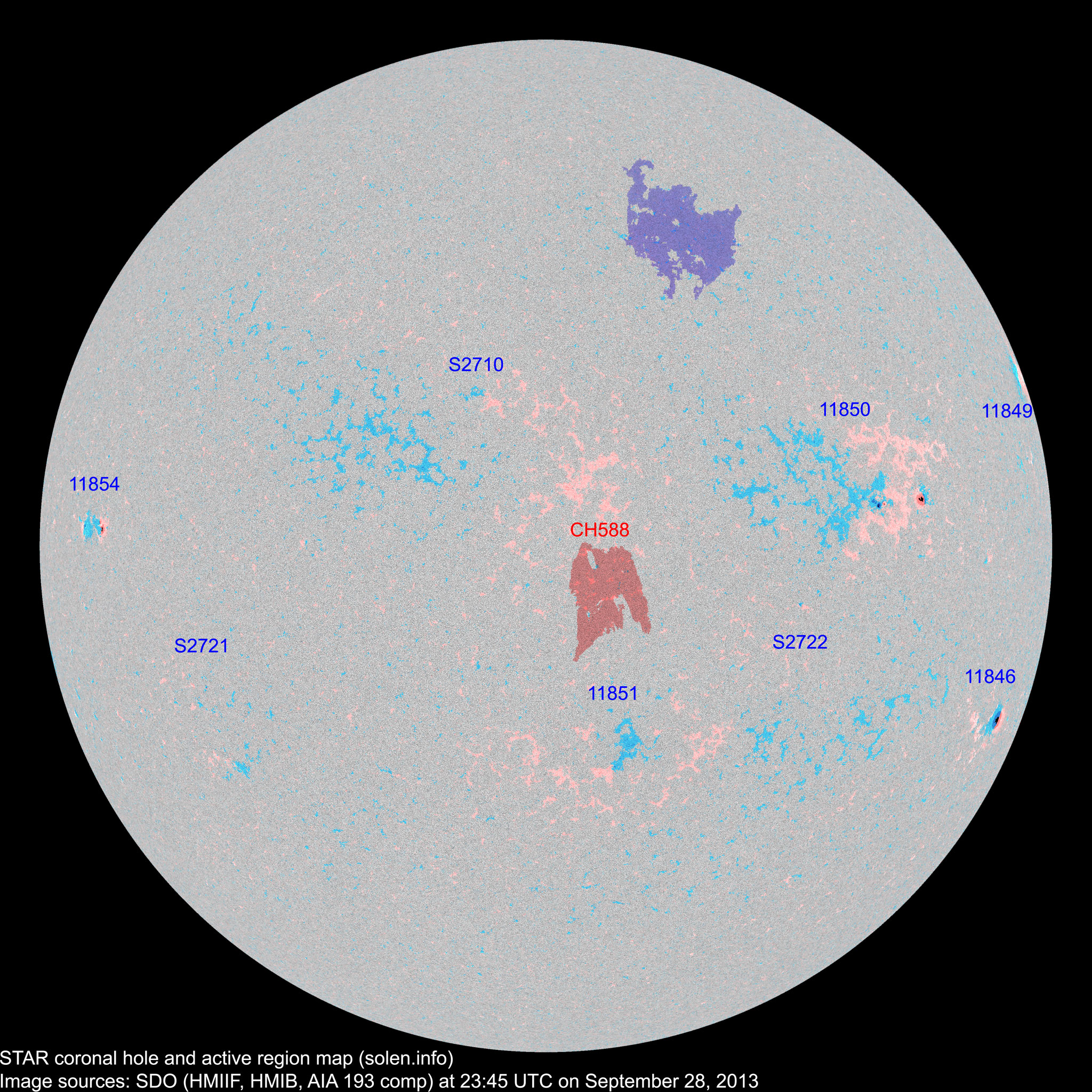

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11848 2013.09.16
2013.09.19
      S11W87           plage
11845 2013.09.16
2013.09.17
      S17W88           plage

location: S17W67

11847 2013.09.16
2013.09.17
      N11W81           plage

location: N10W61

11846 2013.09.17 1 1 1 S17W70 0150 HSX HSX
11849 2013.09.19   2   N19W84 0010   BXO
11850 2013.09.19 7 14 6 N09W46 0100 DSO DSO images/AR_11850_20130927_2345.png



11851 2013.09.22   8 1 S20W09 0016   BXO

location: S18W08

S2709 2013.09.23       S12W51           plage
S2710 2013.09.24   7   N16E10 0014   BXO images/AR_S2710_20130927_2345.png
S2711 2013.09.24       S12W39           plage
S2712 2013.09.24       S18W18         plage
S2713 2013.09.24       S05W18           plage
S2714 2013.09.24       S26W55           plage
11853 2013.09.24
2013.09.26
5     N19W91 0030 CAO

real location: N19W105

SWPC data is actually for AR 11849

S2716 2013.09.25       N03W46           plage
S2718 2013.09.26       S20E41           plage
11854 2013.09.27
2013.09.28
5 5 3 N06E65 0050 DSO DAO location: N05E63
S2720 2013.09.27       N10E23         plage
S2721 2013.09.28   1   S11E43 0002   AXX
S2722 2013.09.28   1   S01W30 0003   AXX
Total spot count: 18 39 11
Sunspot number: 58 119 51  (total spot count + 10 * number of spotted regions)
Weighted SN: 38 54 26  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 35 42 28 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
likely cycle 24 max
8.81
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.8 (-1.1) 13.90
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 (58.2 projected, -0.2) 10.56
2013.04 124.8 72.4 (57.9 projected, -0.3) 5.40
2013.05 131.4 78.7 (58.0 projected, +0.1) 9.73
2013.06 110.1 52.5 (58.3 projected, +0.3) 12.60
2013.07 115.5 57.0 (58.3 projected, 0.0) 9.47
2013.08 114.6 66.0 (58.2 projected, -0.1) 8.27
2013.09 102.5 (1) 52.4 (2A) / 56.1 (2B) / 38.6 (2C) (57.8 projected, -0.4) (5.55)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
