Recent activity

The geomagnetic field was quiet on September 29. Solar wind speed at SOHO ranged between 287 and 313 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 103.1 (decreasing 2.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 114.0. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 1.9). Three hour interval K indices: 00000012 (planetary), 01001212 (Boulder).

The background x-ray flux was at the class B2 level.

At the time of counting spots (see image time) spots were observed in 10 active regions in 2K resolution (SN: 150) and 5 active regions in 1K resolution (SN: 66) SDO images on the visible solar disk.

Region 11846 [S18W84] was quiet and stable.
Region 11850 [N10W60] developed slowly during the latter half of the day.
Region 11851 [S17W23] decayed slowly and quietly.
Region 11854 [N05E48] decayed slowly and quietly.

Spotted regions not numbered by SWPC:
S2710 [N16W05] was quiet and stable.
S2712 [S15W36] reemerged with penumbra spots.
S2718 [S21E27] reemerged with penumbra spots.
S2721 [S11E29] developed slowly and quietly.
New region S2723 [N02W75] emerged quickly late in the day.
New region S2724 [N07E02] emerged with a penumbra spot.

The only interesting event of the day was a large filament eruption from near the equator and well into the northwest quadrant between the two coronal holes on the visible disk. This event was recorded as a long duration C1.1 event peaking near 23h UTC and was associated with an increase in proton fluxes and a full halo CME

Coronal mass ejections (CMEs)

September 27-28: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
September 29: A large full halo CME was observed after a filament eruption late in the day.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH588) was in an Earth facing position on September 28.

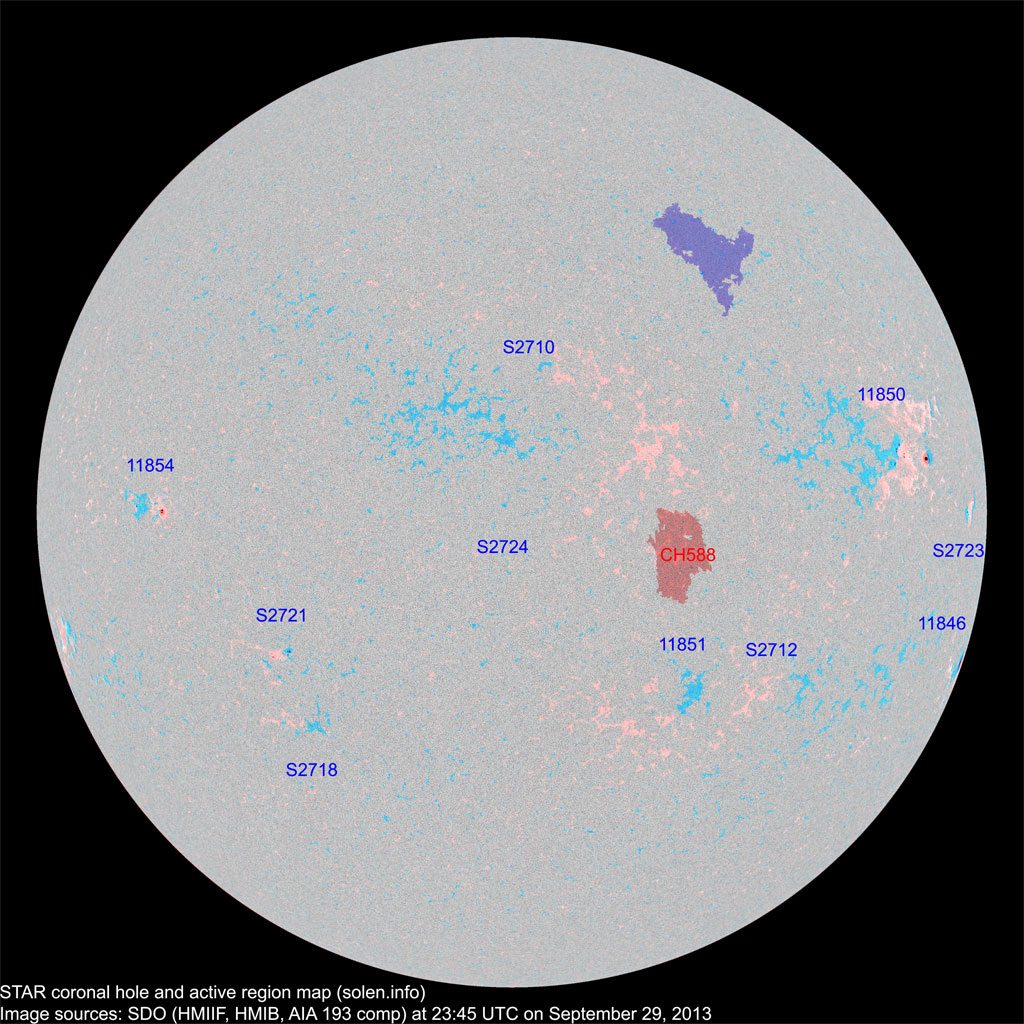

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on September 30. On October 1 there's a chance of unsettled intervals due to effects from CH588. The CME observed after the LDE on Sept.29 will likely arrive on October 2 and could cause unsettled to minor storm conditions.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

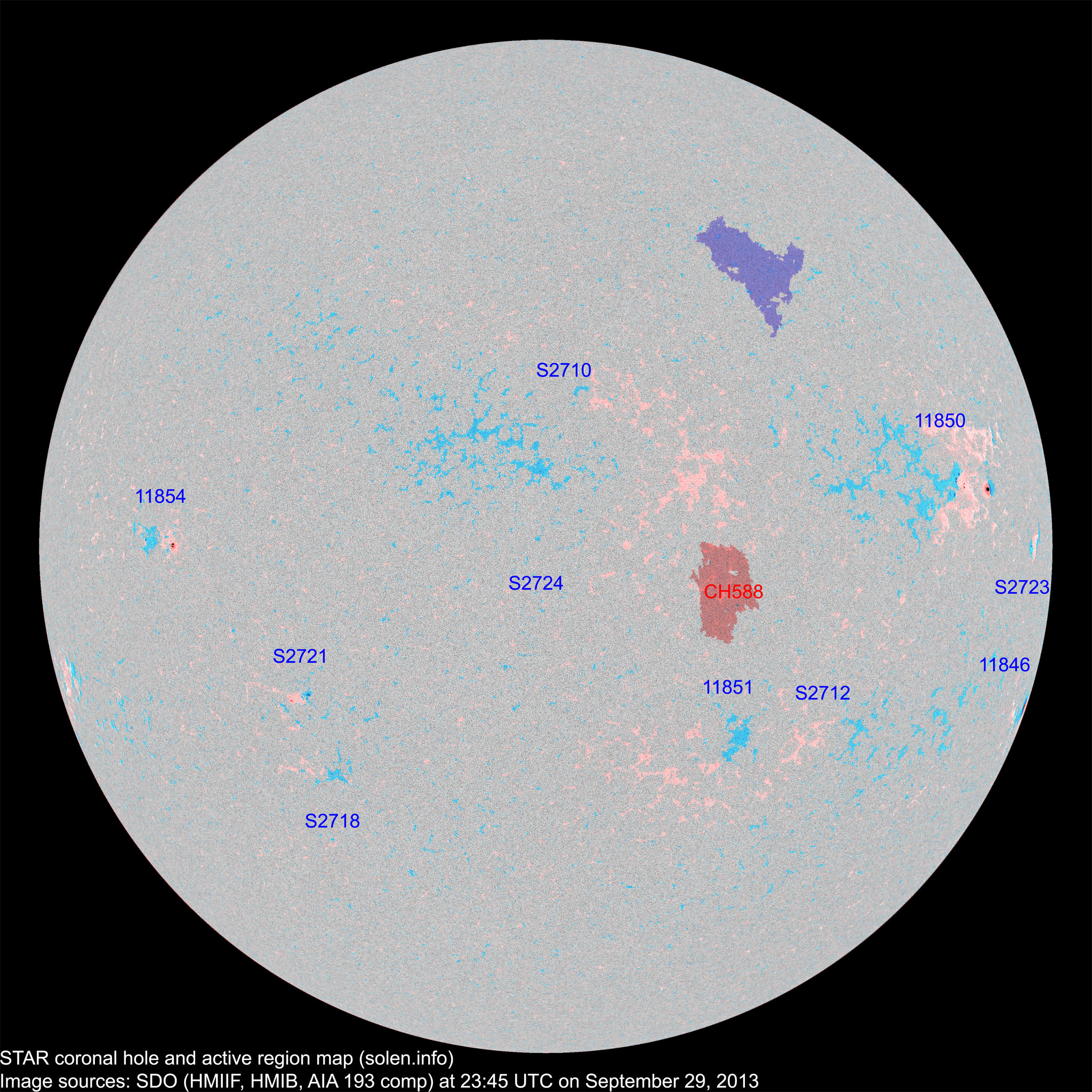

(Click on image for 2K resolution) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11846 2013.09.17 1 1 1 S17W84 0100 HSX HSX area: 0180

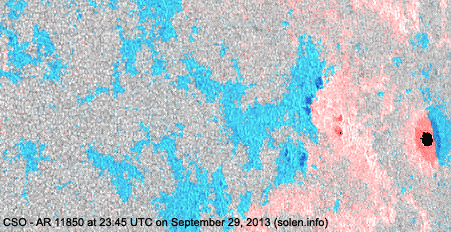

11850 2013.09.19 5 13 8 N10W60 0060 DSO CSO images/AR_11850_20130928_2345.png



11851 2013.09.22   6   S20W23 0007   AXX

location: S17W23

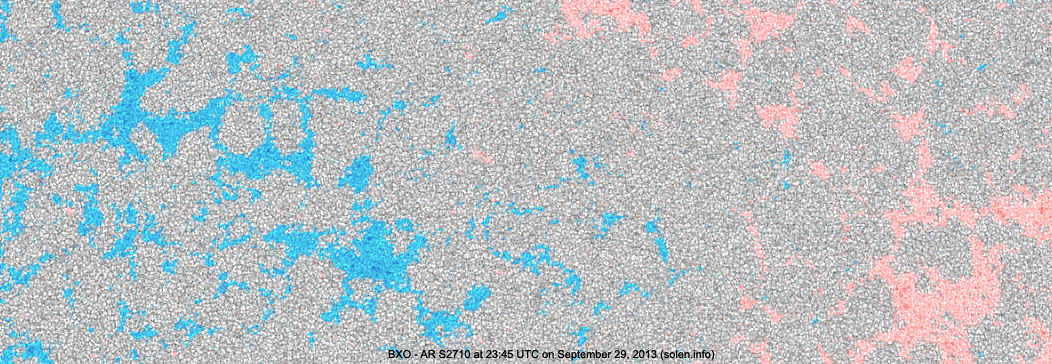

S2710 2013.09.24   11   N16W05 0014   BXO images/AR_S2710_20130928_2345.png
S2711 2013.09.24       S12W52           plage
S2712 2013.09.24   2   S15W36 0004   BXO
S2713 2013.09.24       S05W31           plage
S2716 2013.09.25       N03W59           plage
S2718 2013.09.26   3   S21E27 0005   AXX
11854 2013.09.27
2013.09.28
3 4 2 N06E51 0030 CAO CAO location: N05E48
S2720 2013.09.27       N10E10           plage
S2721 2013.09.28   7 3 S11E29 0025   CRO
S2722 2013.09.28       S01W43         plage
S2723 2013.09.29   2 2 N02W75 0009   BXO
S2724 2013.09.29   1   N07E02 0001   AXX
Total spot count: 9 50 16
Sunspot number: 39 150 66  (total spot count + 10 * number of spotted regions)
Weighted SN: 24 68 34  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 23 53 36 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.11 153.5 (cycle peak) 96.7 (cycle peak) 61.1 (+1.2) 5.55
2012.02 106.5 32.9 66.9 (+1.4)
likely cycle 24 max
8.81
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 58.9 (-2.8) 10.08
2012.07 133.9 66.5 57.8 (-1.1) 13.90
2012.08 115.4 63.0 58.2 (+0.4) 7.96
2012.09 122.9 61.4 58.1 (-0.1) 8.07
2012.10 123.3 53.3 58.6 (+0.5) 9.97
2012.11 121.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 40.8 59.6 (-0.1) 3.44
2013.01 127.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 38.0 58.4 (-0.3) 6.11
2013.03 111.3 57.9 (58.2 projected, -0.2) 10.56
2013.04 124.8 72.4 (57.9 projected, -0.3) 5.40
2013.05 131.4 78.7 (58.0 projected, +0.1) 9.73
2013.06 110.1 52.5 (58.3 projected, +0.3) 12.60
2013.07 115.5 57.0 (58.3 projected, 0.0) 9.47
2013.08 114.6 66.0 (58.2 projected, -0.1) 8.27
2013.09 102.5 (1) 53.7 (2A) / 55.6 (2B) / 38.1 (2C) (57.8 projected, -0.4) (5.42)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
