The geomagnetic field was quiet to unsettled on April 17. Solar wind speed at SOHO ranged between 343 and 445 km/s under the influence of a low speed coronal hole stream.
Solar flux at 20h UTC on 2.8 GHz was 178.9 (increasing 26.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 151.9. The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 9.9). Three hour interval K indices: 33212321 (planetary), 33213422 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time), spots were observed in 15 active regions in 2K resolution (SN: 403) and 12 active regions in 1K resolution (SN: 247) SDO images on the visible solar disk.
Region 12032 [N11W56] was quiet and stable.
Region 12033 [N12W43] was quiet and stable.
Region 12034 [N04W25] developed further and has major flare potential.
Region 12035 [S16W03] decayed early in the day, then displayed explosive
growth during the latter half of the day with new flux emerging in the central
sections. A major flare is possible.
Region 12036 [S17W26] decayed slowly and quietly.
Region 12037 [S09W28] decayed slowly and was quiet. As there is polarity
intermixing there is still a chance of a minor M class flare.
Region 12038 [S13E38] developed and is close to forming a magnetic delta
structure. A minor M class flare is possible.
Region 12039 [N24W16] redeveloped umbra on both polarities.
Region 12040 [N15W01] developed slowly and was quiet.
Region 12042 [N18E53] developed slowly and quietly. A minor M class flare is possible.
New region 12043 [S11W16] emerged on April 17 and decayed the next day as
it was numbered by SWPC.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3323 [S16E21] was quiet and stable.
S3330 [N13E33] gained trailing penumbra spots.
New region S3333 [S07W09] emerged early in the day with penumbra spots,
then decayed and had only a penumbra spot left by the end of the day.
New region S3334 [S34W35] emerged with a penumbra spot.
An interesting region is approaching the southeast limb and has displayed frequent flaring over the last day.
Update added at 14:45 UTC: AR 12036 produced a major M7.3 flare (as recorded by GOES-15, SDO/EVE had the flare peaking at M8.0) peaking at 13:03 UTC. This event was associated with an increase in proton levels at Earth and a halo CME (as observed by STEREO). The CME could reach Earth on April 20.
April 15-17: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A small trans equatorial coronal hole (CH612) rotated across the central meridian on April 16.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be mostly quiet on April 18-20. Weak effects from CH612 could cause unsettled intervals on April 19.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

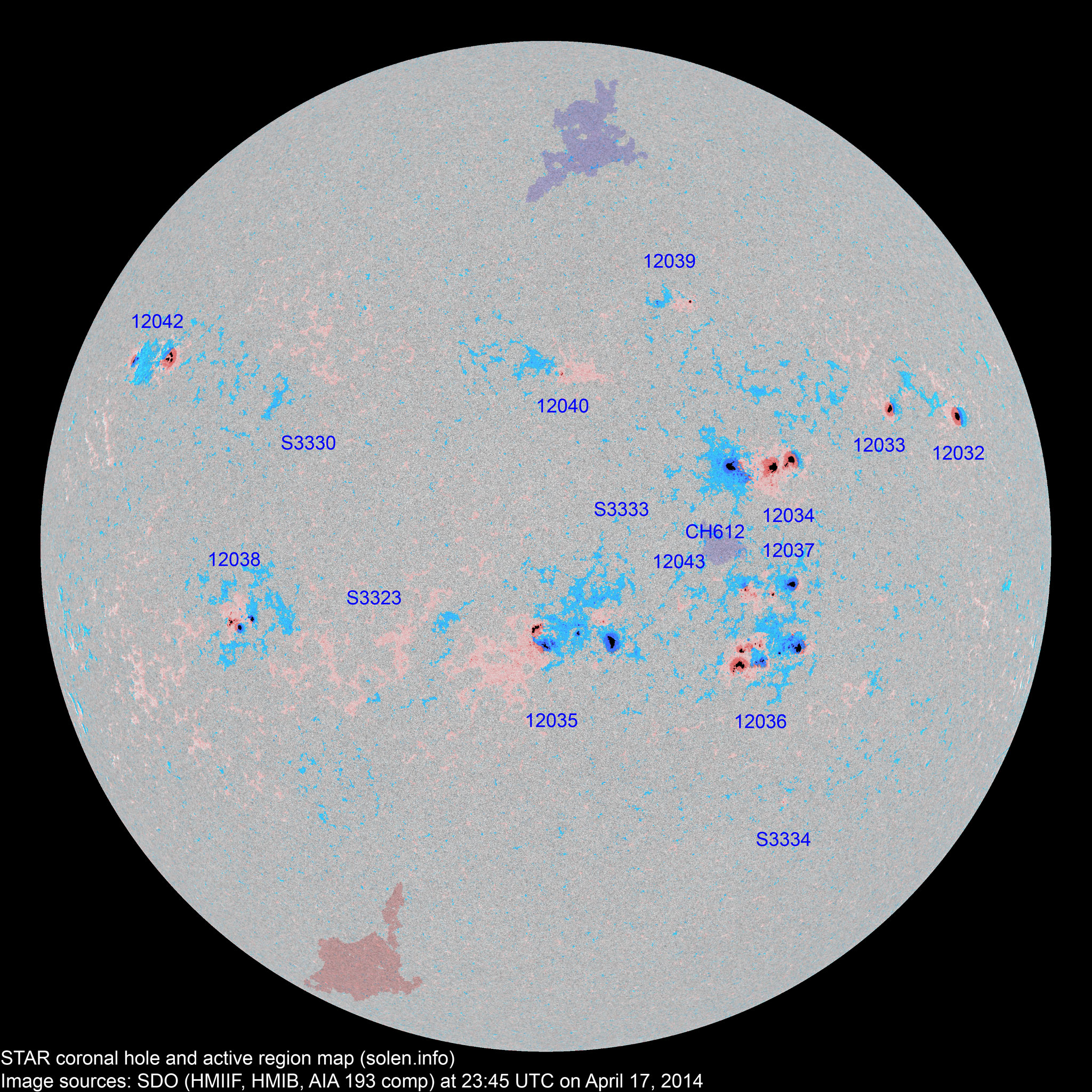

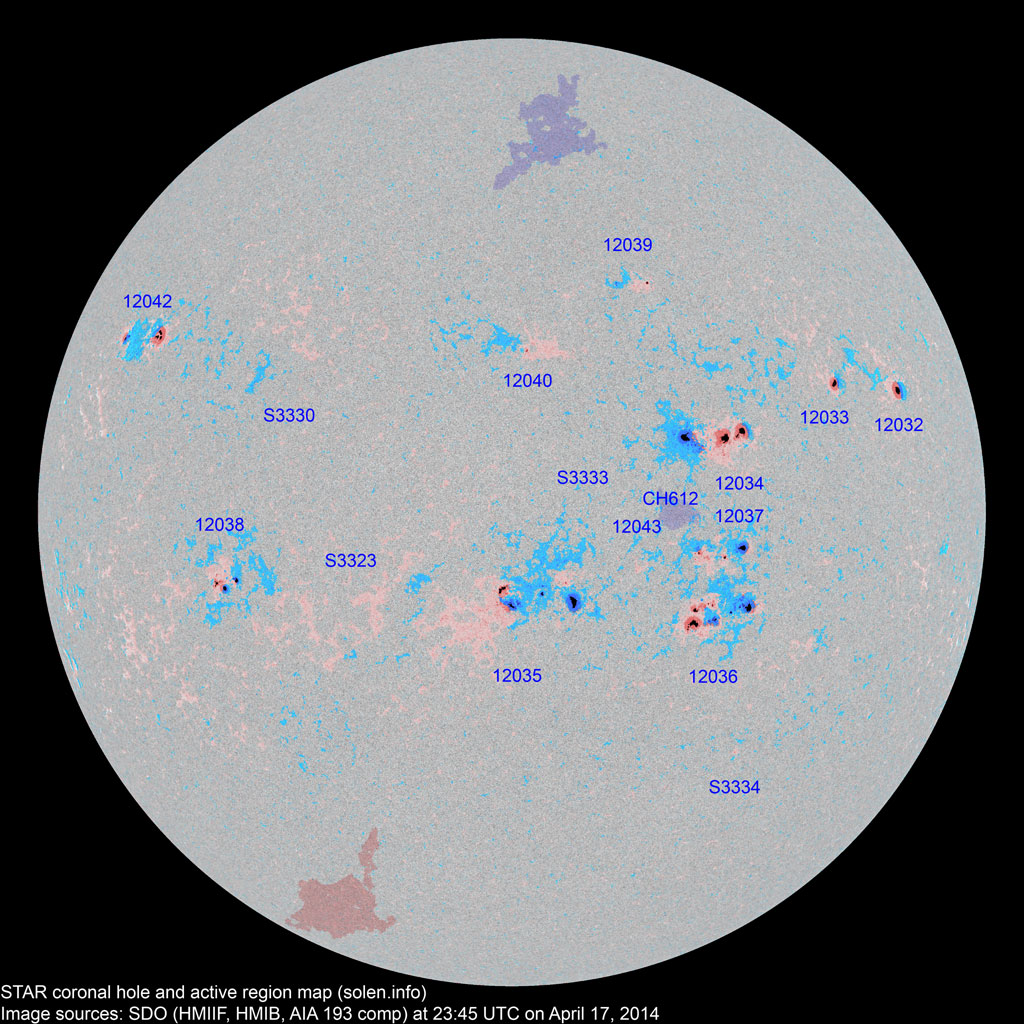

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
12032 | 2014.04.07 2014.04.08 |
1 | 1 | 1 | N13W57 | 0110 | HAX | HSX |
area: 0180 location: N11W56 |
||
12033 | 2014.04.09 | 1 | 8 | 1 | N13W45 | 0080 | HSX | HSX |
area: 0120 location: N12W43 |
||
12034 | 2014.04.10 | 40 | 46 | 29 | N05W26 | 0280 | DHC | EKC |
area: 0710 location: N04W25 |
||
12035 | 2014.04.10 2014.04.11 |
40 | 53 | 28 | S14W04 | 0240 | FSC | EKC |
beta-gamma-delta area: 0470 location: S16W03 |
||
12037 | 2014.04.12 2014.04.13 |
24 | 23 | 13 | S09W27 | 0110 | DAI | DAI |
beta-gamma area: 0180 |
||
12036 | 2014.04.12 2014.04.13 |
34 | 54 | 27 | S15W28 | 0510 | DHC | DAC |
beta-gamma area: 0460 location: S17W26 |
||
S3317 | 2014.04.13 | S09E24 | plage | ||||||||
12040 | 2014.04.13 2014.04.15 |
14 | 11 | 6 | N16W02 | 0010 | BXO | CRO |
area: 0025 location: N15W01 |
||
12038 | 2014.04.14 2014.04.15 |
6 | 17 | 7 | S13E37 | 0050 | CSO | DSC |
beta-gamma area: 0150 |
||
S3323 | 2014.04.14 | 7 | S16E21 | 0015 | BXO | ||||||
S3324 | 2014.04.14 | N14W25 | plage | ||||||||
12039 | 2014.04.15 | 5 | 5 | 3 | N25W17 | 0010 | BXO | DRO |
area: 0025 location: N24W16 |
||
12041 | 2014.04.15 2014.04.16 |
5 | S19W43 | 0010 | BXO | spotless | |||||
12042 | 2014.04.16 | 4 | 20 | 9 | N18E54 | 0240 | DSO | DKO | area: 0350 | ||
S3330 | 2014.04.16 | 4 | N13E38 | 0008 | BXO | ||||||
12043 | 2014.04.16 2014.04.17 |
2 | 2 | 2 | S11W17 | 0010 | BXO | BXO | area: 0008 | ||
S3333 | 2014.04.17 | 1 | S07W09 | 0002 | AXX | ||||||
S3334 | 2014.04.17 | 1 | 1 | S34W35 | 0005 | AXX | |||||
Total spot count: | 176 | 253 | 127 | ||||||||
Sunspot number: | 296 | 403 | 247 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 226 | 314 | 183 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 178 | 141 | 136 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) |
Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
---|---|---|---|---|---|
Measured | 1 AU | ||||
2013.01 | 127.1 | 123.1 | 62.9 | 58.7 (-0.9) | 4.69 |
2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
2013.10 | 132.1 | 131.2 | 85.6 | (74.9 projected, +1.8) | 7.71 |
2013.11 | 148.3 | 145.1 | 77.6 | (74.9 projected, -0.0) | 5.68 |
2013.12 | 147.7 | 143.1 | 90.3 | (74.4 projected, -0.5) | 4.68 |
2014.01 | 157.4 | 152.4 | 82.0 | (74.3 projected, -0.1) | 5.44 |
2014.02 | 170.3 (cycle peak) |
166.3 | 102.8 (cycle peak) | (73.7 projected, -0.6) | 10.70 |
2014.03 | 149.9 | 148.5 | 92.2 | (73.8 projected, +0.1) | 4.88 |
2014.04 | 147.9 (1) | 74.8 (2A) / 132.1 (2B) / 107.9 (2C) | (73.0 projected, -0.8) | (6.9) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
