Last major update issued on January 1, 2015 at 06:50 UTC.
[Solar and geomagnetic data - last month (updated
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update January 1, 2015)] [Cycle 24 progress (last update January 1, 2015) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update January 1, 2015)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update January 1, 2015)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update December 3, 2014)]
[Noon SDO sunspot count 1K Reference: 4K (large file) (updated daily)]
[POES auroral activity level October
2009 - December 2012]
[Solar polar fields vs solar cycles - updated December 27, 2014]
[Presentations: 3rd SSN Workshop, Tucson, 2013 (pdf) / 4th SSN Workshop, Locarno, 2014]
The geomagnetic field was quiet to unsettled on December 31. Solar wind speed at SOHO ranged between 459 and 565 km/s.
Solar flux at 20h UTC on 2.8 GHz was 133.6 (decreasing 18.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 152.8. The Potsdam WDC planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 8.1). Three hour interval K indices: 22222322 (planetary), 13113322 (Boulder).
The background x-ray flux is at the class B5 level.
At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 186) and 9 active regions using 1K resolution (SN: 138) SDO images on the visible solar disk.
Region 12246 [N17W54] was quiet and stable.
Region 12247 [S25W46] decayed slowly and quietly.

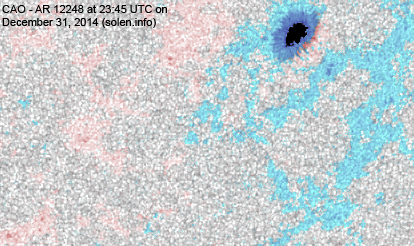

Region 12248 [S20W27] decayed slowly and quietly.

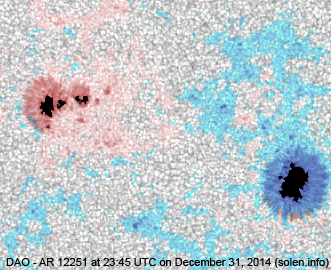

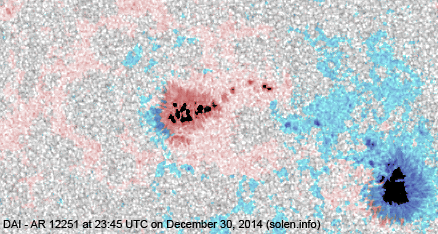

Region 12251 [S14E06] decayed slowly and was mostly quiet.
Region 12252 [S20E27] was quiet and stable.
Region 12253 [S06E50] developed further and is a compact region with some polarity intermixing. C and minor M class flares are possible.
New region 12254 [S22E08] emerged with a few spots.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4114 [N09E32] was quiet and stable.
New region S4120 [S09W18] emerged with penumbra spots.
New region S4121 [N08W36] emerged with penumbra spots.
C2+ flares (GOES):
|Magnitude||Peak time (UTC)||Location||AR||Comment|
December 29-31: No obviously Earth directed CMEs were observed in LASCO imagery.
[Coronal hole history (since October
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

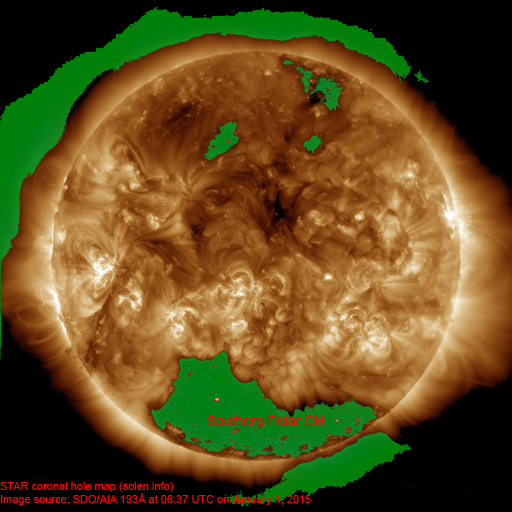

No obvious coronal holes are currently in or near Earth facing positions. A corotating interaction region could be associated with the large southern hemisphere coronal hole. In that case the CIR will be in an Earth facing position on January 1-2.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be mostly quiet on January 1-3.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

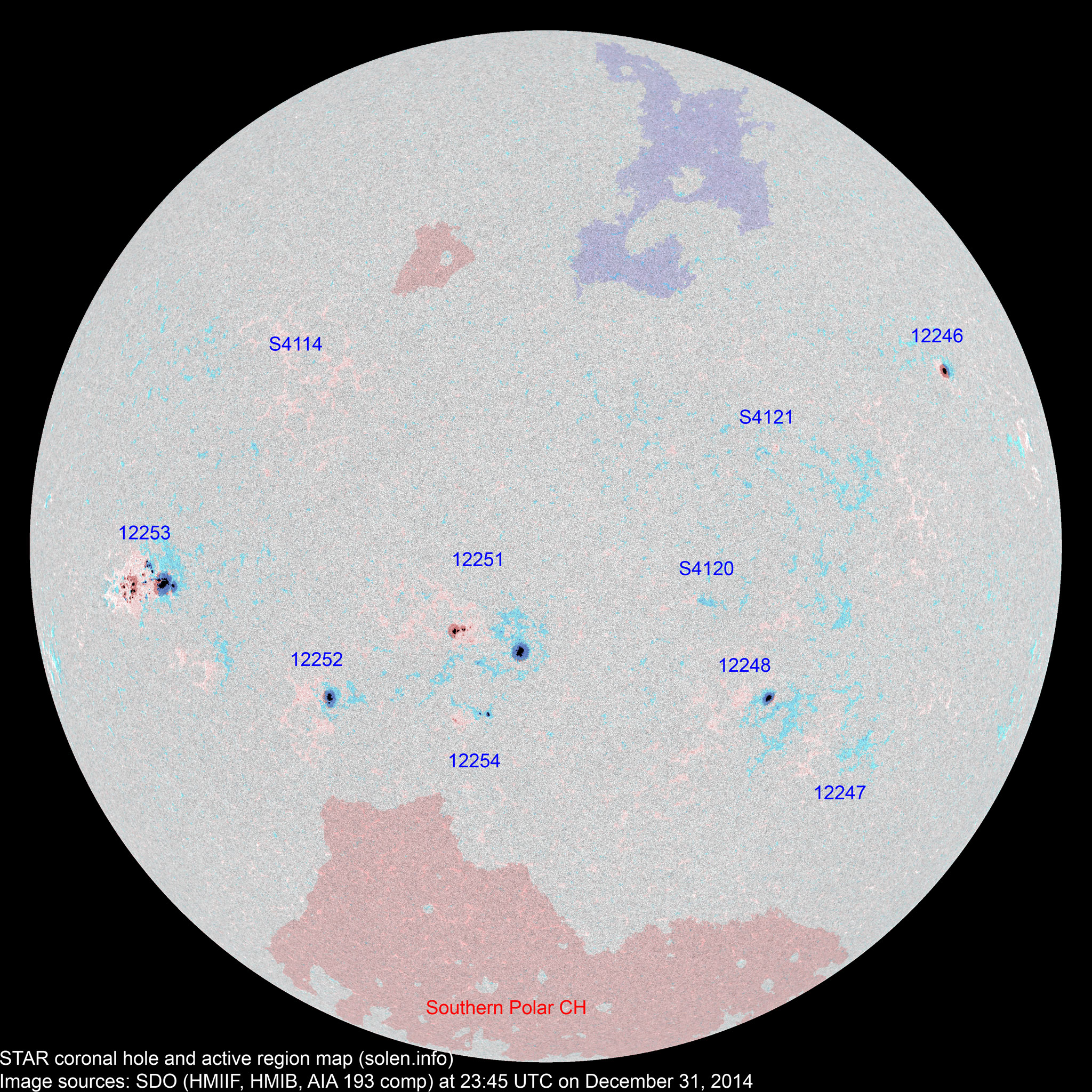

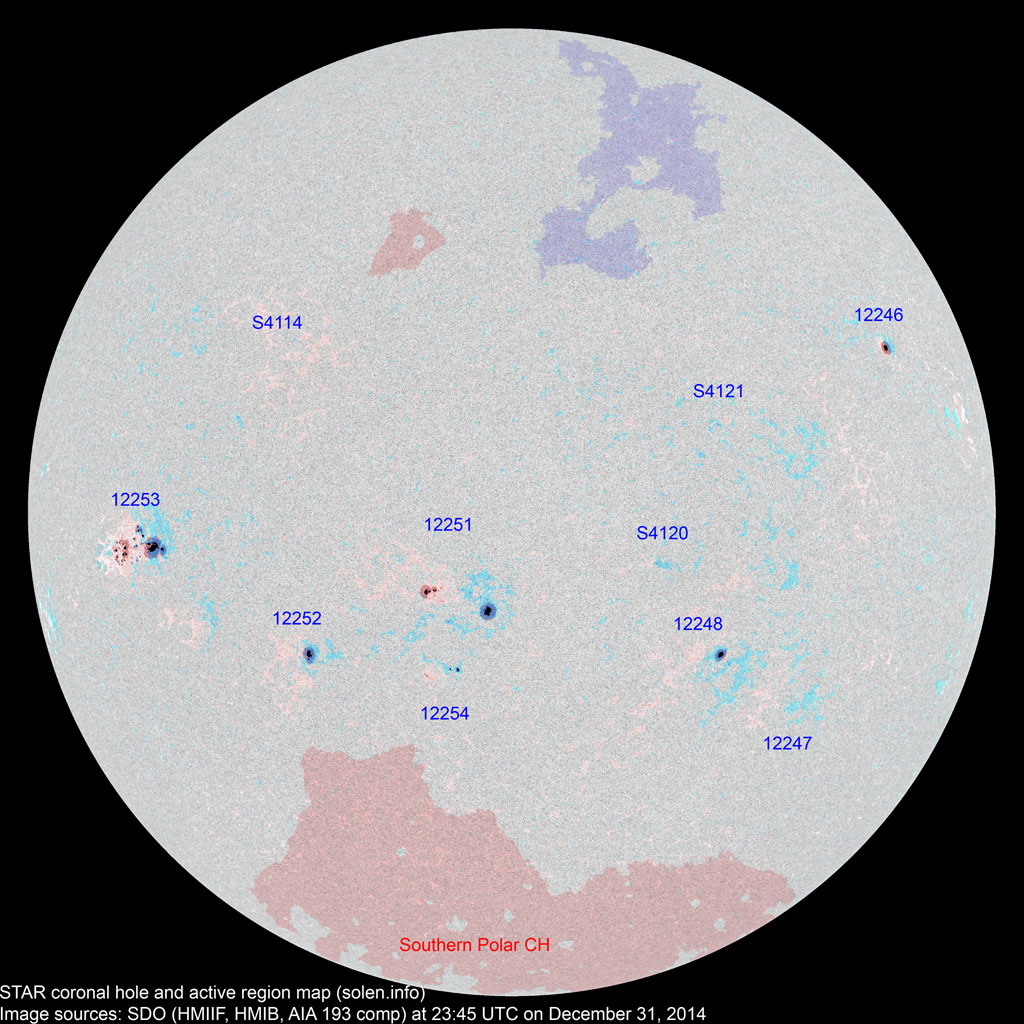

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
real location: S25W46
|Total spot count:||34||86||48|
|Sunspot number:||94||186||138||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||64||119||81||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||56||65||76||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number||Average ap
|166.3||102.3 (cycle peak)||78.4 (+1.1)||10.70|
(likely solar max)
|2014.07||137.4||141.8||72.5||(78.6 projected, -1.1)||4.50|
|2014.08||124.7||127.9||74.7||(76.2 projected, -2.4)||7.71|
|2014.09||146.6||148.1||87.6||(73.0 projected, -3.2)||9.78|
|2014.10||153.4||152.9||60.6||(70.5 projected, -2.5)||8.96|
|2014.11||154.8||151.4||70.1||(68.8 projected, -1.7)||9.33|
|2014.12||158.7||153.8||78.0||(67.7 projected, -1.1)||10.8|
|2015.01||(1)||(2A/2B) / 88.6 (2C)||(66.5 projected, -1.2)||()|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
