The geomagnetic field was quiet to unsettled on February 6. Solar wind speed at SOHO ranged between 339 and 440 km/s.
Solar flux at 20h UTC on 2.8 GHz was 191.3 (increasing 16.2 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 149.5. The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.8). Three hour interval K indices: 23222212 (planetary), 12233312 (Boulder).
The background x-ray flux is at the class C1 level.
At the time of counting spots (see image time) spots were observed in 12 active regions in 2K resolution (SN: 351) and 10 active regions in 1K resolution (SN: 215) SDO images on the visible solar disk.
Region 11967 [S12W48] decayed slowly and displayed
less activity. There is still a strong magnetic delta structure in the largest
penumbral structure and a major flare is possible.
C5+ flare: M1.5 at 23:05 UTC.
Region 11968 [N11W47] decayed slowly and
could produce C and M class flares.
C5+ flares: C5.4 at 00:38, C7.0/1F at 04:31 UTC.
Region 11970 [S17E01] decayed slowly and quietly.
Region 11971 [S13E28] appears to be maturing and was quiet.
Region 11972 [S12W23] developed slowly and produced a small C class flare.
Region 11973 [N06E51] was quiet and stable.
Region 11974 [S10E61] was quiet and stable.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3079 [S09W35] was quiet and stable.
S3088 [S11W28] was quiet and stable.
S3090 [N08E03] was quiet and stable.
S3092 [S07E33] was quiet and stable.
New region S3098 [S12E68] was split off from AR
11974. The region has weak polarity intermixing.
February 4-6: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A recurrent trans equatorial coronal hole (CH602) was in an Earth facing position on February 5-6.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on February 7. On February 8-9 quiet to active conditions are possible due to effects from CH602.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

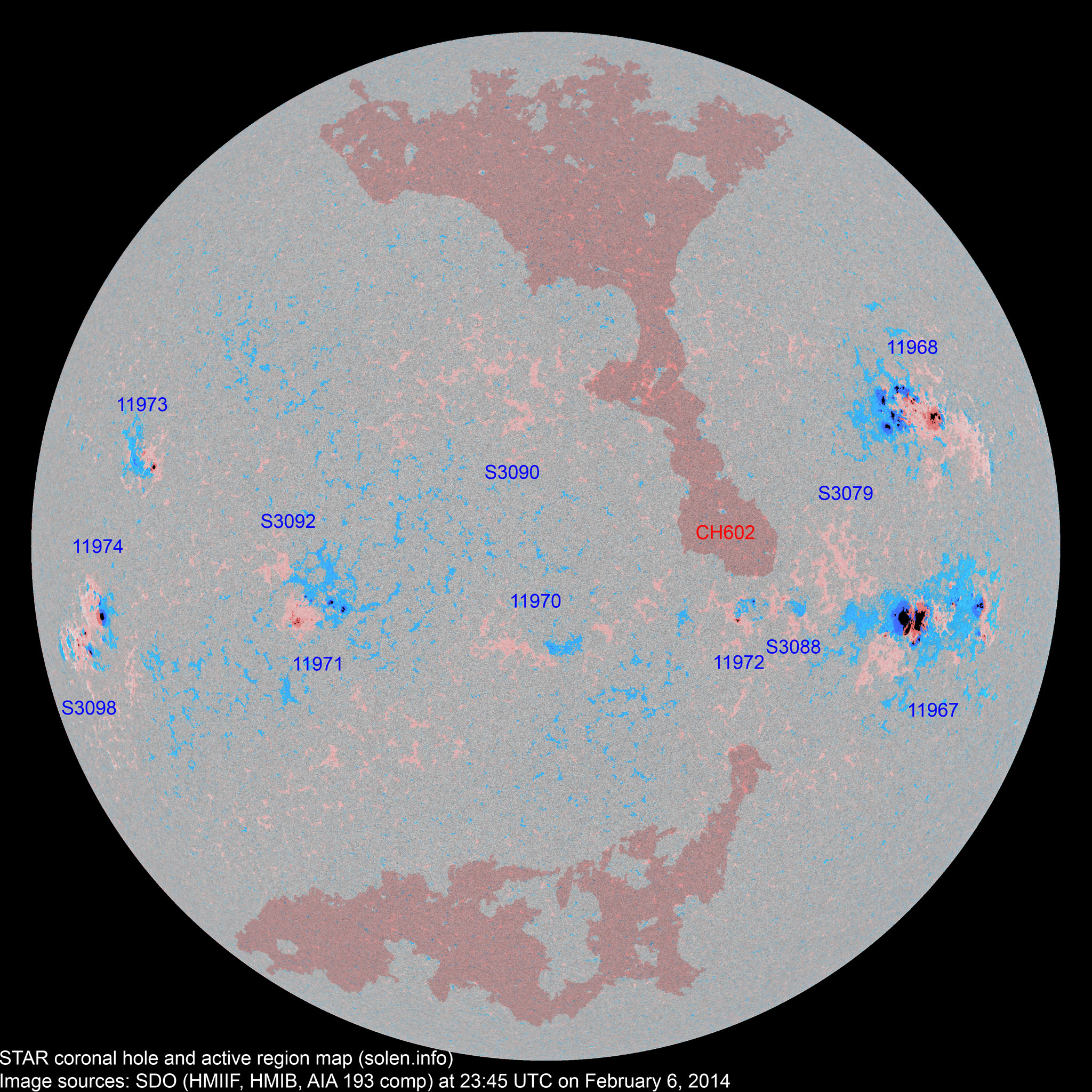

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 11967 | 2014.01.26 2014.01.27 |
51 | 59 | 33 | S13W51 | 1570 | FKC | FKC |
 |
 |
beta-gamma-delta area: 1320 location: S12W48
|
| 11968 | 2014.01.27 | 57 | 66 | 31 | N09W48 | 0740 | EKC | EKC |
 |
 |
beta-gamma-delta area: 0930 location: N11W47 |
| S3073 | 2014.01.28 | N18W50 | plage | ||||||||
| S3075 | 2014.01.29 | S12W22 | plage | ||||||||
| S3079 | 2014.01.31 | 7 | 2 | S09W35 | 0018 | BXO |
 |
 |
|||
| 11970 | 2014.02.01 2014.02.02 |
4 | 7 | 2 | S17W02 | 0010 | AXX | BXO |
 |
 |
|
| S3082 | 2014.02.01 | N07E10 | plage | ||||||||
| S3084 | 2014.02.02 | S17W08 |
 |
plage | |||||||
| 11972 | 2014.02.02 2014.02.05 |
2 | 6 | 3 | S12W31 | 0010 | BXO | DRO |
 |
 |
on February 5 the SWPC location was S13W10 actual location:S12W23 area: 0030 |
| S3086 | 2014.02.02 | N09W37 | plage | ||||||||
| S3087 | 2014.02.02 | S28W44 | plage | ||||||||
| S3088 | 2014.02.03 | 5 | 4 | S11W28 | 0020 | BXO |
 |
 |
|||
| 11971 | 2014.02.03 2014.02.04 |
20 | 31 | 16 | S12E26 | 0100 | DSO | DAI |
 |
 |
|
| S3090 | 2014.02.03 | 3 | N08E03 | 0007 | AXX |
 |
 |
||||
| S3091 | 2014.02.04 | N04W50 |
 |
plage | |||||||
| S3092 | 2014.02.04 | 1 | S07E33 | 0002 | AXX |
 |
 |
||||
| 11973 | 2014.02.04 2014.02.05 |
6 | 15 | 8 | N06E51 | 0030 | CRO | CAO |
 |
 |
area: 0060 |
| 11974 | 2014.02.04 2014.02.05 |
13 | 11 | 6 | S12E62 | 0170 | DSO | CSO |
 |
 |
location: S10E61 see AR S3098 |
| S3096 | 2014.02.05 | N15E53 |
 |
plage | |||||||
| S3098 | 2014.02.06 | 20 | 10 | S12E68 | 0100 | DAI |
 |
split off from AR 11974 | |||
| Total spot count: | 153 | 231 | 115 | ||||||||
| Sunspot number: | 223 | 351 | 215 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 186 | 274 | 158 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 134 | 123 | 118 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2011.11 | 153.5 | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 | |
| 2012.02 | 106.5 | 32.9 | 66.9 (+1.4) | 8.81 | |
| 2012.11 | 121.3 | 118.3 | 61.8 | 59.7 (+1.1) | 7.08 |
| 2012.12 | 108.6 | 105.0 | 40.8 | 59.6 (-0.1) | 3.44 |
| 2013.01 | 127.1 | 123.1 | 62.9 | 58.7 (-0.9) | 4.69 |
| 2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | (67.8 projected, +2.3) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | (69.6 projected, +1.8) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | (69.3 projected, -0.3) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | (67.5 projected, -1.8) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | (66.7 projected, -0.8) | 4.68 |
| 2014.01 | 157.4 (cycle peak) |
152.4 | 82.0 | (66.9 projected, +0.2) | 5.4 |
| 2014.02 | 188.0 (1) | 39.9 (2A) / 186.3 (2B) / 103.8 (2C) | (65.9 projected, -1.0) | (4.3) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
