The geomagnetic field was very quiet on July 1. Solar wind speed at SOHO ranged between 282 and 342 km/s.
Solar flux at 20h UTC on 2.8 GHz was 151.8 (increasing 46.4 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 134.3. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.6). Three hour interval K indices: 11100010 (planetary), 22111221 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time), spots were observed in 18 active regions using 2K resolution (SN: 365) and 16 active regions using 1K resolution (SN: 267) SDO images on the visible solar disk.
Region 12096 [N09W52] decayed quickly and was quiet.
Region 12097 [N12W43] decayed slowly and quietly.
Region 12100 [N10W00] gained a few spots and was mostly quiet.
Region 12102 [N13E32] developed slowly and quietly.
Region 12103 [S12E16] was quiet and stable.
Region 12104 [S10E39] developed a stronger magnetic delta centrally and
remains capable of producing a major flare.
Region 12105 [S06W01] decayed slowly and quietly.
Region 12106 [N15E48] developed further and could produce C and minor M
class flares.
Region 12107 [S20E49] was mostly unchanged and has a magnetic delta
structure in the southwestern penumbra. An M class flare is possible.
New region 12108 [S08E69] rotated into view on June 30 and was numbered
the next day by SWPC.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3599 [N04E29] was quiet and stable.
New region S3601 [S29W46] emerged quickly early in
the day, then decayed slowly.
New region S3602 [S19W17] emerged with penumbra spots.
New region S3603 [N06E04] emerged early in the day and decayed slowly
late in the day.
New region S3604 [S10W23] emerged with a penumbra spot.
New region S3605 [N05W18] was observed with a penumbra spot.
New region S3606 [S09E84] rotated paritally into
view with a large spot.
| Magnitude | Peak time (UTC) | Location | AR |
| C4.8 (LDE) | 06:08 | N15E64 | 12106 |
| C6.6 (LDE) | 07:37 | S19E64 | 12107 |
| C2.1 | 09:11 | ||
| C6.0/1N | 10:15 | N15E58 | 12106 |
| M1.4 (LDE) | 11:23 | 12106 |
June 29 - July 1: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A trans equatorial coronal hole (CH625) was in an Earth facing position on June 30-July 1. Another small trans equatorial coronal hole (CH626) could rotate into an Earth facing position on July 5.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on July 2-4. On July 3-4 there is a chance of unsettled intervals if a stream from CH625 becomes geoeffective.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

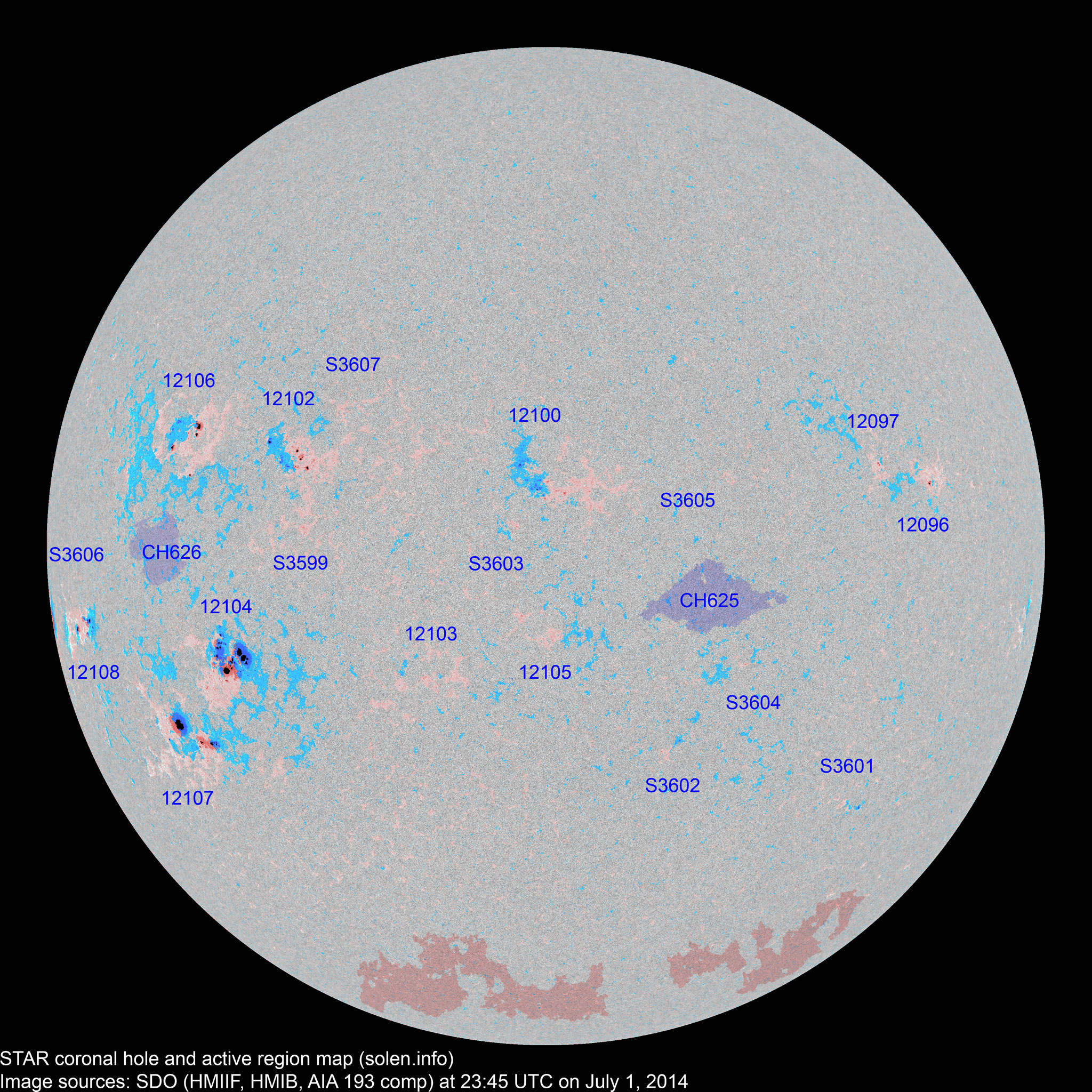

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12096 | 2014.06.21 2014.06.22 |
1 | 2 | 1 | N09W51 | 0010 | HSX | HRX |
 |
 |
|
| 12097 | 2014.06.22 | 3 | 3 | 3 | N12W44 | 0010 | HSX | HRX |
 |
 |
|
| 12098 | 2014.06.23 2014.06.24 |
S09W77 | plage | ||||||||
| 12100 | 2014.06.25 2014.06.27 |
11 | 32 | 16 | N09W02 | 0020 | DAI | DRI |
 |
 |
location: N10W00 |
| S3579 | 2014.06.26 | S10W17 | plage | ||||||||
| 12099 | 2014.06.26 2014.06.27 |
S16W61 | plage | ||||||||
| 12101 | 2014.06.26 2014.06.27 |
S07W75 | plage | ||||||||
| 12103 | 2014.06.26 2014.06.28 |
2 | 2 | S10E10 | 0006 | BXO |
 |
 |
location: S12E16 | ||
| S3583 | 2014.06.27 | N00E19 | plage | ||||||||
| 12102 | 2014.06.27 2014.06.28 |
8 | 27 | 17 | N13E30 | 0050 | DSI | DAI |
 |
 |
location: N13E32 area: 0090 |
| 12104 | 2014.06.28 | 16 | 43 | 26 | S11E39 | 0410 | DKC | DKC |
 |
 |
beta-gamma-delta area: 0870 |
| S3587 | 2014.06.28 | S23W19 | plage | ||||||||
| 12107 | 2014.06.28 2014.06.29 |
8 | 24 | 12 | S20E46 | 0260 | DHC | DHC |
 |
 |
area: 0460 location: S20E49 |
| S3590 | 2014.06.28 | S23E36 | plage | ||||||||
| S3591 | 2014.06.28 | S12E18 | plage | ||||||||
| S3592 | 2014.06.28 | S11W18 | plage | ||||||||
| 12105 | 2014.06.28 2014.06.29 |
3 | 5 | 3 | S06W04 | 0010 | BXO | BXO |
 |
 |
locaton:S06W01 |
| 12106 | 2014.06.29 | 9 | 20 | 11 | N15E46 | 0050 | DAO | DAI |
 |
 |
area: 0090 |
| S3595 | 2014.06.29 | N17W53 | plage | ||||||||
| S3596 | 2014.06.29 | N08W58 | plage | ||||||||
| S3597 | 2014.06.30 | S26W18 |
 |
plage | |||||||
| 12108 | 2014.06.30 2014.07.01 |
5 | 12 | 7 | S08E68 | 0030 | DAO | DAI |
 |
 |
area: 0090 |
| S3599 | 2014.06.30 | 4 | 2 | N04E29 | 0015 | BXO |
 |
 |
|||
| S3600 | 2014.06.30 | S31W19 |
 |
plage | |||||||
| S3601 | 2014.07.01 | 1 | 1 | S29W46 | 0007 | HRX |
 |
||||
| S3602 | 2014.07.01 | 4 | 3 | S19W17 | 0010 | BXO |
 |
||||
| S3603 | 2014.07.01 | 2 | 1 | N06E04 | 0004 | AXX |
 |
||||
| S3604 | 2014.07.01 | 1 | 1 | S10W23 | 0004 | AXX |
 |
||||
| S3605 | 2014.07.01 | 1 | N05W18 | 0001 | AXX |
 |
|||||
| S3606 | 2014.07.01 | 1 | 1 | S09E84 | 0350 | HHX |
 |
||||
| S3607 | 2014.07.01 | 1 | N19E26 | 0001 | AXX |
 |
|||||
| Total spot count: | 64 | 185 | 107 | ||||||||
| Sunspot number: | 154 | 365 | 267 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 114 | 242 | 164 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 92 | 128 | 147 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 82.0 | (76.9 projected, +0.9) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.8 (cycle peak) | (76.7 projected, -0.2) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 92.2 | (77.1 projected, +0.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | (76.2 projected, -0.9) | 7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | (73.7 projected, -2.5) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (71.0 projected, -2.7) | 6.7 |
| 2014.07 | 151.8 (1) | 5.0 (2A) / 154 (2B) / 82.6 (2C) | (68.3 projected, -2.7) | (2.6) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
