The geomagnetic field was quiet to unsettled on July 9. Solar wind speed at SOHO ranged between 314 and 363 km/s under the influence of a low speed stream from CH626.
Solar flux at 20h UTC on 2.8 GHz was 198.4 (increasing 23.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 139.2. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.8). Three hour interval K indices: 21211233 (planetary), 21322333 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time), spots were observed in 12 active regions using 2K resolution (SN: 317) and 12 active regions using 1K resolution (SN: 223) SDO images on the visible solar disk.
Region 12104 [S12W67] decayed slowly and quietly.
Region 12106 [N15W61] decayed slowly and quietly.
Region 12107 [S19W53] was mostly quiet and stable.
Region 12108 [S07W39] decayed slowly and was quiet. An M class flare is
possible.
Region 12109 [S08W19] decayed in the trailing spot section and was mostly
quiet. An M class flare is
still possible.
Region 12111 [N06W02] developed slowly and quietly.
Region 12113 [N08E37] decayed slowly after the M1 flare. There is still
polarity intermixing.
Region 12114 [S20E53] decayed slowly and was mostly quiet.
Region 12115 [N08W52] decayed slowly and quietly.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3618 [N18E01] was quiet and stable.
S3622 [S22W02] was quiet and stable.
S3630 [S29E58] was quiet and stable.
| Magnitude | Peak time (UTC) | Location | AR |
| M1.2 | 00:26 | 12113 | |
| C3.1 | 03:11 | 12113 | |
| C2.2/1F | 04:11 | S06W08 | 12109 |
| C2.7 | 05:46 | N11E48 | 12113 |
| C5.0 | 18:39 | S15W65 | 12104 |
July 7-8: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
July 9: A partial halo CME was observed after the M1 flare in AR 12113.
There is a minor chance that a weak extension could reach Earth on July 12.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A trans equatorial coronal hole (CH626) was in an Earth facing position on July 5.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on July 10 due to weak effects from CH626. On July 11-12 quiet conditions are likely.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

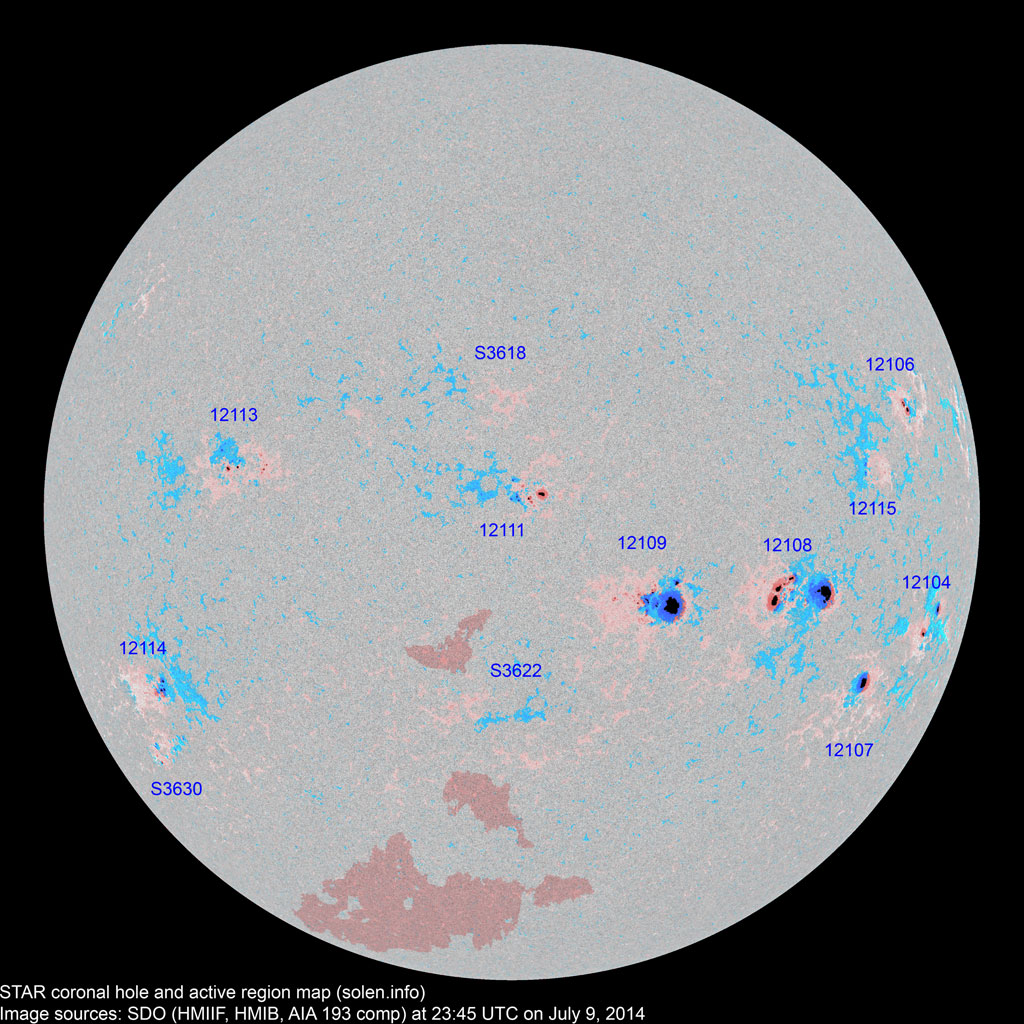

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12102 | 2014.06.27 2014.06.28 |
N11W79 | plage | ||||||||
| 12104 | 2014.06.28 | 5 | 2 | 2 | S12W67 | 0130 | DSO | DSO |
 |
 |
|
| 12107 | 2014.06.28 2014.06.29 |
2 | 5 | 2 | S20W53 | 0220 | HSX | CHO |
 |
 |
area: 0250 |
| 12106 | 2014.06.29 | 3 | 8 | 2 | N14W62 | 0120 | CAO | CAO |
 |
 |
|
| 12108 | 2014.06.30 2014.07.01 |
22 | 38 | 22 | S07W39 | 0830 | EKC | EKC |
 |
 |
beta-gamma-delta |
| 12109 | 2014.07.01 2014.07.02 |
27 | 42 | 24 | S08W17 | 0620 | EKI | DKC |
 |
 |
beta-gamma area: 0850 |
| 12110 | 2014.07.02 2014.07.03 |
S15W33 |
 |
plage | |||||||
| S3609 | 2014.07.02 | S14W54 |
 |
plage | |||||||
| 12111 | 2014.07.03 2014.07.04 |
5 | 24 | 13 | N06W02 | 0070 | DSO | DSI |
 |
 |
area: 0130 |
| S3614 | 2014.07.04 | N06E08 | plage | ||||||||
| S3618 | 2014.07.05 | 6 | 4 | N18E01 | 0015 | AXX |
 |
 |
|||
| 12113 | 2014.07.06 | 17 | 22 | 12 | N09E35 | 0060 | DAI | DAI |
 |
 |
location: N08E37 |
| 12115 | 2014.07.06 2014.07.08 |
6 | 11 | 6 | N08W53 | 0040 | DAO | CRO |
 |
 |
|
| S3622 | 2014.07.06 | 12 | 3 | S22W02 | 0020 | BXO | images/AR_S3622_20140709_2345.png |
 |
|||
| S3623 | 2014.07.06 | S18W13 | plage | ||||||||
| S3624 | 2014.07.06 | N47W48 | plage | ||||||||
| S3627 | 2014.07.06 | N10W42 | plage | ||||||||
| 12114 | 2014.07.07 2014.07.08 |
6 | 16 | 7 | S20E52 | 0140 | DAI | CAO |
 |
 |
|
| S3629 | 2014.07.07 | S07W53 | plage | ||||||||
| S3630 | 2014.07.08 | 11 | 6 | S29E58 | 0030 | CRO |
 |
 |
|||
| S3631 | 2014.07.08 | S15E49 |
 |
plage | |||||||
| S3632 | 2014.07.08 | S16E15 |
 |
plage | |||||||
| S3633 | 2014.07.08 | N15E20 |
 |
plage | |||||||
| Total spot count: | 93 | 197 | 103 | ||||||||
| Sunspot number: | 183 | 317 | 223 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 148 | 258 | 164 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 110 | 111 | 123 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
| 2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
| 2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
| 2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
| 2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | (78.2 projected, +2.2) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | (79.7 projected, +1.5) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | (80.5 projected, +0.8) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | (79.7 projected, -0.8) | 7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | (77.1 projected, -2.6) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (74.5 projected, -2.6) | 6.72 |
| 2014.07 | 186.5 (1) | 57.0 (2A) / 196.4 (2B) / 99.9 (2C) | (71.5 projected, -3.0) | (4.7) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
