The geomagnetic field was quiet to unsettled on November 8. Solar wind speed at SOHO ranged between 440 and 546 km/s.
Solar flux at 20h UTC on 2.8 GHz was 132.0 (increasing 21.2 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 141.8. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.6). Three hour interval K indices: 11122213 (planetary), 11232323 (Boulder).
The background x-ray flux is at the class B7 level.
At the time of counting spots (see image time), spots were observed in 14 active regions using 2K resolution (SN: 271) and 10 active regions using 1K resolution (SN: 164) SDO images on the visible solar disk.
Region 12201 [S05W62] decayed slowly and was mostly
quiet.
Region 12203 [N13W87] was quiet and stable.
Region 12204 [N04W44] decayed slowly and quietly.
Region 12205 [N13E18] still has multiple magnetic deltas, the largest one
is strong with poor separation between opposite polarity umbrae. Another X class
flare is possible.
Region 12206 [S15W03] decayed slowly and quietly.
New region 12207 [S09E67] rotated into view on November 7 and was
numbered by SWPC the next day.
Spotted regions not numbered (or interpreted
differently) by SWPC:
S3963 [S23E20] gained a few spots and was quiet.
S3964 [S14E09] developed slowly and quietly.
S3973 [N19E48] was quiet and stable.
New region S3975 [N16W74] emerged quickly with several spots.
New region S3976 [S11E87] rotated partly into view. This region could
produce C and perhaps M class flares.
New region S3977 [S13E40] was observed with penumbra spots.
New region S3978 [N25E38] emerged with a tiny penumbra spot.
New region S3979 [N15W27] was observed with a penumbra spot.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| C3.6 | 15:57 | N14E27 | 12205 | |
| C4.4 (LDE) | 17:55 | N15E21 | 12205 | |
| C2.2 | 18:59 | S06W57 | 12201 |
November 6: A partial halo CME was observed after the M5.4 LDE in AR
12205.
November 7: At least a partial halo CME was observed in association with
the X1.6 LDE in AR 12205.
November 8: No obviously Earth directed CMEs were observed in LASCO
imagery.
[Coronal hole
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
No obvious coronal holes are currently in or near Earth facing positions.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on November 9-11 with a possibility of active intervals should any of the CMEs observed on November 6-7 reach Earth.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

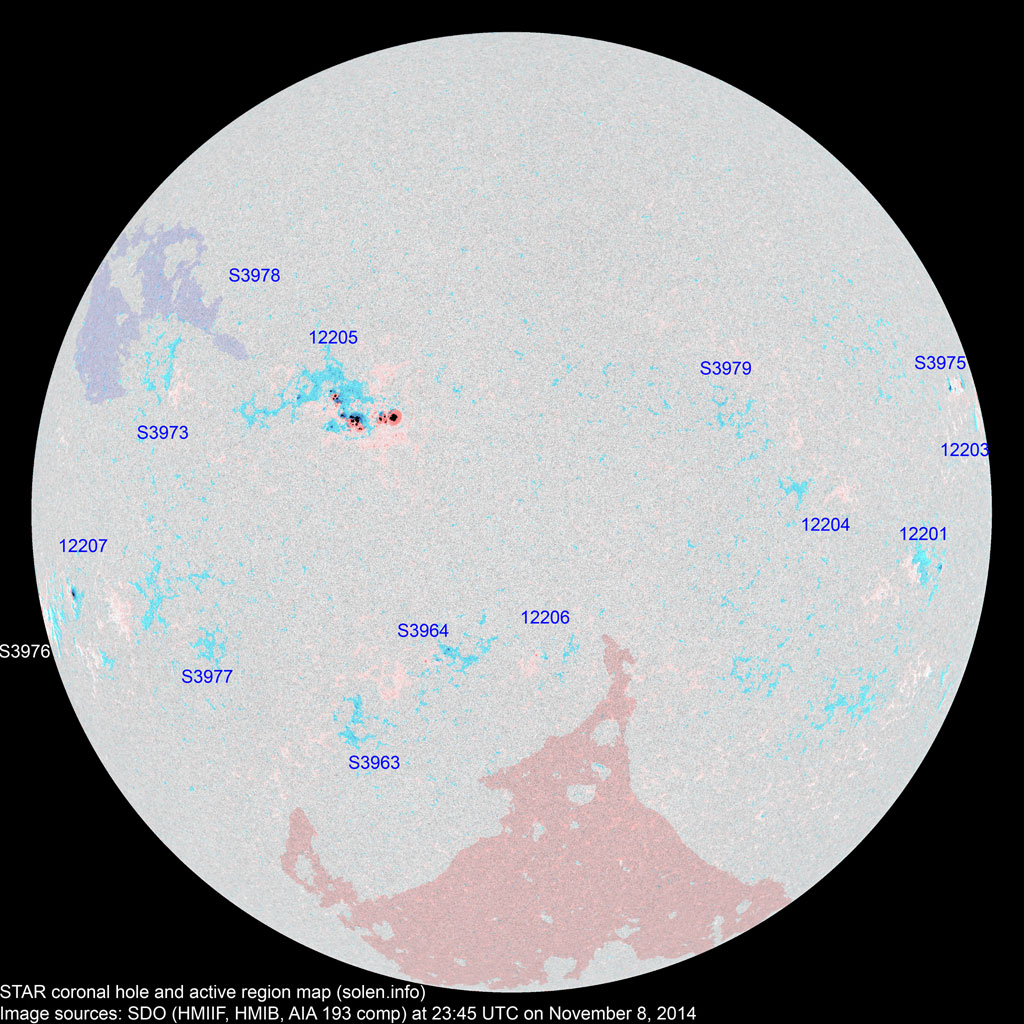

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12200 | 2014.10.28 2014.10.30 |
S17W78 | plage | ||||||||
| 12201 | 2014.10.29 2014.10.30 |
3 | 5 | 2 | S05W62 | 0020 | BXO | BXO |
 |
 |
|
| 12204 | 2014.10.31 2014.11.01 |
2 | 3 | 2 | N06W30 | 0010 | AXX | AXX |
 |
 |
|
| 12203 | 2014.10.31 2014.11.01 |
1 | 1 | N13W84 | 0020 | HSX | HSX |
 |
 |
area: 0110 location: N13W87 |
|
| S3957 | 2014.11.01 | S23W50 | plage | ||||||||
| 12205 | 2014.11.03 | 35 | 80 | 46 | N15E18 | 0310 | EKC | EKC |
 |
 |
beta-gamma-delta location: N13E18 |
| S3960 | 2014.11.03 | S07W06 | plage | ||||||||
| S3961 | 2014.11.03 | S07W20 | plage | ||||||||
| 12206 | 2014.11.04 | 3 | 1 | S15W04 | 0007 | AXX |
 |
 |
|||
| S3963 | 2014.11.04 | 8 | 3 | S23E20 | 0010 | AXX |
 |
 |
|||
| S3964 | 2014.11.04 | 14 | 4 | S14E09 | 0030 | BXO |
 |
 |
|||
| S3965 | 2014.11.04 | N11W16 | plage | ||||||||
| S3970 | 2014.11.07 | S05E41 |
 |
plage | |||||||
| S3971 | 2014.11.07 | S09E48 |
 |
plage | |||||||
| 12207 | 2014.11.07 2014.11.08 |
1 | 1 | 1 | S08E64 | 0040 | HAX | HAX |
 |
 |
area: 0070 location: S09E67 |
| S3973 | 2014.11.07 | 3 | 1 | N19E48 | 0008 | AXX |
 |
 |
|||
| S3974 | 2014.11.07 | N18W11 |
 |
plage | |||||||
| S3975 | 2014.11.08 | 6 | 3 | N16W74 | 0040 | DRO |
 |
||||
| S3976 | 2014.11.08 | 3 | 1 | S11E87 | 0060 | HAX |
 |
||||
| S3977 | 2014.11.08 | 2 | S13E40 | 0005 | AXX |
 |
|||||
| S3978 | 2014.11.08 | 1 | N25E38 | 0001 | AXX |
 |
|||||
| S3979 | 2014.11.08 | 1 | N15W27 | 0002 | AXX |
 |
|||||
| Total spot count: | 42 | 131 | 64 | ||||||||
| Sunspot number: | 92 | 271 | 164 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 62 | 159 | 92 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 55 | 95 | 90 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | (80.3 projected, -1.6) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (78.7 projected, -1.6) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (77.1 projected, -1.6) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (74.7 projected, -3.0) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (71.5 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (69.0 projected, -2.5) | 8.96 |
| 2014.11 | 128.7 (1) | 28.4 (2A) / 94.6 (2B) / 82.7 (2C) | (67.3 projected, -1.7) | (7.9) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day
average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
