The geomagnetic field was very quiet on November 26. Solar wind speed at SOHO ranged between 274 and 370 km/s.
Solar flux at 18h UTC on 2.8 GHz was 170.9 (increasing 30.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 149.0 - the highest since May 17, 2014). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.0). Three hour interval K indices: 11111001 (planetary), 11122221 (Boulder).
The background x-ray flux is at the class C1 level.
At the time of counting spots (see image time), spots were observed in 13 active regions using 2K resolution (SN: 295) and 9 active regions using 1K resolution (SN: 179) SDO images on the visible solar disk.
Region 12209 [S17W85] rotated partly out of view and was quiet.
Region 12216 [S13W12] decayed slowly and quietly.
Region 12217 [S19E29] decayed slowly and was mostly quiet.
Region 12218 [N15E42] gained trailing penumbra spots and was quiet.
Region 12219 [N04W07] developed further and could produce an M class
flare.
Region 12220 [S17E02] decayed slowly and quietly.
New region 12221 [N04E70] rotated into view on November 25 and was
numbered the next day by SWPC.
New region 12222 [S20E71] rotated into view and was the most active
region on the visible disk. The region appears to have a small magnetic delta. A
minor M class flare is possible.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4029 [N12W18] was quiet and stable.
New region S4035 [S24E59] emerged during the latter half of the day with
a few spots.
New region S4036 [N17E00] emerged with a penumbra spot.
New region S4037 [N12E22] emerged with a penumbra spot.
New region S4038 [S28E02] was observed with a penumbra spot.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| C2.9 | 06:17 | S18E42 | 12217 | |
| C2.8 | 15:46 | 12222 | ||
| C2.6 | 18:04 | 12222 | ||
| C3.2 | 22:26 | S20E72 | 12222 |
November 24-26: No obviously Earth directed CMEs were observed in LASCO imagery.
[Coronal hole history (since October
2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A recurrent northern hemisphere coronal hole (CH644) was in an Earth facing position on November 25-26. The development of AR 12219 reduced the southernmost extension of this CH.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be mostly quiet on November 27-29 with a chance of unsettled intervals on November 28 due to weak effects from CH644.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

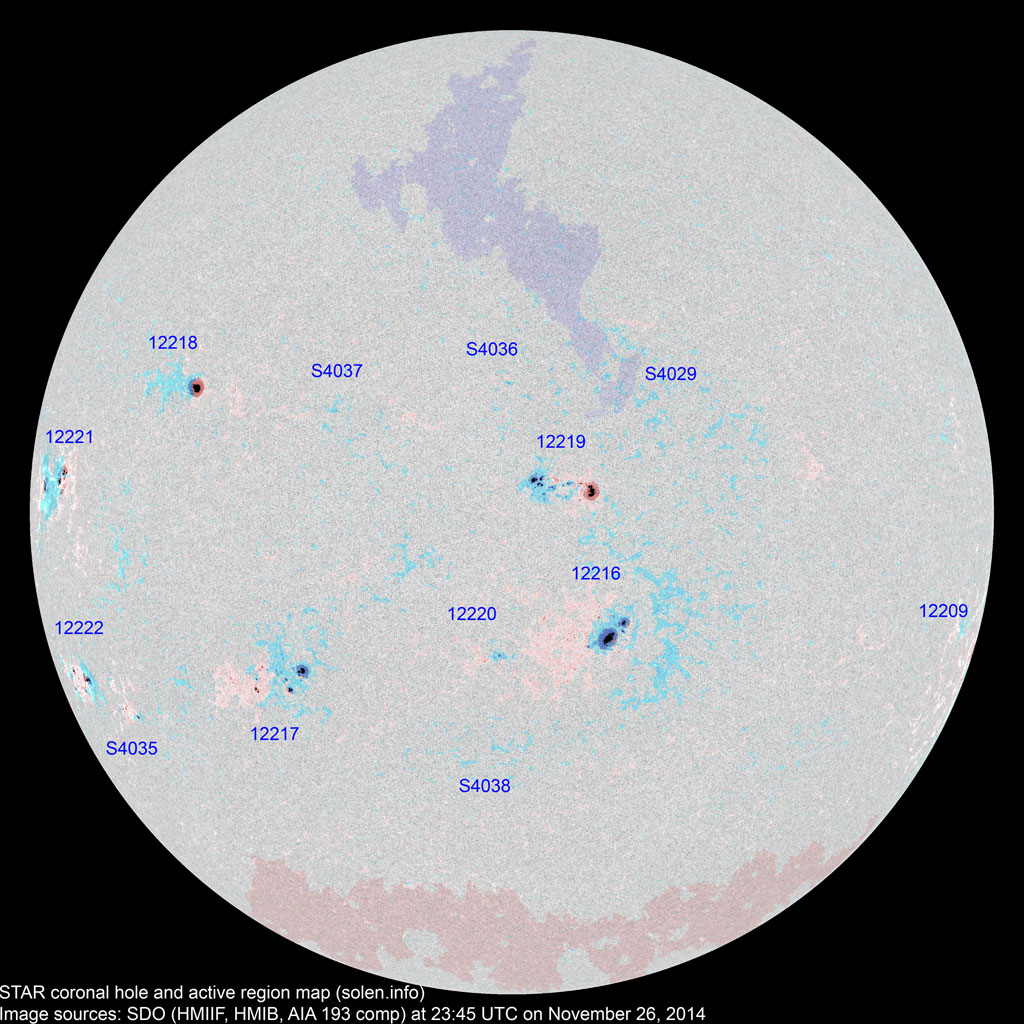

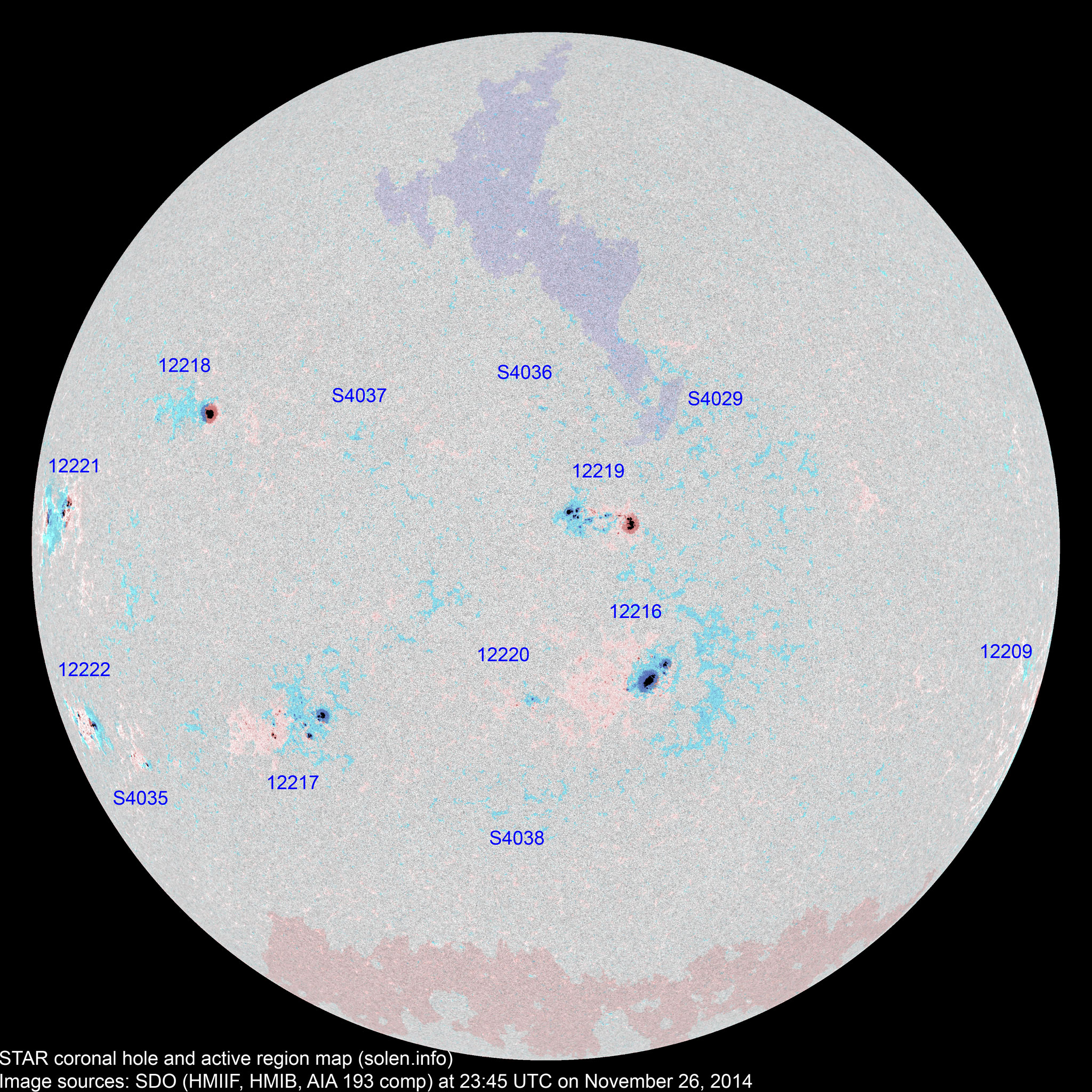

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12209 | 2014.11.12 | 5 | 1 | S16W91 | 0300 | HKX | HAX |
 |
 |
||
| 12214 | 2014.11.15 2014.11.16 |
S12W75 | |||||||||
| 12215 | 2014.11.15 2014.11.17 |
N09W73 | plage | ||||||||

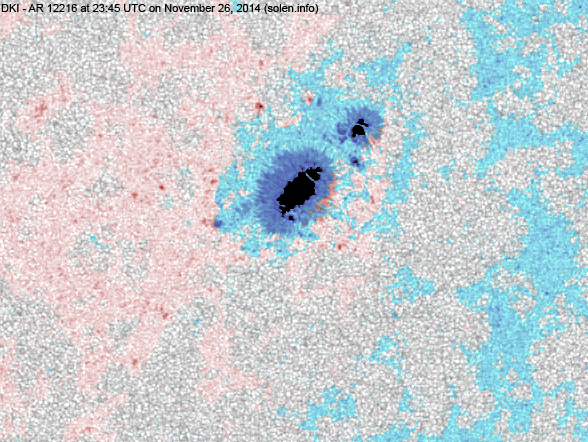

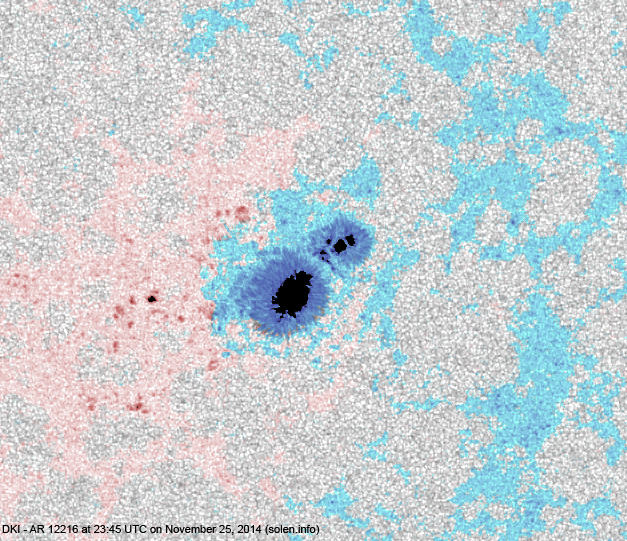

| 12216 | 2014.11.19 2014.11.20 |
23 | 36 | 19 | S14W10 | 0280 | DKI | DKI |
 |
 |
area: 0370 |
| S4008 | 2014.11.19 | N21W17 | plage | ||||||||
| S4012 | 2014.11.21 | S03W33 | plage | ||||||||

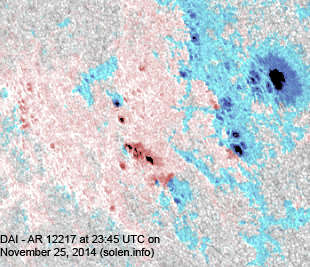

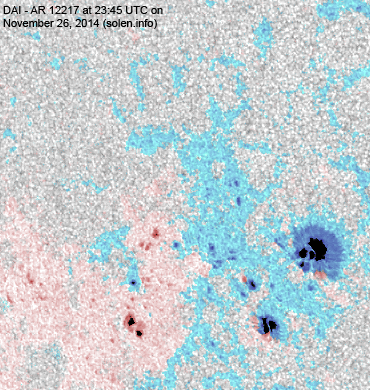

| 12217 | 2014.11.22 2014.11.23 |
26 | 39 | 19 | S20E29 | 0120 | EAI | DAI |
 |
 |
area: 0200 |
| S4016 | 2014.11.22 | N12W05 | plage | ||||||||

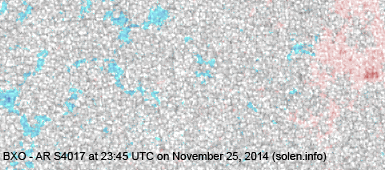

| S4017 | 2014.11.22 | N05W36 |
 |
plage | |||||||
| S4020 | 2014.11.23 | N14E35 |
 |
plage | |||||||
| 12218 | 2014.11.23 | 2 | 5 | 2 | N15E38 | 0140 | CSO | CSO |
 |
 |
location: N15E42 area: 0220 |
| S4023 | 2014.11.23 | N02W17 | plage | ||||||||

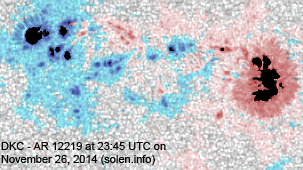

| 12219 | 2014.11.24 | 23 | 39 | 23 | N05W08 | 0030 | DRI | DKC |
 |
 |
beta-gamma area: 0380 |
| 12220 | 2014.11.24 | 6 | 5 | 4 | S16E01 | 0010 | BXO | CRO |
 |
 |
|
| S4028 | 2014.11.24 | S05E18 | plage | ||||||||
| S4029 | 2014.11.24 | 2 | 1 | N12W18 | 0005 | BXO |
 |
 |
|||
| S4030 | 2014.11.24 | N00W24 | plage | ||||||||
| 12221 | 2014.11.25 2014.11.26 |
4 | 17 | 8 | N04E70 | 0030 | DRO | DAC |
 |
 |
area: 0200 |
| S4033 | 2014.11.25 | S08W00 |
 |
plage | |||||||
| 12222 | 2014.11.26 | 1 | 23 | 9 | S20E70 | 0030 | HRX | DAI |
 |
beta-gamma-delta? area: 0100 |
|
| S4035 | 2014.11.26 | 5 | 4 | S24E59 | 0020 | CRO |
 |
||||
| S4036 | 2014.11.26 | 1 | N17E00 | 0002 | AXX |
 |
|||||
| S4037 | 2014.11.26 | 1 | N12E22 | 0002 | AXX |
 |
|||||
| S4038 | 2014.11.26 | 1 | S28E02 | 0002 | AXX |
 |
|||||
| Total spot count: | 90 | 175 | 89 | ||||||||
| Sunspot number: | 170 | 305 | 179 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 129 | 226 | 135 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 102 | 107 | 98 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
| 2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | (80.3 projected, -1.6) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | (78.7 projected, -1.6) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (77.1 projected, -1.6) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (74.7 projected, -3.0) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (71.5 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (69.0 projected, -2.5) | 8.96 |
| 2014.11 | 151.1 (1) | 80.9 (2A) / 93.3 (2B) / 83.6 (2C) | (67.3 projected, -1.7) | (9.6) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
