Solar Terrestrial Activity Report

Activity chart

Last major update issued on October 11, 2014 at 04:10 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update October 1, 2014)] [Cycle 24 progress (last update October 1, 2014) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update October 1, 2014)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update October 1, 2014)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update October 10, 2014)]

[New: Noon SDO sunspot count 1K 4K (large file) (updated daily)]

[POES auroral activity level October 2009 - December 2012]
[Solar polar fields vs solar cycles - updated September 6, 2014]
[Presentations: 3rd SSN Workshop, Tucson, 2013 (pdf) / 4th SSN Workshop, Locarno, 2014]

Recent activity

The geomagnetic field was quiet to unsettled on October 10. Solar wind speed at SOHO ranged between 275 and 383 km/s.

Solar flux at 20h UTC on 2.8 GHz was 121 (decreasing 24.1 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 132.0. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 7.0). Three hour interval K indices: 33211111 (planetary), 33202321 (Boulder).

The background x-ray flux is at the class B3 level.

At the time of counting spots (see image time), spots were observed in 6 active regions using 2K resolution (SN: 89) and 6 active regions using 1K resolution (SN: 75) SDO images on the visible solar disk.

Region 12182 [S16W71] decayed fairly quickly and was quiet.
Region 12183 [N12W39] decayed slowly and quietly.
Region 12184 [S24W16] was quiet and stable.
Region 12185 [S13W07] decayed slowly and was quiet.
Region 12186 [S21E35] was quiet and stable.

Spotted regions not numbered (or interpreted differently) by SWPC:
S3879 [N15W10] was quiet and stable.

C2+ flares (GOES):

Magnitude Peak time (UTC) Location AR Comment
C3.0 (LDE) 16:47 SW quadrant   filament eruption, CME

Coronal mass ejections (CMEs)

October 8-10: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

No obvious coronal holes are currently in or near Earth facing positions.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on October 11-13.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

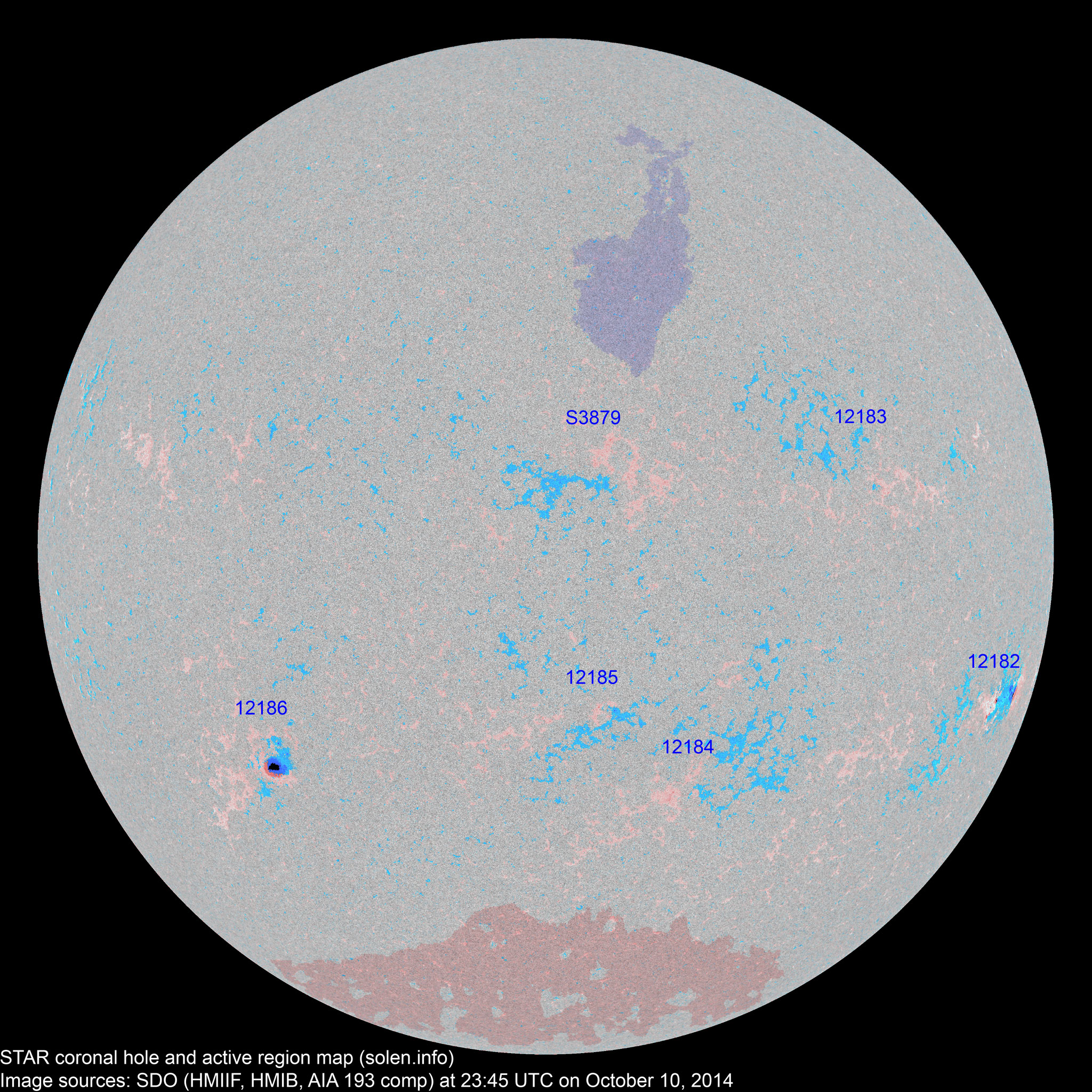

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12182 2014.10.01
2014.10.03
9 8 5 S15W69 0150 DAC DAO

location: S16W71

12183 2014.10.01
2014.10.03
  4 2 N13W40 0010   BXO
12184 2014.10.02
2014.10.03
1 3 1 S13W10 0000 AXX AXX SWPC location was: S21W07, new location is that of AR 12185

real location: S24W16

S3875 2014.10.03       N13W56           plage
S3878 2014.10.04       S18W51           plage
S3879 2014.10.04   5 2 N15W10 0002   AXX
12185 2014.10.05
2014.10.06
2 2 2 S13W10 0000 AXX BXO
12186 2014.10.07 2 7 3 S20E34 0200 CSO CAO location: S21E35
S3883 2014.10.07       N17E33           plage
S3884 2014.10.07       S10W22         plage
S3887 2014.10.08       S08E03           plage
S3888 2014.10.08       S07W37           plage
S3889 2014.10.09       S08W33         plage
Total spot count: 14 29 15
Sunspot number: 54 89 75  (total spot count + 10 * number of spotted regions)
Weighted SN: 24 39 25  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 32 31 41 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.06 110.1 113.7 52.5 62.6 (+2.7) 12.60
2013.07 115.5 119.3 57.0 65.5 (+2.9) 9.47
2013.08 114.6 118.3 66.0 69.0 (+3.5) 8.27
2013.09 102.6 103.7 36.9 73.1 (+4.1) 5.23
2013.10  132.1 131.2 85.6 75.0 (+1.9) 7.71
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 (82.7 projected, +1.9) 7.88
2014.05 129.7 132.9 75.2 (82.3 projected, -0.4) 5.75
2014.06 122.0 125.8 71.0 (81.1 projected, -1.2) 6.72
2014.07 137.4 141.8 72.5 (79.4 projected, -1.7) 4.50
2014.08 124.7 127.9 74.7 (77.1 projected, -2.3) 7.71
2014.09 146.2   87.6 (73.8 projected, -3.3) 9.78
2014.10 131.8 (1)   31.3 (2A) / 96.9 (2B) / 87.6 (2C) (71.4 projected, -2.4) (6.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
