Last major update issued on February 6, 2015 at 04:40 UTC.
[Solar and geomagnetic
data - last month (updated daily)]
[Solar wind and
electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update February 1,
2015)] [Cycle 24
progress (last update February 1, 2015) ]
[Solar cycles 1-20]
[Graphical comparison of cycles
21, 22, 23 and 24 (last update February 1, 2015)]
[Graphical comparison of cycles
10, 12, 13, 14, 16 and 24 (last update February 1, 2015)]
[Historical solar and geomagnetic
data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since
January 2003 (last update February 1, 2015)]
[Noon SDO sunspot count 1K Reference: 4K (large file) (updated daily)]
[POES auroral activity
level October 2009 - December 2012]
[Solar polar fields
vs solar cycles - updated January 25, 2015]
[Presentations:
3rd SSN Workshop, Tucson, 2013 (pdf)
/
4th SSN Workshop, Locarno, 2014]
The geomagnetic field was quiet to unsettled on February 5. Solar wind speed at SOHO ranged between 355 and 452 km/s.
Solar flux at 20h UTC on 2.8 GHz was 141.9 (decreasing 9.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 148.8. The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 10.5). Three hour interval K indices: 23123322 (planetary), 13133342 (Boulder).
The background x-ray flux is at the class B5 level.
At the time of counting spots (see image time), spots were observed in 9 active regions using 2K resolution (SN: 235) and 7 active regions using 1K resolution (SN: 135) SDO images on the visible solar disk.

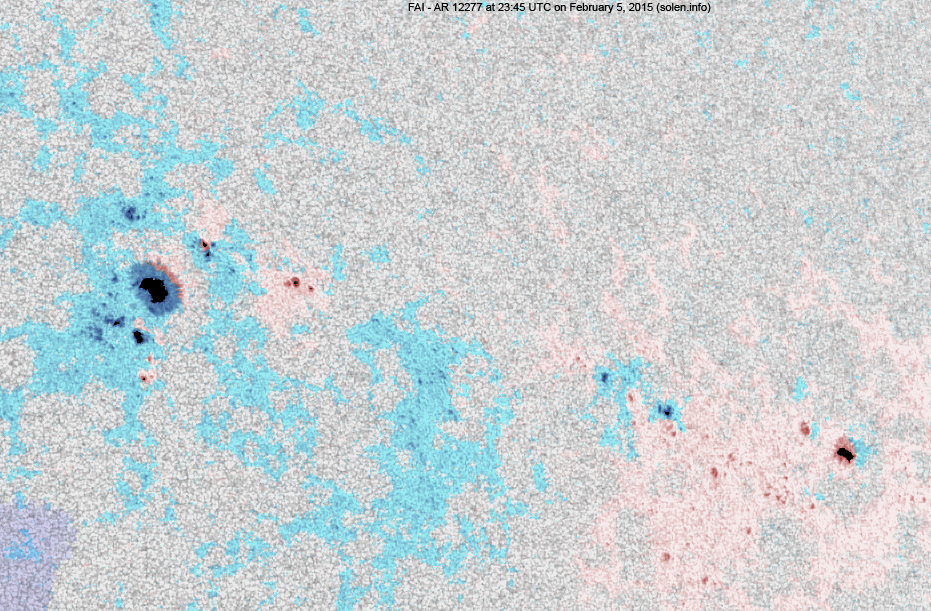

Region 12277 [N09W28] decayed significantly losing
spots and penumbral area.

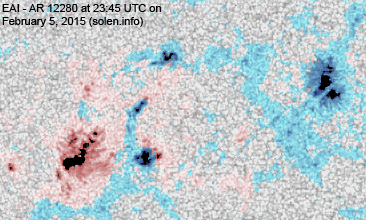

Region 12280 [S08E17] was quiet despite a small magnetic delta centrally.
Region 12281 [N12E50] was quiet and stable.
Spotted regions not numbered (or interpreted
differently) by SWPC:

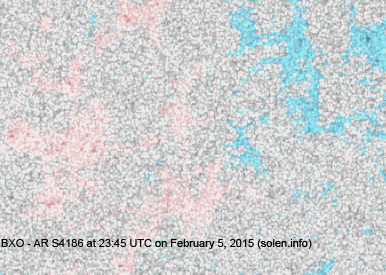

S4186 [S19W22] was quiet and stable.

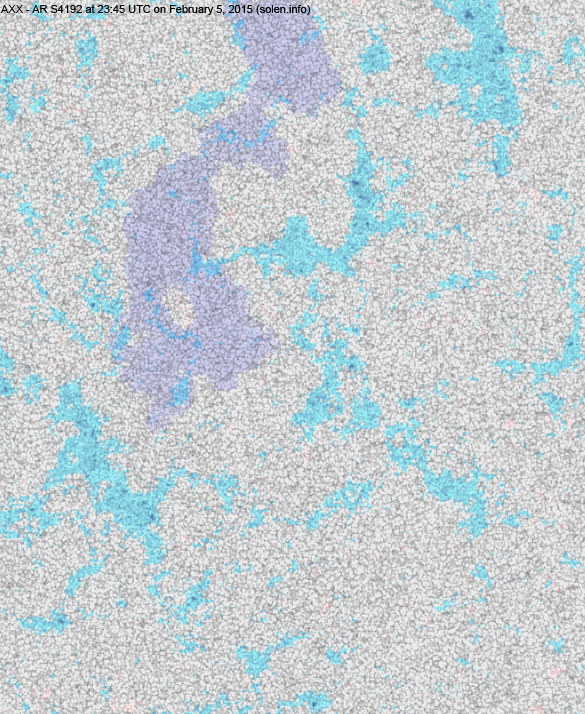

S4192 [S09W01] gained several penumbra spots.

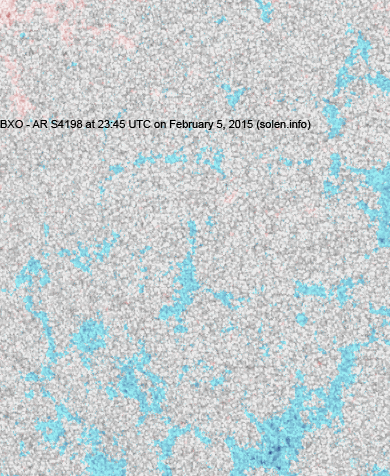

S4198 [S19E28] was quiet and stable.
New region S4202 [N12E17] was observed with penumbra spots.
New region S4203 [S10W42] emerged during the latter
half of the day.
New region S4204 [N16E34] was observed with penumbra spots.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| C3.3/1F | 09:53 | N12W14 | 12277 |
February 3-5: No obviously Earth directed CMEs were observed in LASCO imagery.
[Coronal hole
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A poorly defined trans equatorial coronal hole (CH652) rotated across the central meridian on February 5-6.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on February 6-7. A high speed stream from CH652 could cause unsettled and active intervals on February 8-9.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

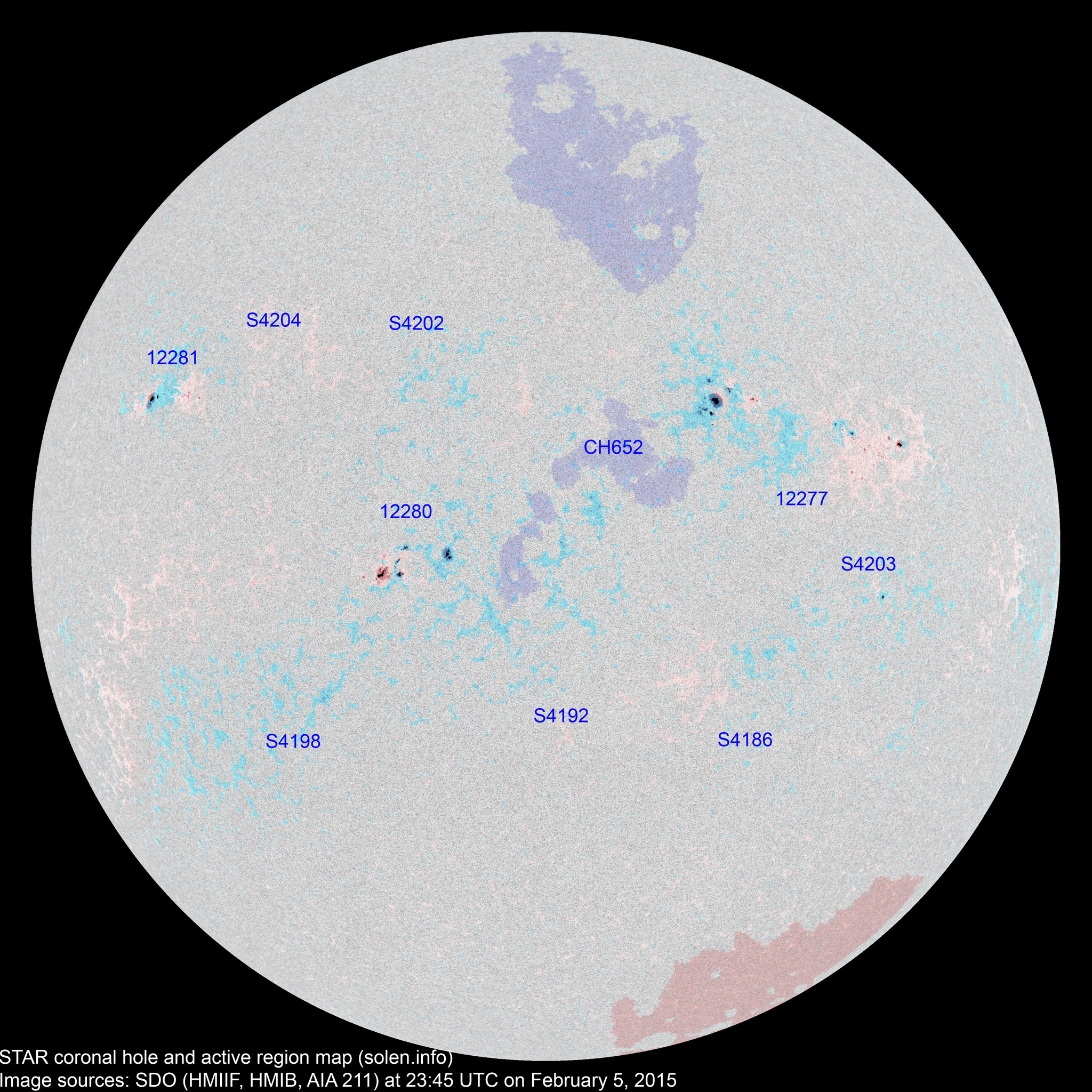

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12278 | 2015.01.25 2015.01.29 |
S08W74 | plage | ||||||||
| 12272 | 2015.01.25 2015.01.26 |
N13W78 | plage | ||||||||
| 12277 | 2015.01.27 2015.01.28 |
42 | 66 | 24 | S08W32 | 0340 | FKI | FAI |
 |
 |
beta-gamma real location: N09W28 |
| S4186 | 2015.01.30 | 3 | 3 | S19W22 | 0009 | BXO |
 |
 |
|||
| S4192 | 2015.02.01 | 14 | 7 | S09W01 | 0030 | AXX |
 |
 |
|||
| 12280 | 2015.02.02 | 9 | 28 | 16 | S08E17 | 0140 | DAC | EAI |
 |
 |
beta-gamma-delta area: 0280 |
| 12281 | 2015.02.03 | 5 | 16 | 9 | N13E46 | 0080 | CAO | CAO |
 |
 |
location: N12E50 |
| S4195 | 2015.02.03 | N08W04 |
 |
plage | |||||||
| S4196 | 2015.02.03 | N15E06 | plage | ||||||||
| S4198 | 2015.02.04 | 10 | 3 | S19E28 | 0018 | BXO |
 |
 |
|||
| S4199 | 2015.02.04 | S32W06 |
 |
plage | |||||||
| S4200 | 2015.02.04 | S21W51 |
 |
plage | |||||||
| S4202 | 2015.02.05 | 3 | N12E17 | 0002 | AXX |
 |
|||||
| S4203 | 2015.02.05 | 2 | 1 | S10W42 | 0012 | CRO |
 |
||||
| S4204 | 2015.02.05 | 3 | N16E34 | 0004 | AXX |
 |
|
||||
| Total spot count: | 56 | 145 | 65 | ||||||||
| Sunspot number: | 86 | 235 | 135 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 76 | 163 | 83 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 52 | 82 | 74 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | 80.5 (-1.4) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | 79.7 (-0.8) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | 78.6 (-1.1) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (76.2 projected, -2.4) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (73.0 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (70.5 projected, -2.5) | 8.96 |
| 2014.11 | 154.8 | 151.4 | 70.1 | (68.8 projected, -1.7) | 9.33 |
| 2014.12 | 158.7 | 153.8 | 78.0 | (67.7 projected, -1.1) | 11.24 |
| 2015.01 | 141.9 | 137.3 | 67.0 | (66.5 projected, -1.2) | 9.46 |
| 2015.02 | 146.3 (1) | 19.0 (2A) / 106.4 (2B) / 79.1 (2C) | (64.9 projected, -1.6) | (14.8) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC)
sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO
international sunspot number is typically 30-50% lower. 2B) Boulder SN current
month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
