Recent activity

The geomagnetic field was very quiet on February 13. Solar wind speed at SOHO ranged between 300 and 353 km/s.

Solar flux at 20h UTC on 2.8 GHz was 124.9 (increasing 3.0 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 148.2. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 1.6). Three hour interval K indices: 00010001 (planetary), 00011211 (Boulder).

The background x-ray flux is at the class B4 level.

At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 173) and 9 active regions using 1K resolution (SN: 128) SDO images on the visible solar disk.

Region 12281 [N13W52] was quiet and stable.
Region 12282 [N14E01] was quiet and stable.
Region 12283 [N07W22] decayed slowly and quietly.
New region 12284 [N14E57] emerged near the east limb on February 12 and was numbered by SPWC the next day.

Spotted regions not numbered (or interpreted differently) by SWPC:
S4198 [S18W40] was quiet and stable.
S4210 [N11E18] was quiet and stable.
S4211 [S19E27] was quiet and stable.
S4214 [N08E03] was quiet and stable.
S4217 [S04E23] was quiet and stable.
New region S4221 [S17E77] rotated into view.

C2+ flares (GOES):

Magnitude Peak time (UTC) Location AR Comment


Coronal mass ejections (CMEs)

February 11-13: No obviously Earth directed CMEs were observed in LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent trans equatorial coronal hole (CH653) was in an Earth facing position on February 10-12, CH653 has not been associated with geomagnetic disturbances during previous rotations, however, the coronal hole extended on February 9-11.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on February 14-16. Weak geomagnetic effects associated with CH653 are possible on February 14-15.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

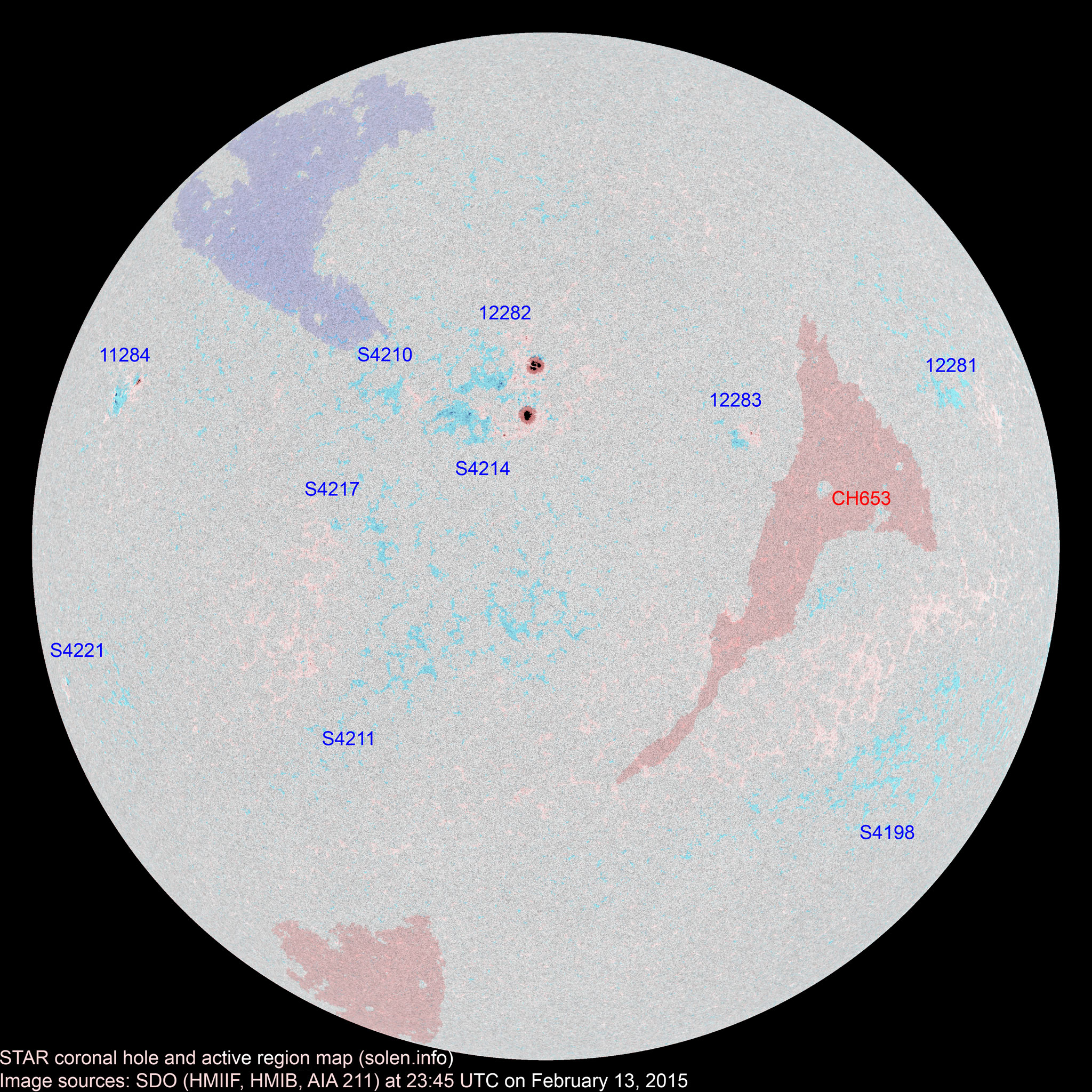

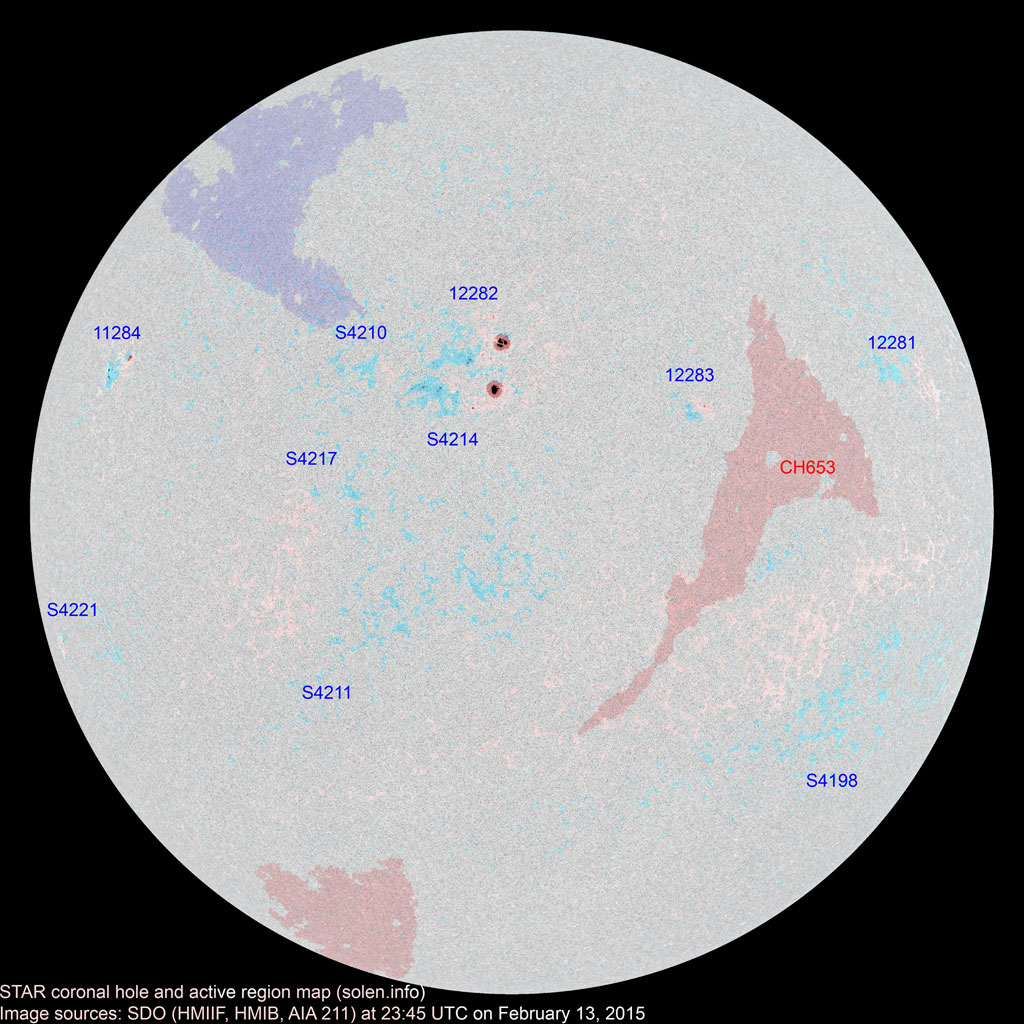

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12280 2015.02.02 2     S09W95 0030 CSO

rotated out of view

12281 2015.02.03   2 1 N13W62 0004   AXX location: N13W52
S4198 2015.02.04   8 2 S18W40 0016   BXO images/AR_S4198_20150213_2345.png images/AR_S4198_20150212_2345.png
12282 2015.02.07 10 16 8 N10E04 0220 CSI CAO

location: N14E01

area: 0220

split off from AR S4214

S4206 2015.02.07       S12W00           plage
S4207 2015.02.08       N07W17           plage
S4208 2015.02.08       S09W36           plage
S4209 2015.02.09       N12W49           plage
S4210 2015.02.10   5   N11E18 0008   BXO

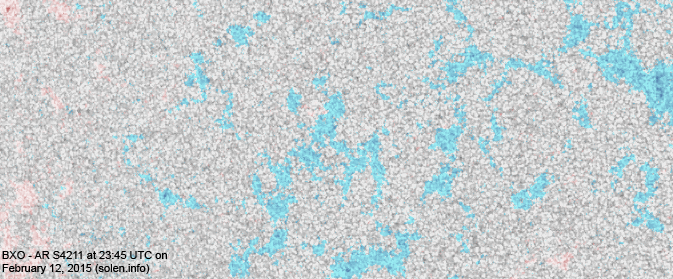

S4211 2015.02.10   6 2 S16E28 0014   BXO images/AR_S4211_20150213_2345.png images/AR_S4211_20150212_2345.png
S4212 2015.02.10       N28W22           plage
S4214 2015.02.11   18 16 N08E03 0200   CAO
S4215 2015.02.11       S03E20           plage
12283 2015.02.12 4 3 2 N06W24 0010 BXO BXO location:N07W22
S4217 2015.02.12   6 2 S04E23 0010   BXO
12284 2015.02.12
2015.02.13
3 8 4 N14E57 0030 CRO DRO
S4219 2015.02.12       N17W30         plage
S4221 2015.02.13   1 1 S17E77 0003   AXX



Total spot count: 19 73 38
Sunspot number: 59 173 128  (total spot count + 10 * number of spotted regions)
Weighted SN: 32 86 51  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 35 61 70 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.09 102.6 103.7 36.9 73.1 (+4.1) 5.23
2013.10  132.1 131.2 85.6 75.0 (+1.9) 7.71
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1)
(likely solar max)
7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 79.7 (-0.8) 6.72
2014.07 137.4 141.8 72.5 78.6 (-1.1) 4.50
2014.08 124.7 127.9 74.7 (76.2 projected, -2.4) 7.71
2014.09 146.6 148.1 87.6 (73.0 projected, -3.2) 9.78
2014.10 153.4 152.9 60.6 (70.5 projected, -2.5) 8.96
2014.11 154.8 151.4 70.1 (68.8 projected, -1.7) 9.33
2014.12 158.7 153.8 78.0 (67.7 projected, -1.1) 11.24
2015.01 141.9 137.3 67.0 (66.5 projected, -1.2) 9.46
2015.02 142.4 (1)   40.2 (2A) / 86.6 (2B) / 76.2 (2C) (64.9 projected, -1.6) (8.9)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
