Solar Terrestrial Activity Report

Activity chart

Last major update issued on January 8, 2015 at 05:10 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update January 1, 2015)] [Cycle 24 progress (last update January 1, 2015) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update January 1, 2015)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update January 1, 2015)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update January 3, 2015)]

[Noon SDO sunspot count 1K Reference: 4K (large file) (updated daily)]

[POES auroral activity level October 2009 - December 2012]
[Solar polar fields vs solar cycles - updated December 27, 2014]
[Presentations: 3rd SSN Workshop, Tucson, 2013 (pdf) / 4th SSN Workshop, Locarno, 2014]

Recent activity

The geomagnetic field was quiet to severe storm on January 7. Solar wind speed at SOHO ranged between 389 and 491 km/s. The geomagnetic disturbance was unexpected. There was no solar wind shock and the passage of the magnetic cloud may have been related to a corotating interaction region associated with CH649.

Solar flux at 20h UTC on 2.8 GHz was 147.2 (decreasing 0.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 153.7. The Potsdam WDC planetary A index was 32 (STAR Ap - based on the mean of three hour interval ap indices: 32.1). Three hour interval K indices: 23342331 (planetary), 22443332 (Boulder).

The background x-ray flux is at the class B7 level.

At the time of counting spots (see image time), spots were observed in 8 active regions using 2K resolution (SN: 193) and 8 active regions using 1K resolution (SN: 136) SDO images on the visible solar disk.

Region 12252 [S21W65] decayed slowly and quietly.
Region 12253 [S07W46] decayed fairly quickly losing spots and penumbral area.
Region 12255 [S15W01] decayed slowly and quietly.
Region 12257 [N05W01] developed further and could produce C flares and maybe a minor M class flare.
Region 12258 [N14E65] was quiet and stable.

Spotted regions not numbered (or interpreted differently) by SWPC:
S4132 [S16E80] rotated fully into view revealing a large trailing penumbra. M class flaring is possible.
New region S4133 [N10E27] emerged with penumbra spots.
New region S4134 [S10E35] was observed with penumbra spots.

C2+ flares (GOES):

Magnitude Peak time (UTC) Location AR Comment
C4.3/1N 11:51 S09W35 12253
C2.1 15:00 S16E78 S4132

Coronal mass ejections (CMEs)

January 5-7: No obviously Earth directed CMEs were observed in LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent northern hemisphere coronal hole (CH649) will be in an Earth facing position on January 6-8.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active on January 8-11 due to effects from CH649.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

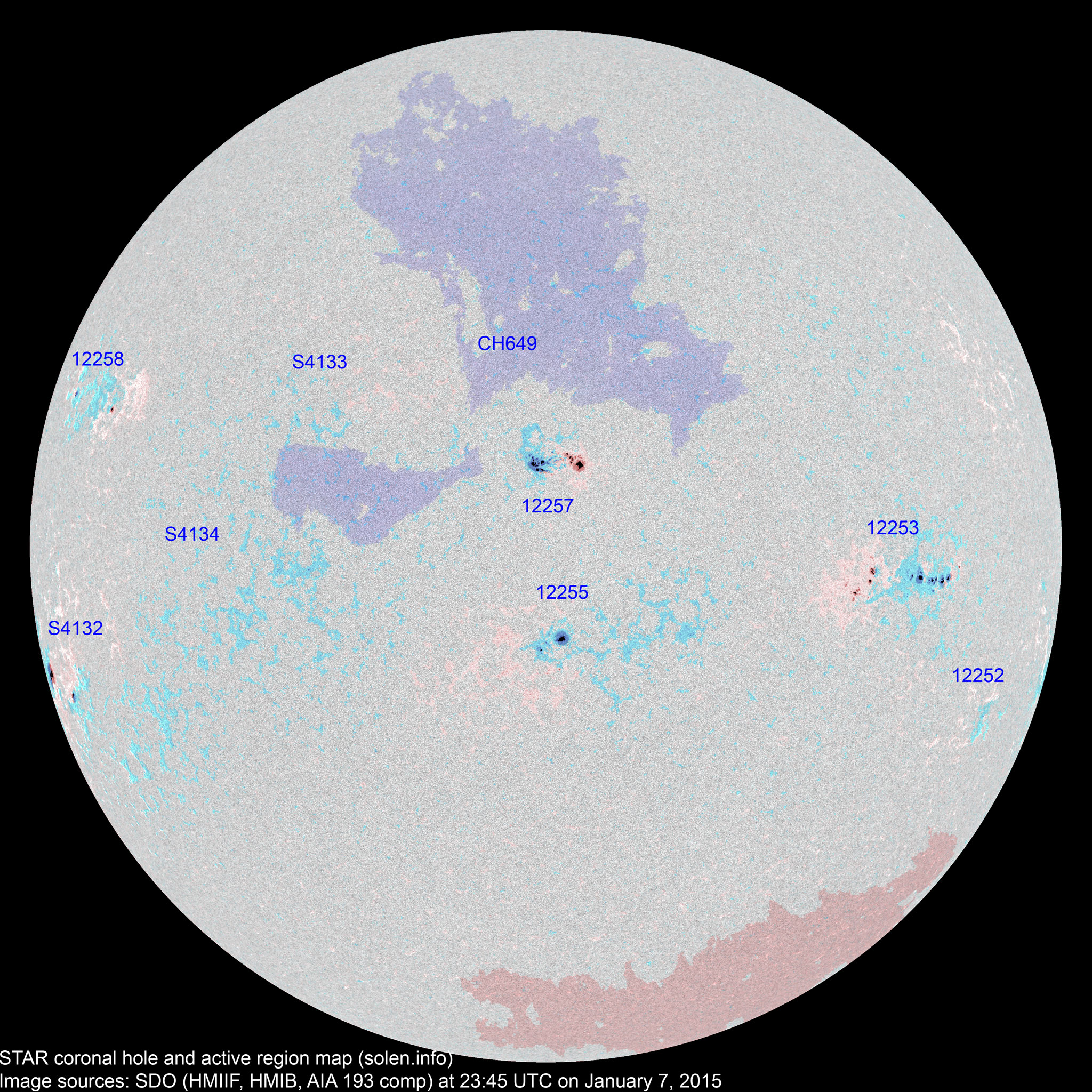

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12251 2014.12.26 1     S13W89 0050 HAX

rotated out of view

12252 2014.12.27 1 1 1 S19W66 0010 AXX AXX area: 0004
12253 2014.12.29
2014.12.30
24 44 22 S06W44 0210 FAC FAC beta-gamma
12255 2015.01.01 6 17 7 S14W02 0090 CSO CSO
S4123 2015.01.01       S15W48           plage
S4124 2015.01.02       N04W16           plage
12257 2015.01.03
2015.01.06
13 31 19 N05W01 0100 DAI DAC area: 0300
S4128 2015.01.04       S19W37           plage
12258 2015.01.06 1 4 2 N12E58 0030 HRX ERO location: N14E65
S4132 2015.01.06   5 3 S16E80 0350   DKO
S4133 2015.01.07   4 1 N10E27 0008   BXO
S4134 2015.01.07   7 1 S10E35 0012   AXX



Total spot count: 46 113 56
Sunspot number: 106 193 136  (total spot count + 10 * number of spotted regions)
Weighted SN: 69 141 84  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 64 68 75 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.09 102.6 103.7 36.9 73.1 (+4.1) 5.23
2013.10  132.1 131.2 85.6 75.0 (+1.9) 7.71
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1)
(likely solar max)
7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 79.7 (-0.8) 6.72
2014.07 137.4 141.8 72.5 (78.6 projected, -1.1) 4.50
2014.08 124.7 127.9 74.7 (76.2 projected, -2.4) 7.71
2014.09 146.6 148.1 87.6 (73.0 projected, -3.2) 9.78
2014.10 153.4 152.9 60.6 (70.5 projected, -2.5) 8.96
2014.11 154.8 151.4 70.1 (68.8 projected, -1.7) 9.33
2014.12 158.7 153.8 78.0 (67.7 projected, -1.1) 11.24
2015.01 146.1 (1)   27.7 (2A) / 107.4 (2B) / 88.6 (2C) (66.5 projected, -1.2) (14.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
