The geomagnetic field was quiet on January 24. Solar wind speed at SOHO ranged between 350 and 392 km/s.
Solar flux at 20h UTC on 2.8 GHz was 125.3 (decreasing 7.3 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 147.6. The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.5). Three hour interval K indices: 01111122 (planetary), 01122322 (Boulder).
The background x-ray flux is at the class B5 level.
At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 191) and 6 active regions using 1K resolution (SN: 95) SDO images on the visible solar disk.
Region 12266 [S05W72] decayed slowly and quietly.
Region 12268 [S10E48] was mostly quiet and still has M class flare potential.
Region 12269 [N08E08] developed slowly and quietly.
Region 12270 [S21E49] decayed slowly and quietly.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4155 [S15W33] reemerged with a penumbra spot.
S4163 [N00W39] reemerged with a penumbra spot.
S4168 [S10E12] reemerged with penumbra spots.
S4169 [N17E23] developed slowly and quietly.
New region S4172 [S24E24] emerged with penumbra spots.
New region S4173 [S04W08] emerged with penumbra spots.
A filament eruption in the southeastern quadrant began just after 13h UTC and may have extended to the northeast quadrant by 18h UTC. The total area influenced by the eruption was fairly large and not that far from the central meridian. If there was a CME it will likely have Earth directed components.
C2+ flares (GOES):
|Magnitude||Peak time (UTC)||Location||AR||Comment|
January 22-24: No obviously Earth directed CMEs were observed in LASCO imagery. There may have been a weak CME after 15h UTC on January 24 following a filament eruption.
[Coronal hole history (since October
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A small southern hemisphere coronal hole (CH651) will be in an Earth facing position on January 25.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on January 25-26. On January 27 there is a slight chance of CME effects due to a filament eruption on January 24. On January 28-29 a weak coronal hole stream could cause some unsettled intervals.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

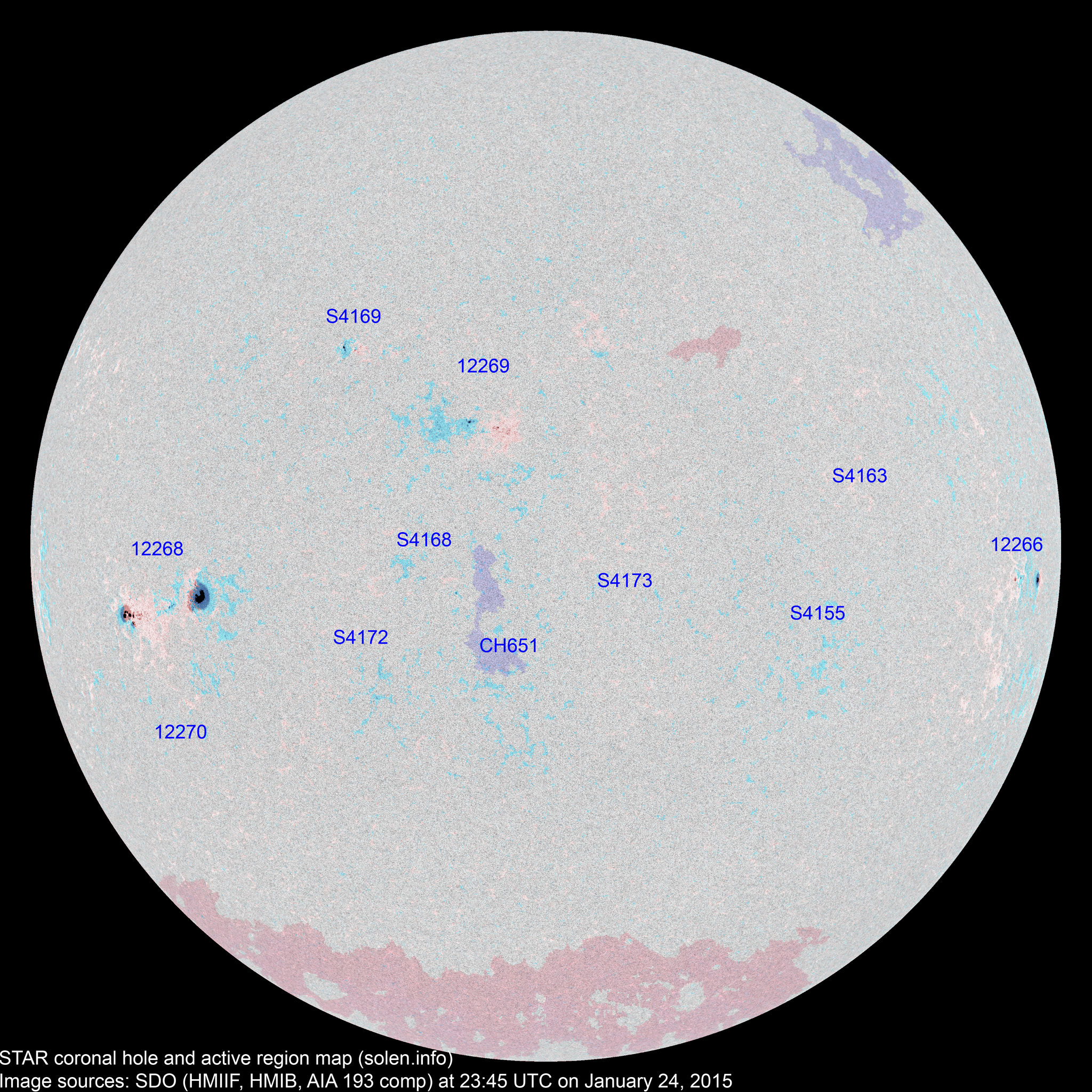

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
|Total spot count:||17||91||35|
|Sunspot number:||57||191||95||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||32||112||56||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||34||67||52||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number||Average ap
|166.3||102.3 (cycle peak)||78.4 (+1.1)||10.70|
(likely solar max)
|2014.07||137.4||141.8||72.5||(78.6 projected, -1.1)||4.50|
|2014.08||124.7||127.9||74.7||(76.2 projected, -2.4)||7.71|
|2014.09||146.6||148.1||87.6||(73.0 projected, -3.2)||9.78|
|2014.10||153.4||152.9||60.6||(70.5 projected, -2.5)||8.96|
|2014.11||154.8||151.4||70.1||(68.8 projected, -1.7)||9.33|
|2014.12||158.7||153.8||78.0||(67.7 projected, -1.1)||11.24|
|2015.01||138.5 (1)||70.3 (2A) / 90.8 (2B) / 72.7 (2C)||(66.5 projected, -1.2)||(9.2)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
