The geomagnetic field was quiet to unsettled on May 2, weakly under the influence of a high speed stream from CH665. Solar wind speed at SOHO ranged between 360 and 560 km/s.
Solar flux at 20h UTC on 2.8 GHz was 105.7 (decreasing 16.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 126.1. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.6). Three hour interval K indices: 12111133 (planetary), 22122333 (Boulder).
The background x-ray flux is at the class B4 level.
At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 163) and 7 active regions using 1K resolution (SN: 102) SDO images on the visible solar disk.
Region 12334 [S19W15] decayed slowly and quietly.
Region 12335 [S15E50] developed further and could produce C and minor M class flares. The region has minor polarity intermixing.
Spotted regions not numbered (or interpreted
differently) by SWPC:
S4426 [S12E20] was quiet and stable.
S4429 [S32E15] decayed slowly and quietly.
New region S4431 [N01W25] was observed with a penumbra spot.
New region S4432 [S12W17] emerged with penumbra spots.
New region S4433 [N05E70] rotated into view.
New region S4434 [N13E28] emerged with several spots.
New region S4436 [S16E69] emerged with several spots.
New region S4437 [N10W03] was observed with a penumbra spot.
An extensive filament eruption was observed in the southern hemisphere across the central meridian and probably over the southeast limb. The filament became unstable after 15h UT and erupted shortly before 19h UT. A partial halo CME was observed late in the day and early on May 3.
|Magnitude||Peak time (UTC)||Location||AR||Recorded by||Comment|
April 30 - May 1: No obviously
Earth directed CMEs were observed.
May 2: A partial halo CME was observed late in the day and early on May 3 after a large filament eruption in the southern hemisphere.
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent trans equatorial coronal hole (CH666) was in a potentially geoeffective position on May 2. CH666 has decayed over the last days and may not be capable of creating a geomagnetic disturbance.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet on May 3 with a chance of unsettled intervals due to weak coronal hole effects. Quiet conditions are likely on May 4-5. There is a slight possibility of a few unsettled intervals due to weak effects from CH666 on May 5-6. The CME observed late on May 2 and early on May 3 was fairly slow and may have had Earth directed extensions which could reach us on May 6. In that case some unsettled and active intervals are possible.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

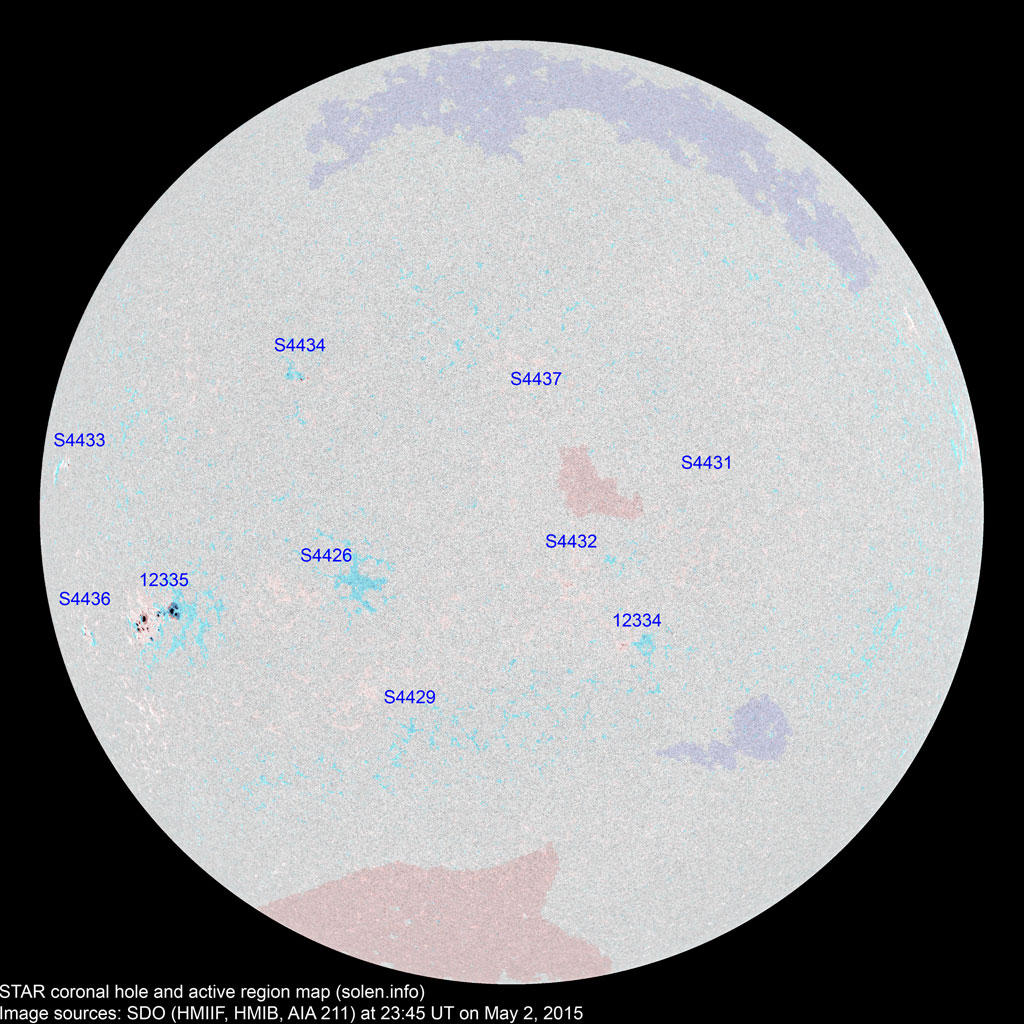

(Click on image for 2K resolution) Compare to the previous day's image.
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||15||63||32|
|Sunspot number:||25||163||102||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||20||74||43||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||15||57||56||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number||Average
|166.3||102.3 (cycle peak)||78.4 (+1.1)||10.70|
|2014.04||143.9||144.8||84.7||81.9 (+1.1) (solar max)||7.88|
|2014.11||154.8||151.4||70.1||(64.9 projected, -2.4)||9.33|
|2014.12||158.7||153.8||78.0||(62.6 projected, -2.3)||11.24|
|2015.01||141.9||137.3||67.0||(60.4 projected, -2.2)||9.46|
|2015.02||129.1||126.0||44.8||(58.7 projected, -1.7)||9.92|
|2015.03||125.9||124.6||38.4||(56.3 projected, -2.4)||16.14|
|2015.04||128.8||129.7||54.4||(53.7 projected, -2.6)||10.3|
|2015.05||(102.8)||1.2 (2A) / 19 (2B) / 77.6 (2C)||(51.5 projected, -2.2)||(5.7)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
