Recent activity

The geomagnetic field was very quiet on May 21. Solar wind speed at SOHO ranged between 351 and 449 km/s.

Solar flux at 20h UTC on 2.8 GHz was 101.8 (decreasing 32.7 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 127.6. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.0). Three hour interval K indices: 00001001 (planetary), 01012211 (Boulder).

The background x-ray flux is at the class B2 level.

At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 158) and 7 active regions using 1K resolution (SN: 94) SDO images on the visible solar disk.

Region 12346 [S04W69] decayed slowly and quietly.

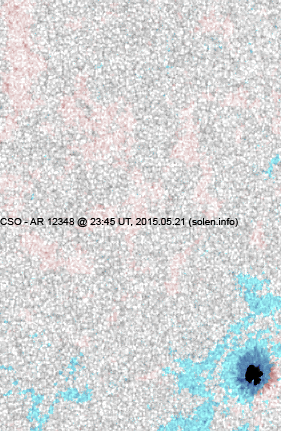

Region 12348 [S10W31] decayed slowly and quietly.
Region 12349 [S21W07] produced the single C1 flare of the day.
Region 12350 [S17W19] decayed slowly and quietly.

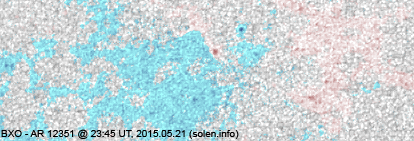

Region 12351 [N23E23] decayed slowly and quietly.

Spotted regions not numbered (or interpreted differently) by SWPC:

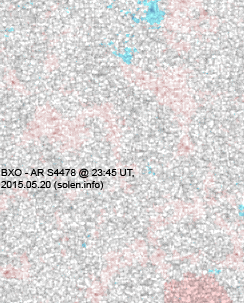

S4478 [N16W20] was quiet and stable.

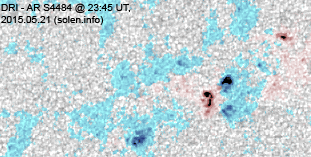

S4484 [N06E24] developed further and has polarity intermixing. C flares are possible.
New region S4487 [N08E10] emerged early in the day and developed slowly.
New region S4489 [N19E46] emerged with penumbra spots.
New region S4490 [S11E10] emerged with penumbra spots.

C2+ flares:

Magnitude Peak time (UTC) Location AR Recorded by Comment


Flare activity according to SDO/EVE/ESP XRS-B proxy

Coronal mass ejections (CMEs)

May 19-20: No obviously Earth directed CMEs were observed.
May 21: A partial halo CME was observed late on May 21 and early on May 22. It is not yet clear if the CME source was backsided or on the visible disk. A filament eruption in the central northern hemisphere starting near 20h UT may have been the source, in that case the CME could have Earth directed components.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

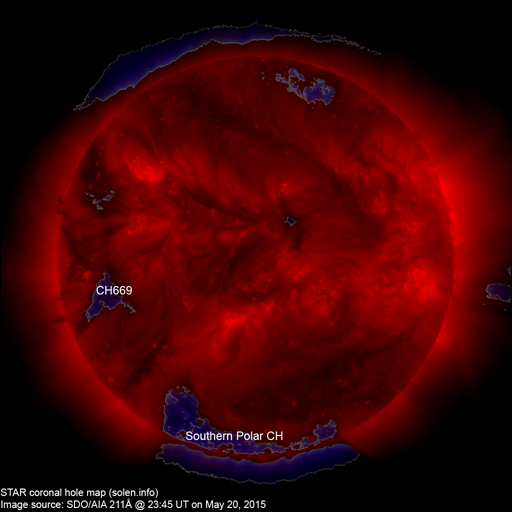

A recurrent southern hemisphere coronal hole (CH669) will likely rotate into an Earth facing position on May 24-25, as will a northern hemisphere coronal hole (CH670).

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on May 22-24. Late on May 24 and on May 25 there is a chance of a CME arrival if the CME observed on May 21/22 was caused by an observed filament eruption.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

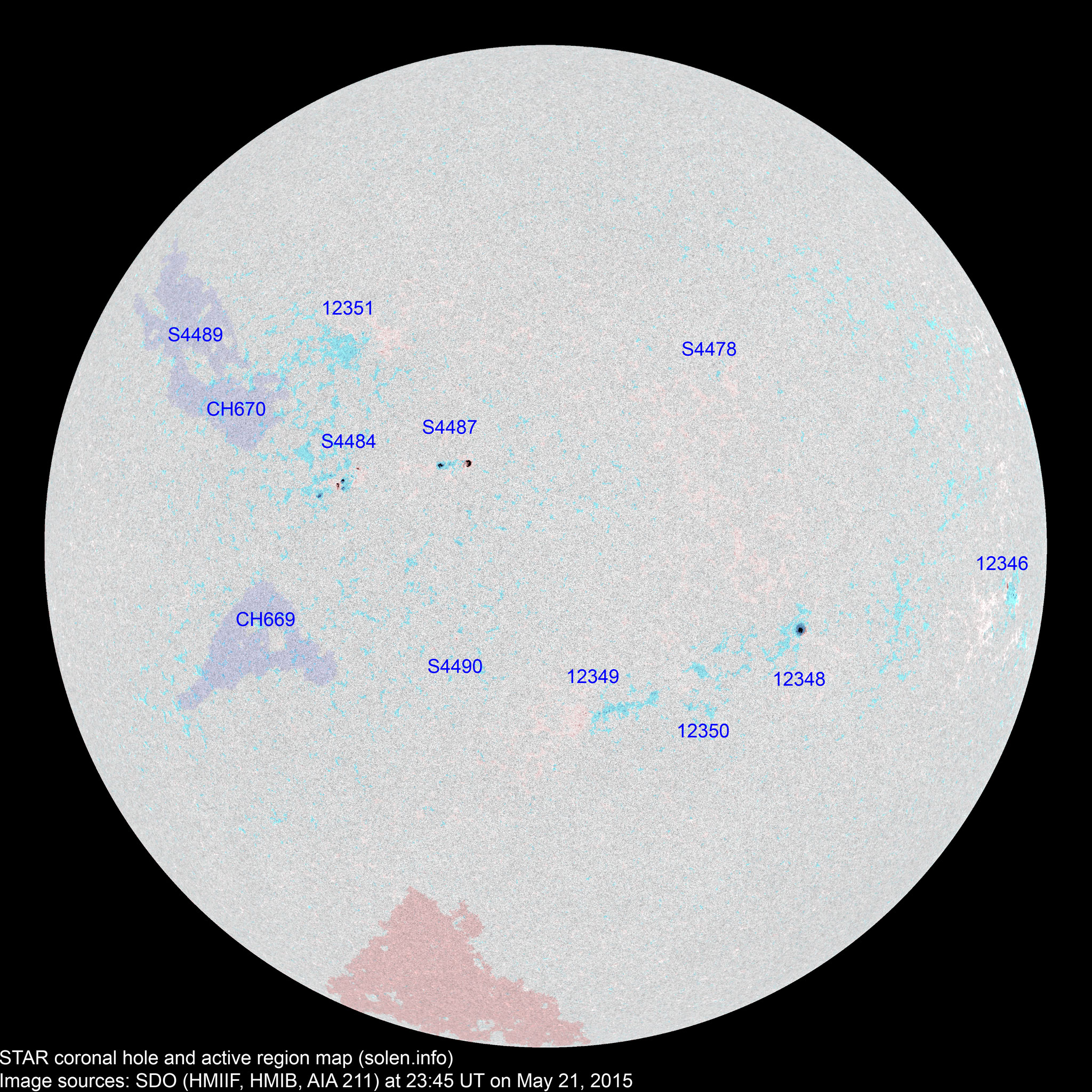

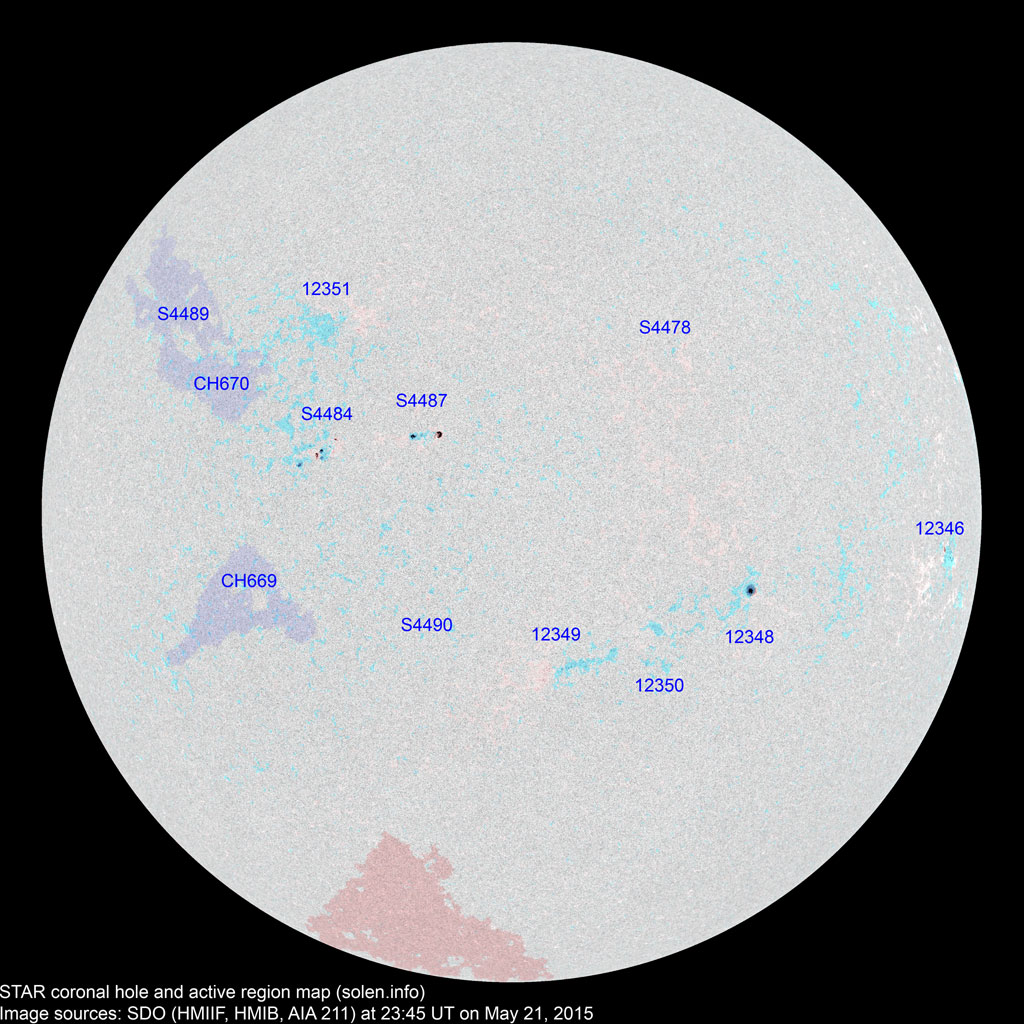

(Click on image for 2K resolution) Compare to the previous day's image.

0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12344 2015.05.10       S10W81
12346 2015.05.10
2015.05.11
2 4 3 S06W69 0020 CRO BXO



12347 2015.05.10
2015.05.11
      N04W76
12348 2015.05.12
2015.05.14
1 4 1 S11W32 0040 HAX CSO
S4466 2015.05.12       N13W49
S4467 2015.05.12       N23W43
S4474 2015.05.16       S09W44
12349 2015.05.17
2015.05.18
3 9 5 S21W10 0010 BXO BXO location: S21W07
12350 2015.05.17
2015.05.18
  3   S15W21 0005   AXX
12351 2015.05.17
2015.05.19
  9 4 N22E20 0020   BXO
S4478 2015.05.17   5   N16W20 0010   AXX
S4480 2015.05.18       S20W59
S4484 2015.05.20   16 7 N06E24 0060   DRI beta-gamma
S4485 2015.05.20       S08E45
S4486 2015.05.20       N12E36
S4487 2015.05.21   4 3 N08E10 0070   DRO
S4489 2015.05.21   2   N19E46 0003   BXO
S4490 2015.05.21   2 1 S11E10 0006   BXO
Total spot count: 6 58 24
Sunspot number: 36 158 94  (total spot count + 10 * number of spotted regions)
Weighted SN: 14 69 35  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 22 55 52 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1) (solar max) 7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 79.7 (-0.8) 6.72
2014.07 137.4 141.8 72.5 78.5 (-1.2) 4.50
2014.08 124.7 127.9 74.7 75.5 (-3.0) 7.71
2014.09 146.6 148.1 87.6 70.8 (-4.7) 9.78
2014.10 153.4 152.9 60.6 67.3 (-3.5) 8.96
2014.11 154.8 151.4 70.1 (64.9 projected, -2.4) 9.33
2014.12 158.7 153.8 78.0 (62.6 projected, -2.3) 11.24
2015.01 141.9 137.3 67.0 (60.4 projected, -2.2) 9.46
2015.02 129.1 126.0 44.8 (58.7 projected, -1.7) 9.92
2015.03 125.9 124.6 38.4 (56.3 projected, -2.4) 16.14
2015.04 128.8 129.7 54.4 (53.7 projected, -2.6) 10.73
2015.05 (131.6)   68.0 (2A) / 100.4 (2B) / 80.5 (2C) (51.5 projected, -2.2) (9.5)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
