Recent activity

The geomagnetic field was very quiet on November 22. Solar wind speed at SOHO ranged between 335 and 360 km/s.

Solar flux at 20h UTC on 2.8 GHz was 122.9 (increasing 16.7 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 104.9. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.0). Three hour interval K indices: 11100011 (planetary), 01001111 (Boulder).

The background x-ray flux is at the class B4 level.

At the time of counting spots (see image time), spots were observed in 7 active regions using 2K resolution (SN: 150) and 6 active regions using 1K resolution (SN: 97) SDO images on the visible solar disk.

Region 12454 [N06W53] decayed slowly and quietly. This is AR 12456 to SWPC.

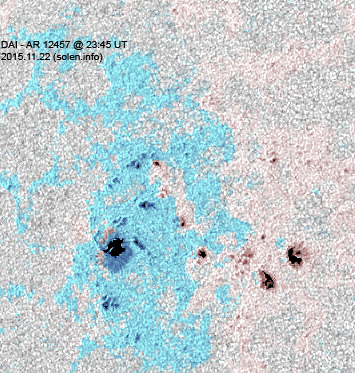

Region 12457 [N12E38] developed again and has minor polarity intermixing. C flares are possible.
New region 12458 [N08E73] rotated partly into view on November 21 and was numbered the next day by SWPC.

Spotted regions not numbered (or interpreted differently) by SWPC:
S4899 [S22W32] was quiet and stable.
S4902 [N13W55] decayed slowly and produced several flares. This is AR 12454 to SWPC.
S4912 [N24E53] was quiet and stable.
S4915 [N16W51] decayed slowly and still has a weak magnetic delta.

C2+ flares:

Magnitude Peak time (UTC) Location AR Recorded by Comment
C4.5 01:55   S4902 SDO/EVE
C5.1 02:10 N14W39 S4902 GOES15 C6.4 @ SDO/EVE
C5.6 05:38   S4902 GOES15
C2.4 10:23   12457 GOES15
C2.0 16:57 N11W44 S4902 GOES15
C2.6 22:46 N15W50 S4915 GOES15

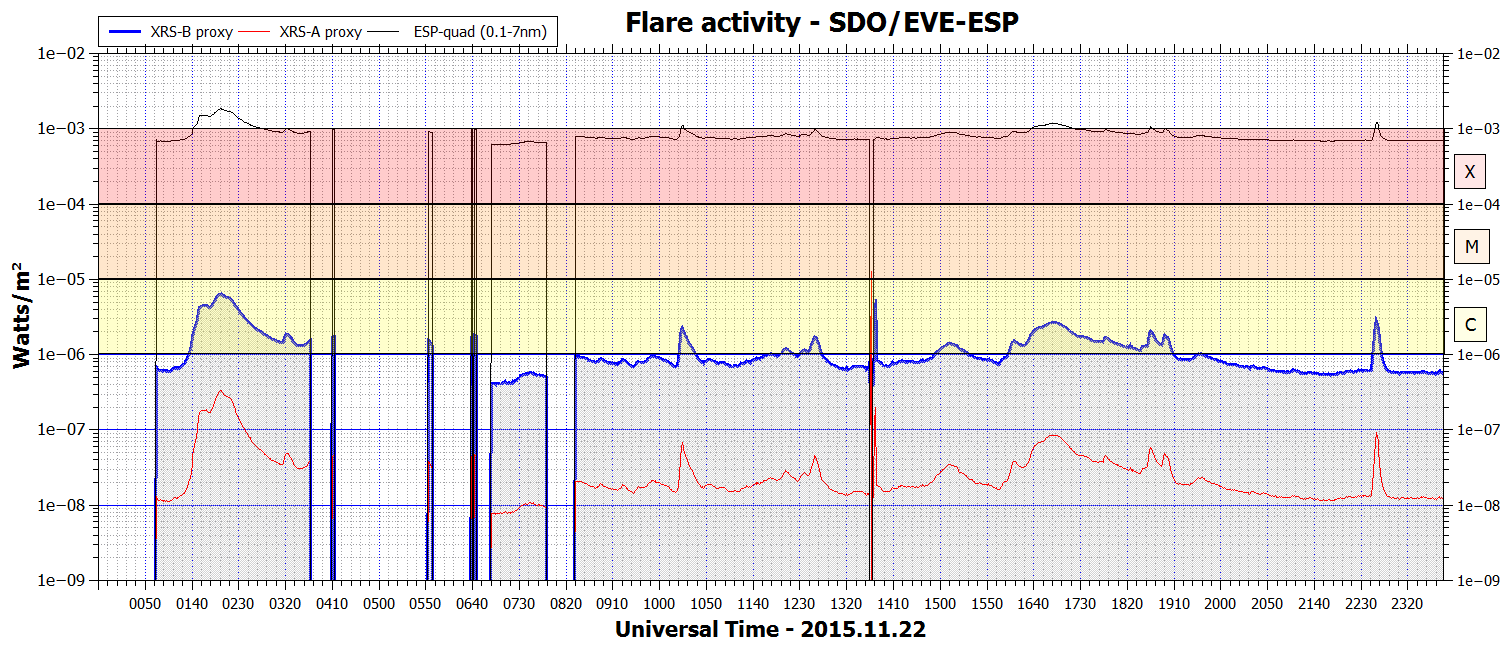

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

November 20-21: No obviously Earth directed CMEs were observed in available LASCO imagery.
November 22: A CME was observed off the east limb following a filament eruption 07-10 UT stretching from the central meridian well into the southeast quadrant. There is a slight chance that a component of this CME could be geoeffective.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

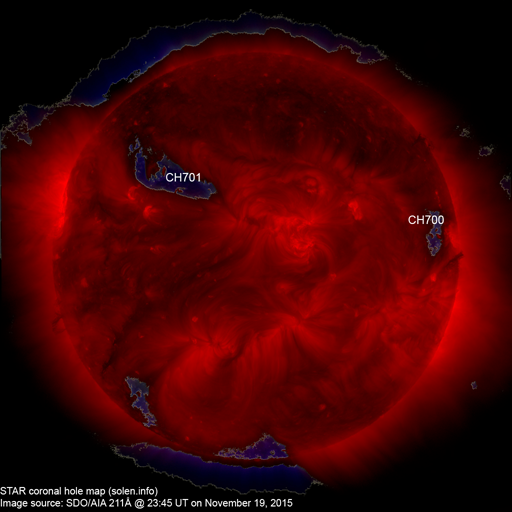

A northern hemisphere coronal hole (CH701) was in an Earth facing position on November 21-22, CH701 may be too far to the north to become geoeffective. A southern hemisphere coronal hole (CH702) will rotate across the central meridian on November 24.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on November 23-25. There is a minor possibility of a weak disturbance on November 24-25 due to effects from CH701.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

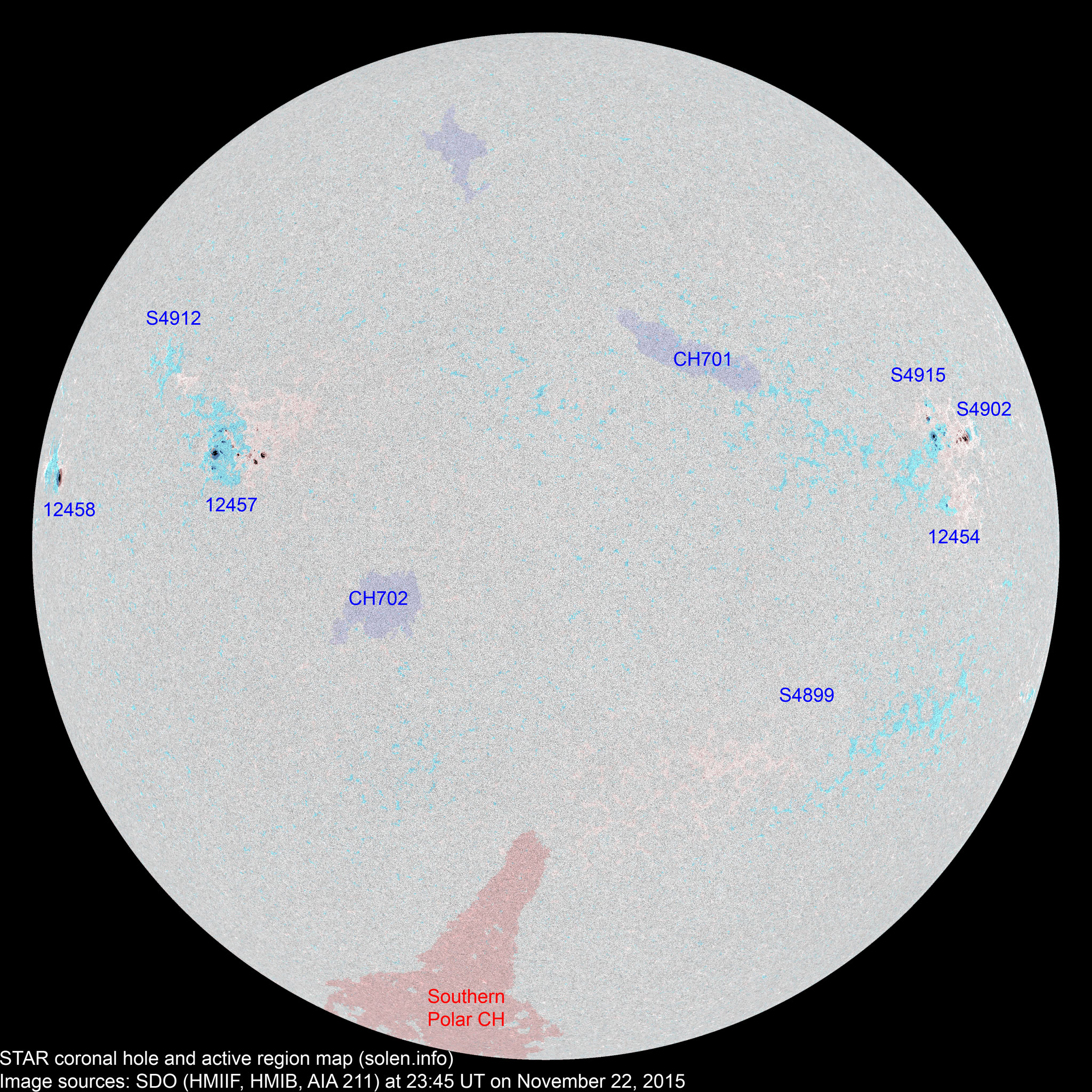

Active solar regions


(Click on image for 2K resolution) Compare to the previous day's image.

0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12454 2015.11.12
2015.11.13
16 3 2 N13W53 0130 DAC BXO area: 0015

location: N06W53

SWPC has renumbered this as AR 12456

12455 2015.11.13
2015.11.14
      N15W74

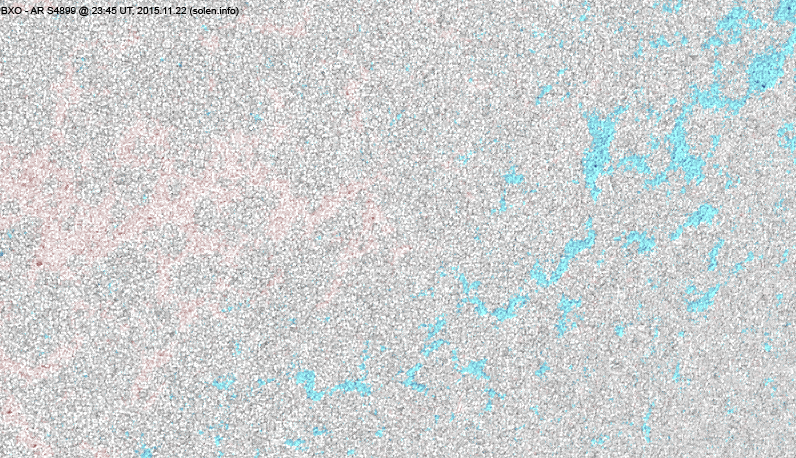

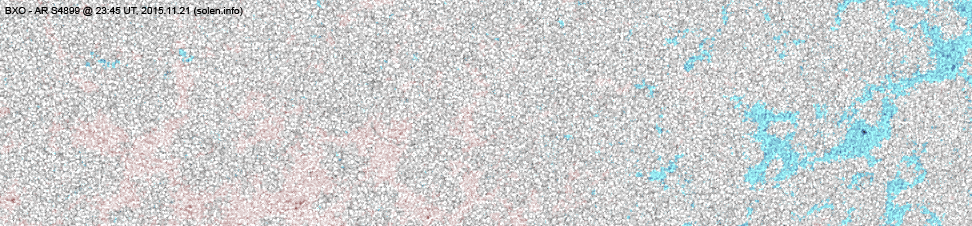

S4899 2015.11.15   7 2 S22W32 0016   BXO images/AR_S4899_20151122_2345.png images/AR_S4899_20151121_2345.png

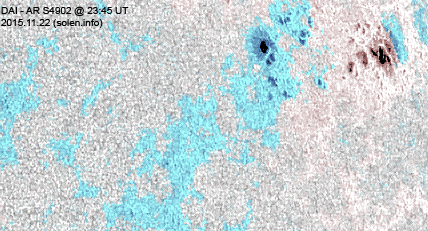

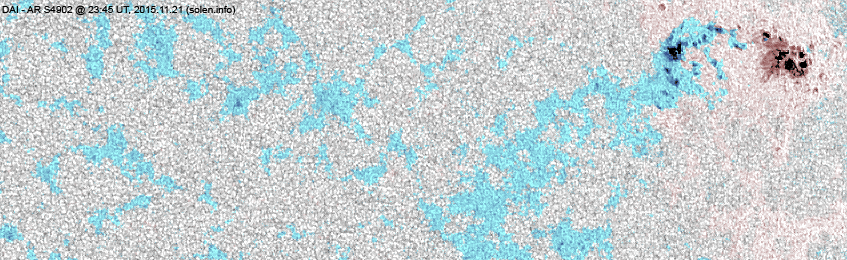

S4902 2015.11.16   23 11 N13W55 0200   DAI images/AR_S4902_20151121_2345.png this is AR 12454 to SWPC
12456 2015.11.18 6     N06W53 0020 BXO       see AR 12454 and AR S4902
12457 2015.11.18
2015.11.19
13 36 17 N11E36 0120 DAI DAI beta-gamma
S4906 2015.11.19       N14W05
S4907 2015.11.19       N19E02
S4908 2015.11.19       S22W20
S4910 2015.11.19       N03W39
S4912 2015.11.20   2   N24E53 0002   AXX
S4914 2015.11.21       S37W16
S4915 2015.11.21   4 3 N16W51 0020   DRO
12458 2015.11.21
2015.11.22
1 5 2 N09E72 0060 HAX CSO area: 0200

location: N08E73

S4917 2015.11.21       S11E04
S4918 2015.11.21       S13W55
Total spot count: 36 80 37
Sunspot number: 76 150 97  (total spot count + 10 * number of spotted regions)
Weighted SN: 51 98 55  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 84 83 82 k * (sunspot number)
As of July 1, 2015: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.85 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2014.09 146.6 148.1 130.0 101.9 (-6.4) 9.78
2014.10 153.4 152.9 90.0 97.3 (-4.6) 8.96
2014.11 154.8 151.4 103.6 94.7 (-2.6) 9.33
2014.12 158.7 153.8 112.9 92.2 (-2.5) 11.24
2015.01 141.9 137.3 93.0 89.3 (-2.9) 9.46
2015.02 129.1 126.0 66.7 86.1 (-3.2) 9.92
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.9 (-3.3) 10.73
2015.05 120.0 122.6 88.8 (76.3 projected, -2.6) 8.29
2015.06 122.3 126.1 66.5 (72.6 projected, -3.7) 13.15
2015.07 107.0 110.8 66.4 (68.9 projected, -3.7) 8.83
2015.08 105.4 108.0 64.6 (67.7 projected, -1.2) 14.58
2015.09 101.7 102.7 78.1 (68.0 projected, +0.3) 15.78
2015.10 104.1 103.3 61.7 (67.1 projected, -0.9) 14.02
2015.11 (111.2)   47.2 (2A) / 64.4 (2B) / 88.6 (2C) (65.0 projected, -2.1) (14.4)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
