The geomagnetic field was quiet to minor storm on November 30. Solar wind speed at SOHO ranged between 441 and 564 km/s. A high speed stream associated with CH703 became the dominant solar wind source early in the day. After noon the Bz component of the interplanetary magnetic field was near neutral resulting in quiet conditions during the latter half of the day.
Solar flux at 20h UTC on 2.8 GHz was 95.7 (decreasing 21.8 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 104.5. The Potsdam WDC planetary A index was 16 (STAR Ap - based on the mean of three hour interval ap indices: 16.1). Three hour interval K indices: 34542122 (planetary), 24442221 (Boulder).

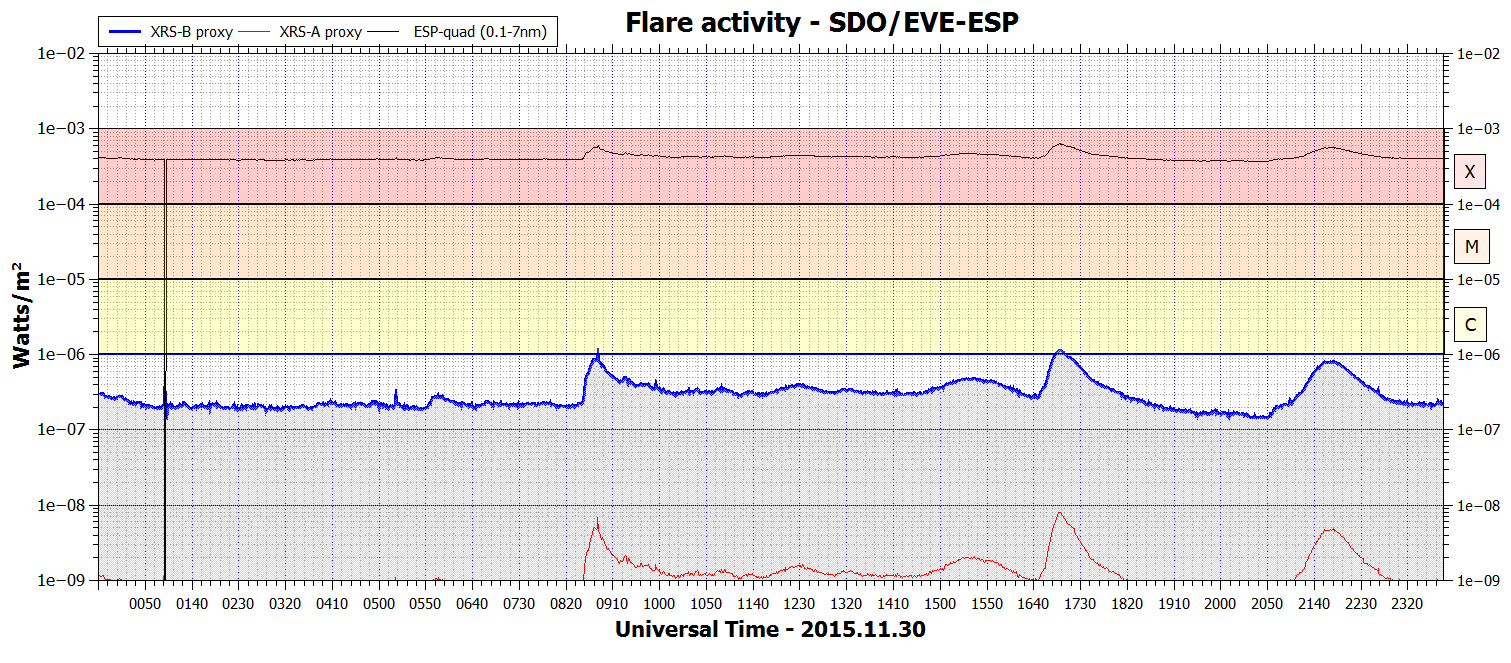

The background x-ray flux is at the class B2 level.
At the time of counting spots (see image time), spots were observed in 7 active regions using 2K resolution (SN: 111) and 4 active regions using 1K resolution (SN: 61) SDO images on the visible solar disk.
Region 12457 [N11W65] decayed slowly and quietly.
Region 12458 [N08W37] was mostly quiet and stable.
Region 12459 [N05W04] was quiet and stable.
Region 12460 [N12W40] was quiet and stable.
Region 12461 [S06W68] decayed slowly and quietly.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4931 [N21E51] lost the leader spot and gained a trailing spot.
New region S4933 [N13E33] emerged with a tiny spot.
|Magnitude||Peak time (UTC)||Location||AR||Recorded by||Comment|
November 28-30: No obviously Earth directed CMEs were observed in available LASCO imagery.
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent southern hemisphere coronal hole (CH703) was in an Earth facing position on November 27-28. A recurrent northern hemisphere coronal hole (CH704) with a trans equatorial extension could rotate into an Earth facing position on December 2-6.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on December 1 due to weak effects from CH703 and quiet on December 2-4.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

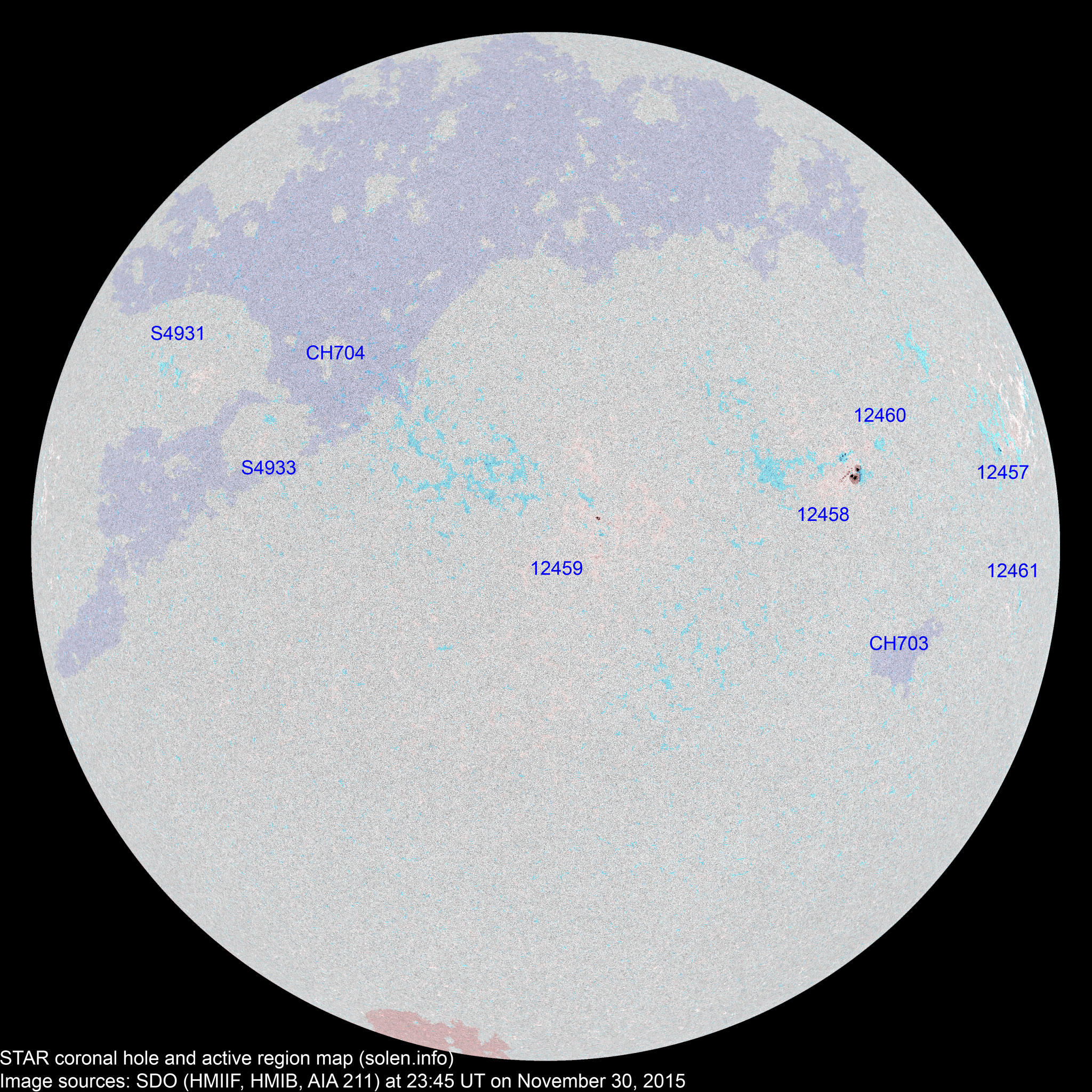

(Click on image for 2K resolution) Compare to the previous day's image.
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||11||41||21|
|Sunspot number:||51||111||61||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||24||49||29||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||56||61||52||k * (sunspot number)
As of July 1, 2015: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.85 for MSN 1K (MSN=Magnetic Sunspot Number)
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average
|166.3||146.1 (cycle peak)||110.5 (+1.2)||10.70|
|2014.04||143.9||144.8||112.5||116.4 (+2.1) (solar max)||7.88|
|2015.05||120.0||122.6||88.8||(76.3 projected, -2.6)||8.29|
|2015.06||122.3||126.1||66.5||(72.6 projected, -3.7)||13.15|
|2015.07||107.0||110.8||66.4||(68.9 projected, -3.7)||8.83|
|2015.08||105.4||108.0||64.6||(67.7 projected, -1.2)||14.58|
|2015.09||101.7||102.7||78.1||(68.0 projected, +0.3)||15.78|
|2015.10||104.1||103.3||61.7||(67.1 projected, -0.9)||14.02|
|2015.11||(109.3)||61.9 (2A/2B) / 83.2 (2C)||(65.0 projected, -2.1)||(12.0)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
