The geomagnetic field was quiet on February 4. Solar wind speed at SOHO ranged between 360 and 460 km/s.
Solar flux at 20h UTC on 2.8 GHz was 123.3 (increasing 14.8 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 104.7. The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.9). Three hour interval K indices: 00122211 (planetary), 00213312 (Boulder).

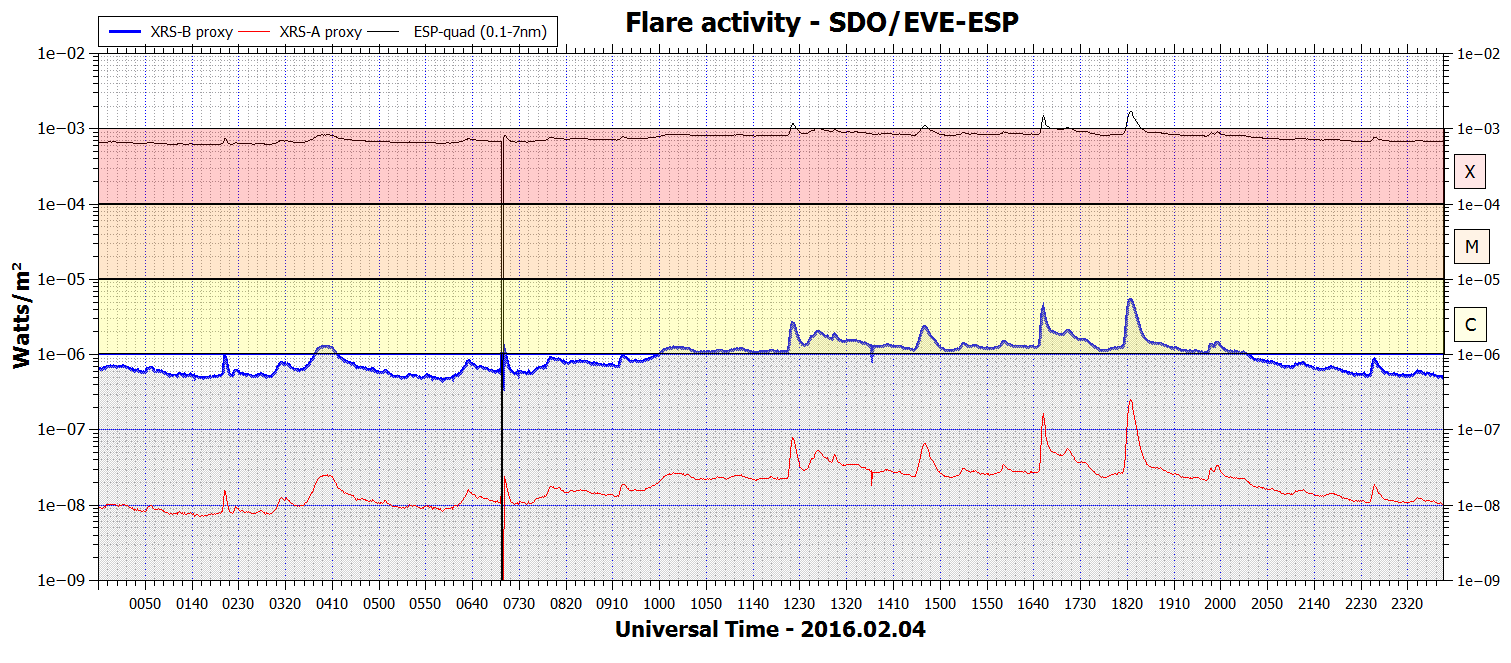

The background x-ray flux is at the class B4 level.
At the time of counting spots (see image time), spots were observed in 13 active regions using 2K resolution (SN: 270) and 8 active regions using 1K resolution (SN: 140) SDO images on the visible solar disk.
Region 12489 [N10W85] rotated quietly to the
Region 12490 [S20W70] decayed in the trailing spot section and produced a few low level C flares.

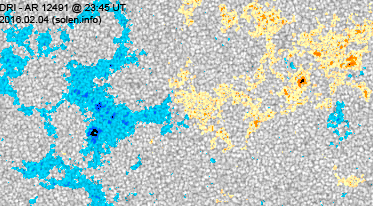

Region 12491 [N02E17] decayed slowly and quietly.

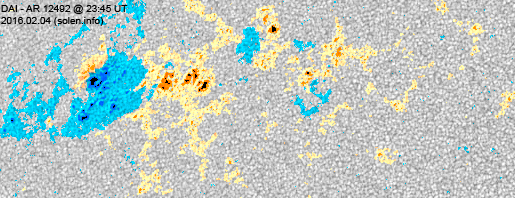

Region 12492 [N14E38] gained a few spots and was quiet.
Region 12493 [S06W43] decayed slowly and quietly.
New region 12494 [S11E10] emerged quickly early on February 3 and was numbered by SWPC the next day. The region developed rapidly and has a small magnetic delta in a central penumbra. An M class flare is possible.
Spotted regions not numbered (or interpreted differently) by SWPC:
S5076 [N16E07] decayed slowly and quietly.
S5077 [S09W08] was quiet and stable.

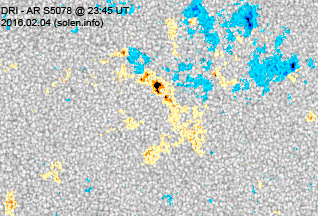

S5078 [S08W31] was quiet and stable.
S5080 [N04E45] was quiet and stable.
New region S5081 [N09E72] rotated into view.
New region S5082 [N13E71] rotated into view.
New region S5083 [S23W23] was observed with tiny spots.
|Magnitude||Peak time (UT)||Location||AR||Recorded by||Comment|
February 2-4: No obviously Earth directed CMEs were observed in available LASCO imagery.
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent trans equatorial coronal hole (CH713) rotated across the central meridian on February 4-5.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on February 5-6. Late on February 7 and on February 8 effects from CH713 could cause unsettled to active conditions.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

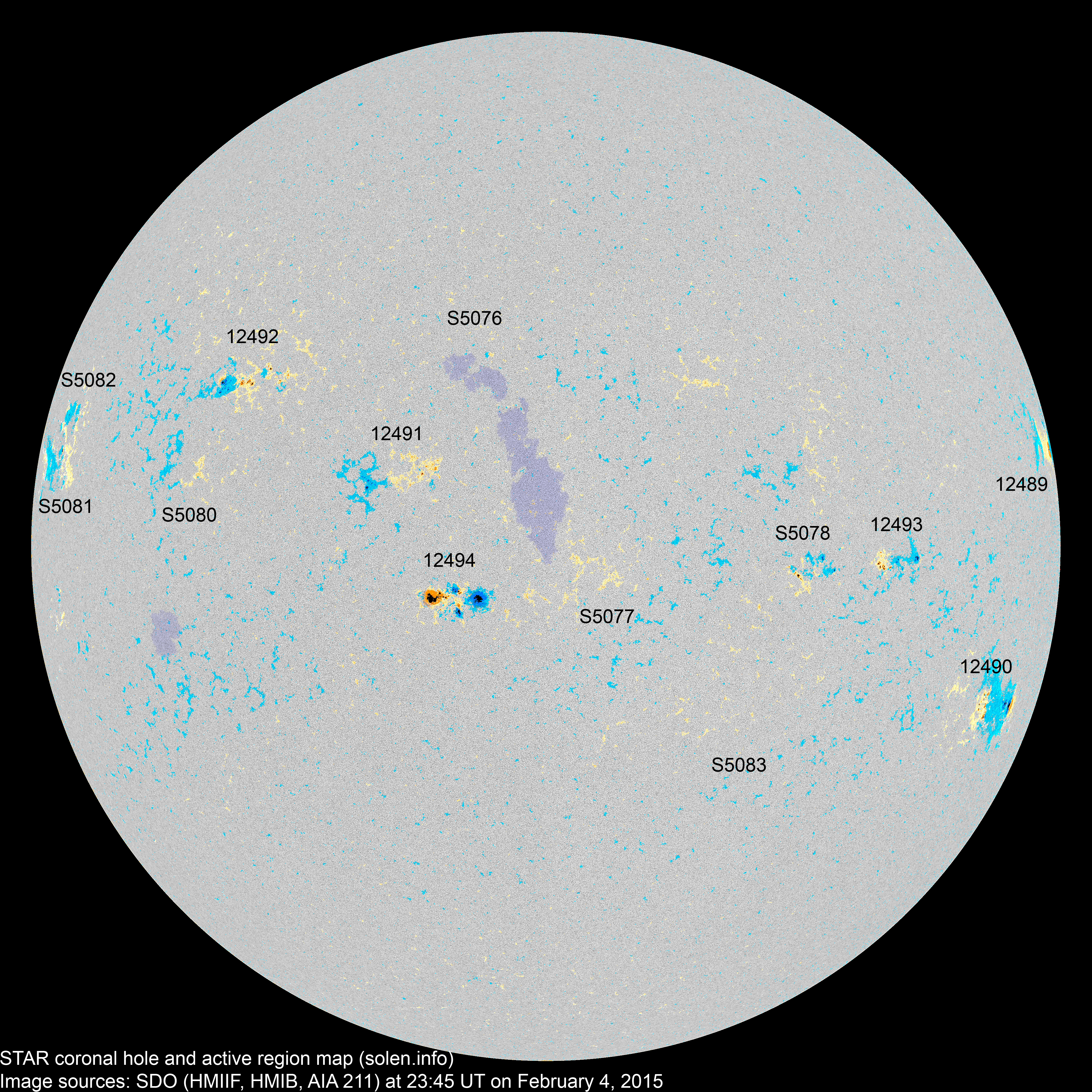

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image

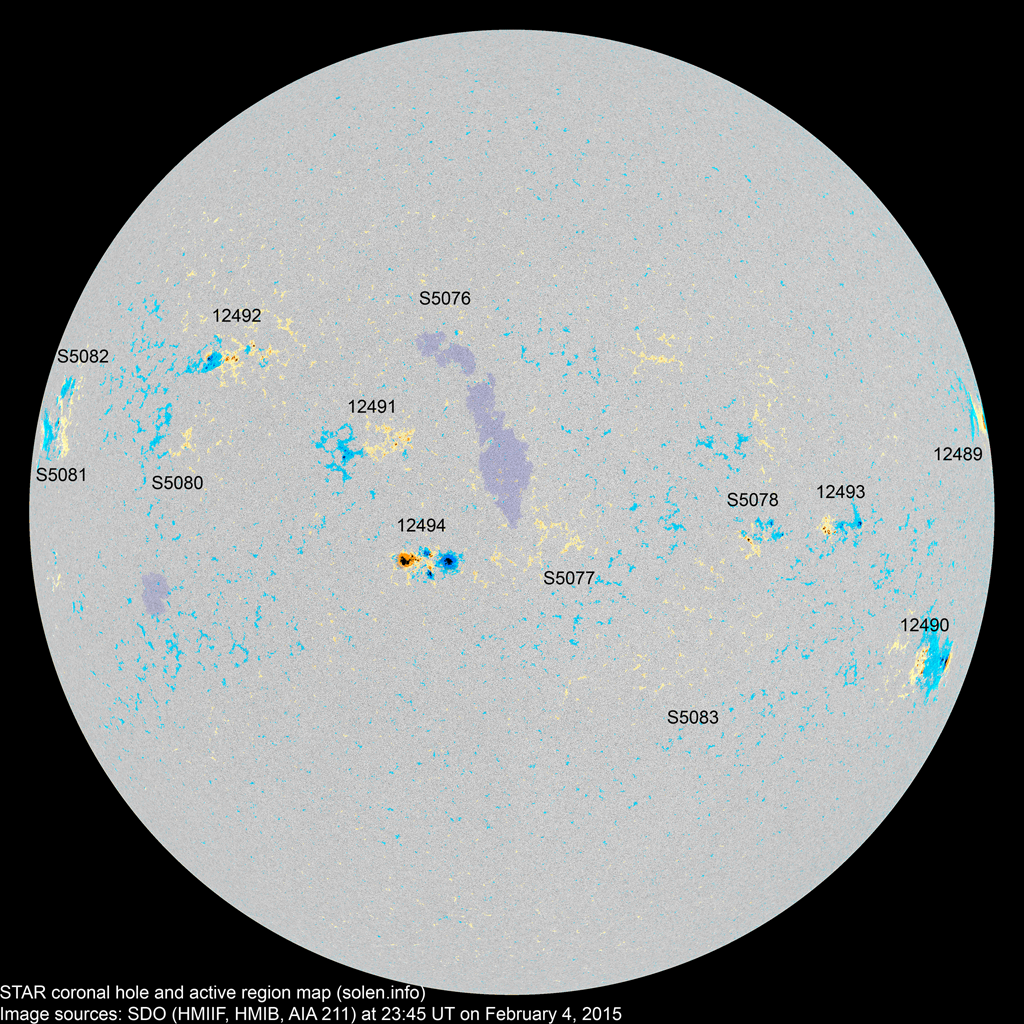

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||35||140||60|
|Sunspot number:||95||270||140||(total spot count + 10 * number of spotted regions)|
|Relative sunspot number (Wolf number):||105||149||119||k * (sunspot number)
As of July 1, 2015: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.85 for MSN 1K (MSN=Magnetic Sunspot Number)
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average
|166.3||146.1 (cycle peak)||110.5 (+1.2)||10.70|
|2014.04||143.9||144.8||112.5||116.4 (+2.1) (solar max)||7.88|
|2015.08||105.4||108.0||64.6||(66.1 projected, -2.1)||14.58|
|2015.09||101.7||102.7||78.1||(66.1 projected, +0.0)||15.78|
|2015.10||104.1||103.3||61.7||(65.7 projected, -0.4)||14.02|
|2015.11||109.3||106.9||63.2||(63.6 projected, -2.1)||12.09|
|2015.12||113.1||109.5||57.7||(61.9 projected, -1.7)||14.29|
|2016.01||103.4||100.2||56.6||(60.2 projected, -1.7)||10.0|
|2016.02||109.4||9.2 (2A) / 66.8 (2B) / 77.9 (2C)||(57.8 projected, -2.4)||(7.0)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
