Recent activity

The geomagnetic field was very quiet on July 5. Solar wind speed at SOHO ranged between 288 and 368 km/s.

Solar flux at 20h UTC on 2.8 GHz was 72.4 (decreasing 7.7 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 90.8. The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 2.9). Three hour interval K indices: 11100001 (planetary), 23211211 (Boulder).

The background x-ray flux is at the class A8 level.

At the time of counting spots (see image time), spots were observed in 4 active regions using 2K resolution (SN: 47) and 2 active regions using 1K resolution (SN: 23) SDO images on the visible solar disk.

New region 12559 [N11W19] emerged early in the day, then decayed slowly.
New region 12560 [S08E56] rotated into view on July 4 and was numbered the next day by SWPC.

Spotted regions not numbered (or interpreted differently) by SWPC:
S5346 [N16W46] was quiet and stable.
S5351 [N27W22] gained a tiny leader spot.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment

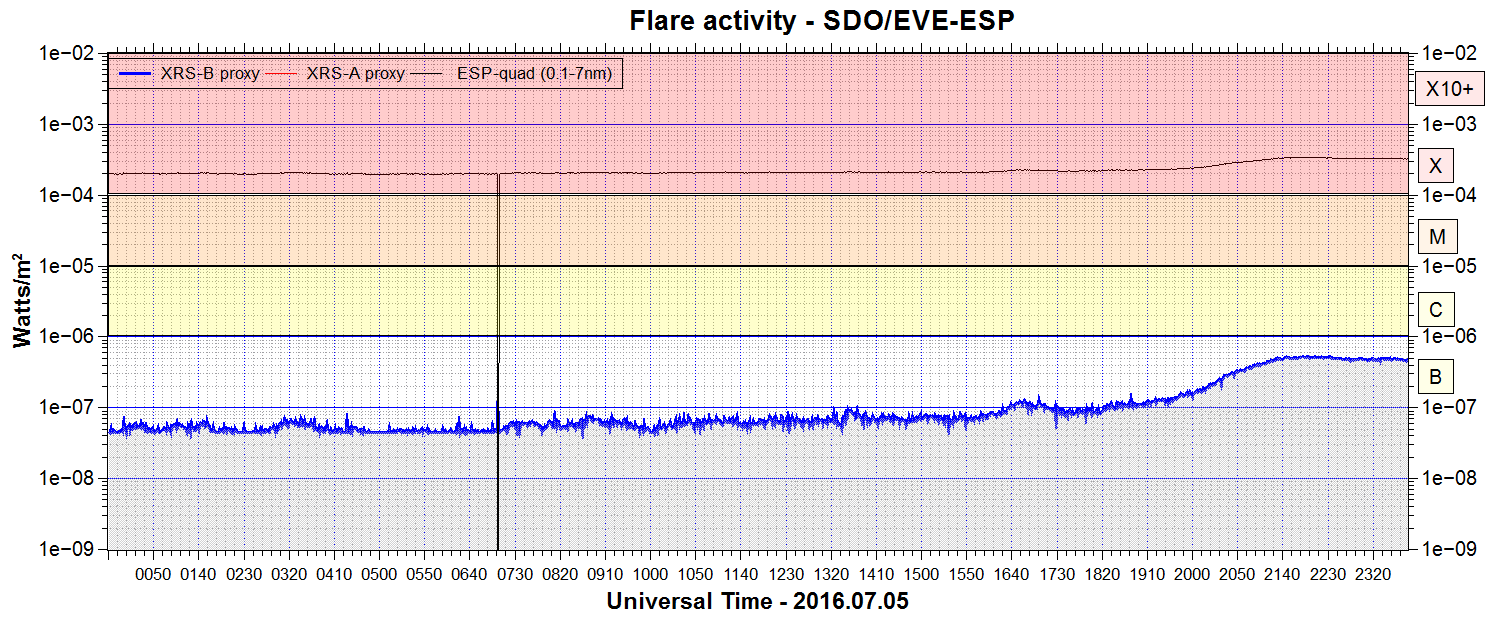

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

July 3-5: No obviously Earth directed CMEs were observed in available LASCO imagery. A filament eruption in the northwest quadrant late on July 5 was associated with a CME off the northwest limb, no obviously Earth directed components were observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent trans equatorial coronal hole (CH746) was in an Earth facing position on July 4-7. A poorly defined trans equatorial coronal hole (CH747) will likely rotate across the central meridian on July 6. A recurrent trans equatorial coronal hole (CH748) will likely become Earth facing on July 8.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet most of July 6. Quiet to minor storm conditions are possible from late on July 6 until July 8 as a high speed stream associated with CH746 becomes geoeffective.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

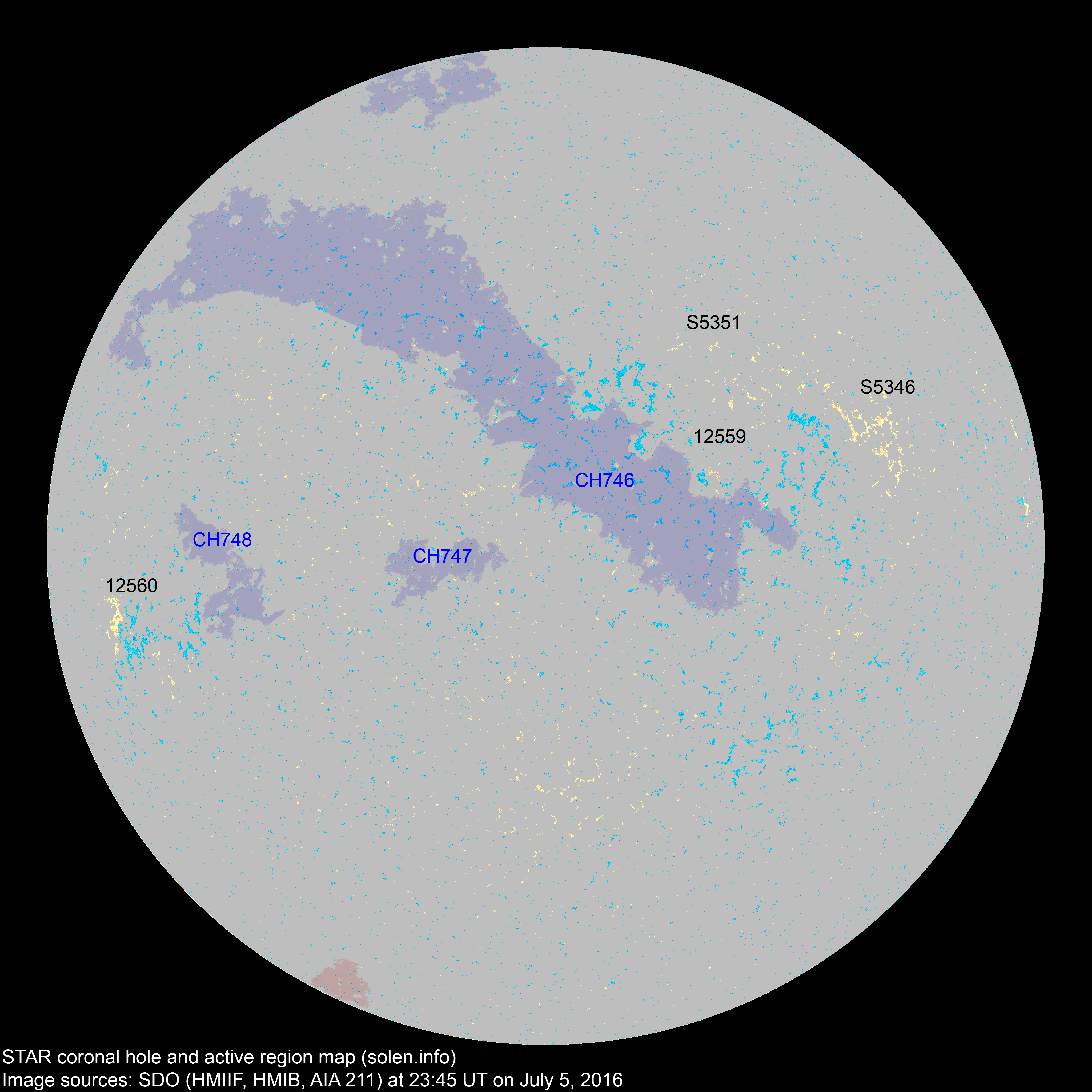

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
S5346 2016.06.27   3   N16W46 0003   AXX
S5348 2016.06.30       S19W15
S5349 2016.07.02       N01W35
S5351 2016.07.03   1   N27W22 0003   AXX
S5352 2016.07.03       N12E12
S5354 2016.07.04       S29E06
12560 2016.07.04
2016.07.05
1 1 1 S08E55 0010   AXX area: 0006
12559 2016.07.05 2 2 2 N10W20 0010   BXO   area: 0006
Total spot count: 3 7 3
Sunspot number: 23 47 23  (total spot count + 10 * number of spotted regions)
Weighted SN: 3 7 3  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 25 26 18 k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.04 128.8 129.7 75.3 78.9 (-3.3) 10.73
2015.05 120.0 122.6 88.8 76.1 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.1 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.3 (-3.8) 8.83
2015.08 105.4 108.0 64.6 66.4 (-1.9) 14.58
2015.09 101.7 102.7 78.1 66.0 (-0.4) 15.78
2015.10 104.1 103.3 61.7 64.4 (-1.6) 14.02
2015.11 109.3 106.9 63.2 61.4 (-3.0) 12.09
2015.12 113.1 109.5 57.7 57.9 (-3.5) 14.29
2016.01 103.4 100.1 56.6 (54.5 projected, -3.4) 9.4
2016.02 103.6 101.0 57.2 (51.5 projected, -3.0) 9.9
2016.03 91.5 90.6 54.9 (47.9 projected, -3.4) 10.58
2016.04 93.3 94.0 38.0 (44.5 projected, -3.4) 9.03
2016.05 93.0 95.3 52.1 (41.8 projected, -2.7) 11.65
2016.06 81.9 84.5 20.9 (39.3 projected, -2.5) 8.2
2016.07 (72.3)   0.7 (2A) / 4.6 (2B) / 24.7 (2C) (36.6 projected, -2.7) (5.6)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
