Recent activity

The geomagnetic field was quiet on March 18. Solar wind speed at SOHO ranged between 363 and 457 km/s.

Solar flux at 20h UTC on 2.8 GHz was 90.3 (decreasing 9.7 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 100.9. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.8). Three hour interval K indices: 12222222 (planetary), 22322223 (Boulder).

The background x-ray flux is at the class B1 level.

At the time of counting spots (see image time), spots were observed in 5 active regions using 2K resolution (SN: 78) and 5 active regions using 1K resolution (SN: 63) SDO images on the visible solar disk.

Region 12519 [N05W47] was quiet and stable.
Region 12523 [S09W48] decayed slowly and quietly.
Region 12524 [N15E50] decayed slightly losing penumbral area. C flares are still possible.
Region 12525 [N15E05] decayed slowly and quietly.

Spotted regions not numbered (or interpreted differently) by SWPC:
New region S5195 [S04W22] was observed with tiny spots.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment

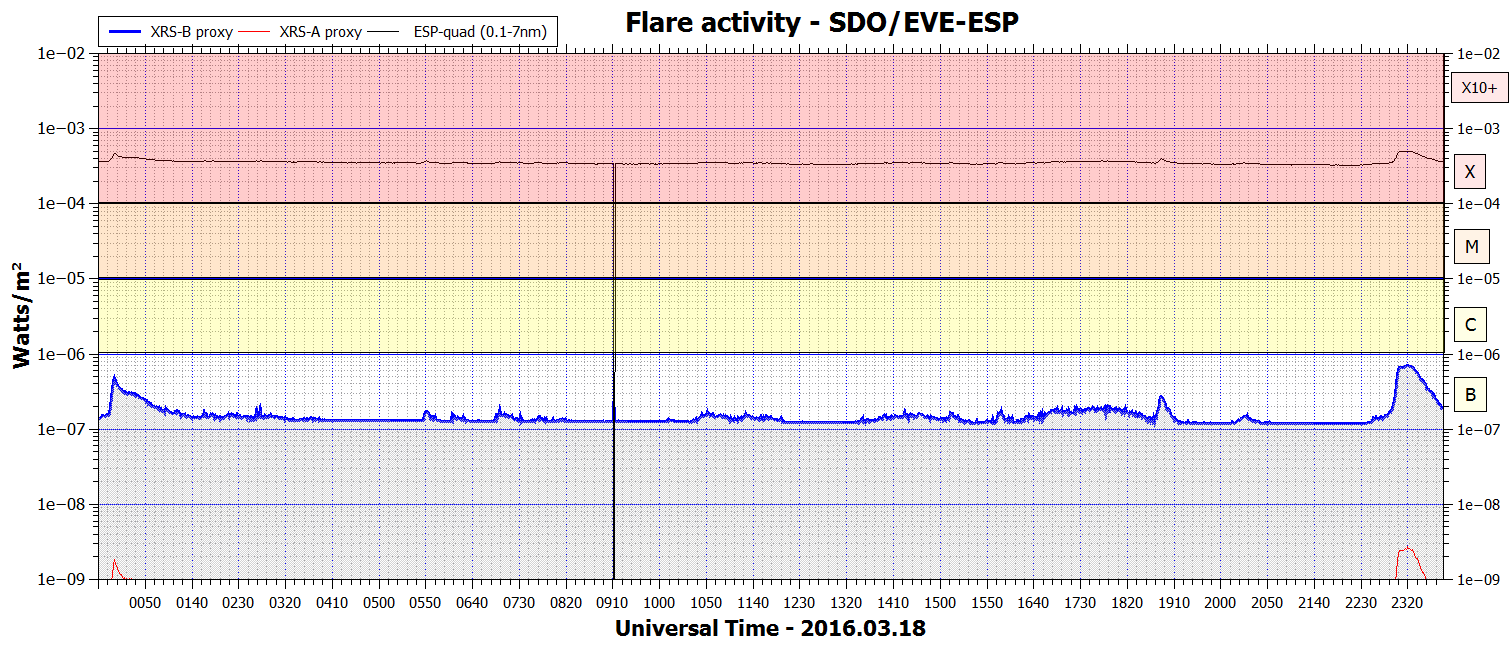

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

March 16-18: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent northern hemisphere coronal hole (CH723) will likely rotate into a potentially geoeffective position on March 18-19.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on March 19-20. Effects from CH723 could cause unsettled and active intervals on March 21-22.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

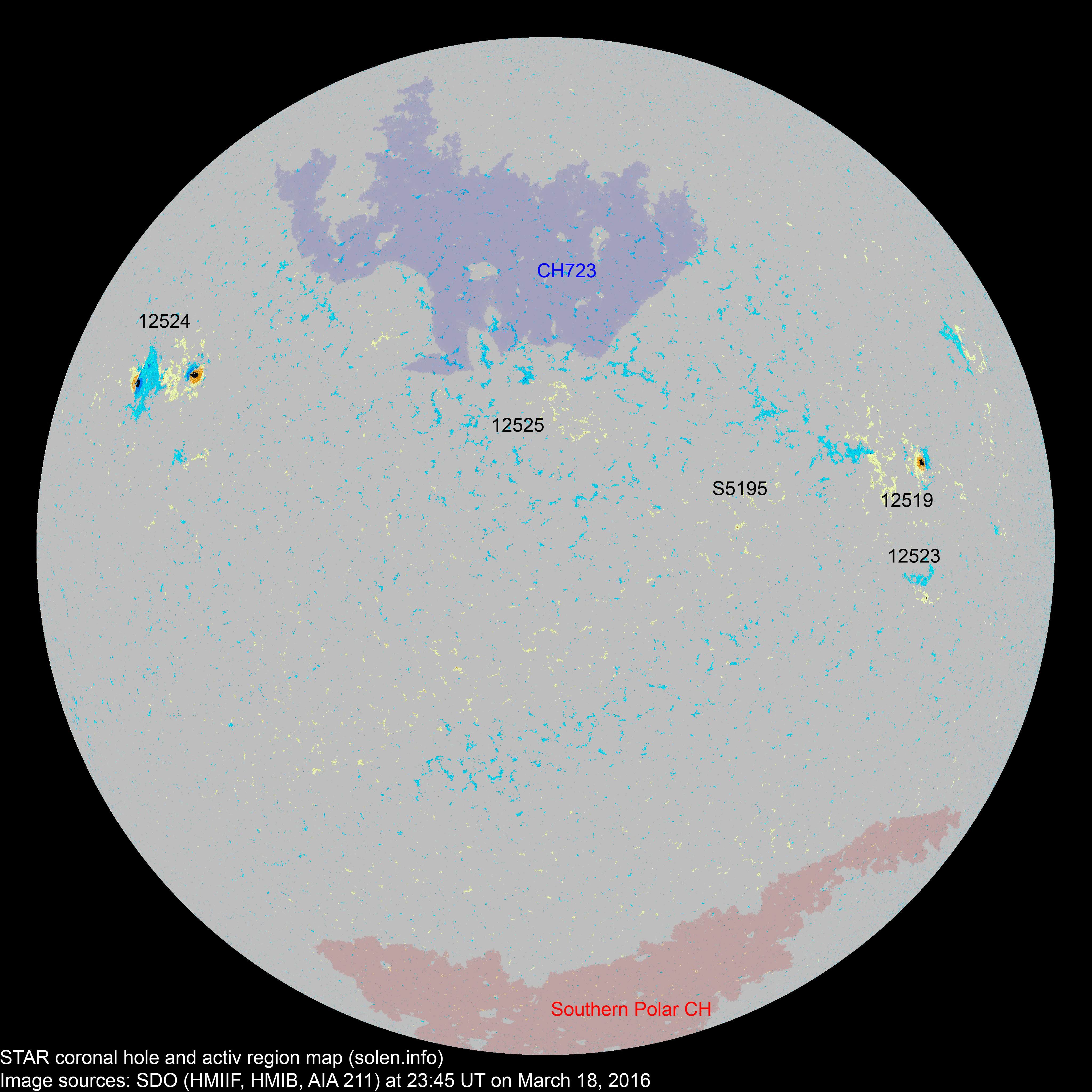

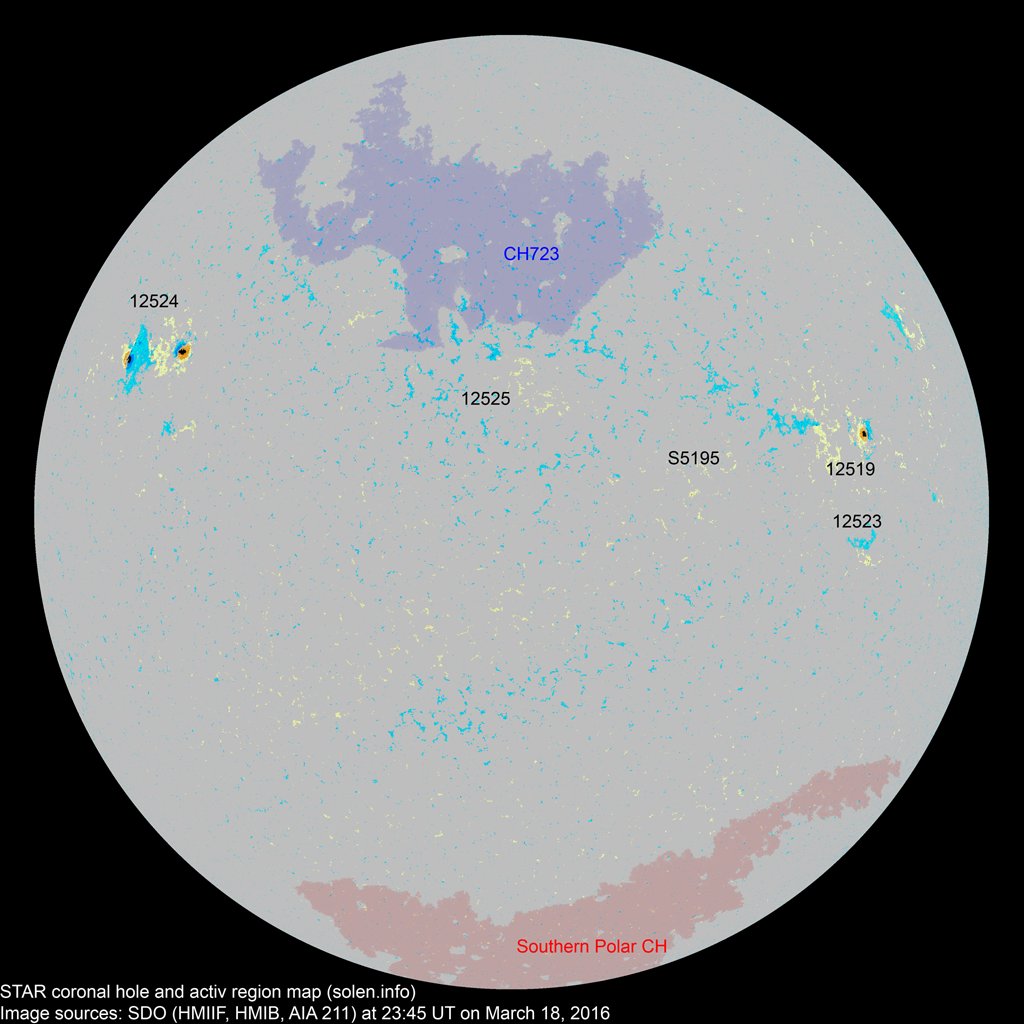

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12521 2016.03.08
2016.03.12
      N18W63
12519 2016.03.09 2 7 3 N05W47 0070 HSX CSO area: 0110
S5175 2016.03.10       S05W51
12520 2016.03.10
2016.03.12
      N04W73
S5185 2016.03.12       S21W43
S5186 2016.03.13       N08W50
12523 2016.03.15
2016.03.16
  3 1 S09W48 0008   BXO
S5189 2016.03.15       S01W42
12524 2016.03.15
2016.03.16
7 9 6 N15E49 0230 EAO EAO

area: 0360

12525 2016.03.16
2016.03.17
  7 2 N13W01 0012   AXX
S5195 2016.03.18   2 1 S04W22 0006   AXX
Total spot count: 9 28 13
Sunspot number: 29 78 63  (total spot count + 10 * number of spotted regions)
Weighted SN: 19 38 23  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 32 35 50 k * (sunspot number)
As of February 19, 2015: k = 1.1 for SWPC, k = 0.45 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.01 141.9 137.3 93.0 89.3 (-2.9) 9.46
2015.02 129.1 126.0 66.7 86.1 (-3.2) 9.92
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.8 (-3.4) 10.73
2015.05 120.0 122.6 88.8 76.0 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.0 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.2 (-3.8) 8.83
2015.08 105.4 108.0 64.6 66.3 (-1.9) 14.58
2015.09 101.7 102.7 78.1 (66.0 projected, -0.3) 15.78
2015.10 104.1 103.3 61.7 (65.3 projected, -0.7) 14.02
2015.11 109.3 106.9 63.2 (63.2 projected, -2.1) 12.09
2015.12 113.1 109.5 57.7 (61.5 projected, -1.7) 14.29
2016.01 103.4 100.1 56.6 (59.8 projected, -1.7) 9.4
2016.02 103.6 101.0 57.2 (57.4 projected, -2.4) 9.9
2016.03 (95.0)   32.3 (2A) / 55.6 (2B) / 64.1 (2C) (54.5 projected, -3.1) (11.0)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
