Solar Terrestrial Activity Report

Last update issued on April 6, 2003 at 04:20 UTC.

[Solar and geomagnetic data - last 4 weeks (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update April 2, 2003)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update April 2, 2003)]
[Graphical comparison of cycles 10, 13, 17, 20 and 23 (last update April 2, 2003)]
[Historical solar and geomagnetic data charts 1954-2002 (last update January 27, 2003)]
[Archived reports (last update April 1, 2003)]

Recent activity

The geomagnetic field was unsettled to minor storm on April 5. Solar wind speed ranged between 443 and 541 km/sec under the influence of a high speed stream from coronal hole CH29.

Solar flux measured at 20h UTC on 2.8 GHz was 137.4. The planetary A index was 23 (STAR Ap - based on the mean of three hour interval ap indices: 23.9).
Three hour interval K indices: 54334444 (planetary), 45233443 (Boulder).

The background x-ray flux is at the class B4 level.

At midnight there were 6 spotted regions on the visible disk. Solar flare activity was low. A total of 9 C class events was recorded during the day. A C2.0 flare at 00:37, a C3.5 flare at 10:16 and a C1.2 flare at 18:56 UTC had an origin behind the southwest limb. A C4.9 long duration event peaking at 15:09 was caused by activity in a hot plage area near the southeast limb.

Region 10321 rotated partially out of view at the northwest limb. Flares: C3.4 at 02:09 and C1.1 at 11:31 UTC.
Region 10325 was quiet and stable.
Region 10326 decayed slowly and was quiet.
Region 10330 was quiet and stable.
New region 10331 emerged in the southern hemisphere near the central meridian. The region is developing slowly.

Spotted regions not yet numbered by SEC/NOAA:
[S129] A new region emerged northwest of region 10324 in the southeast quadrant on March 30. This region developed until April 4 and decayed quickly on April 5. Location at midnight: S13W61. Please note that SEC/NOAA has this as region 10324! Flares: C1.2 at 03:09, C1.2 at 08:51 and C6.9 at 09:16 UTC.

Coronal mass ejections (CMEs)

April 3 and 5: No obviously geoeffective CMEs observed.

April 4: A complex partial halo CME was associated with an M2 long duration event in region S129. This CME could reach Earth on April 7 and cause unsettled to minor geomagnetic storm conditions.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small coronal hole (CH30) in the southern hemisphere was in a geoeffective position on April 5. Another and large coronal hole (CH31) in the southern hemisphere will be in a geoeffective position on April 6-9.

Processed SOHO EIT 284 image at 19:06 UTC on April 5. Any black areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on April 6 and quiet to unsettled on April 7. Quiet to active is likely on April 8 as a high speed stream from CH30 reaches Earth, with unsettled to major storm conditions possible on April 9-13 when the high speed stream from CH31 dominates the solar wind. Long distance medium wave (AM) band propagation along east-west paths over high and upper middle latitudes is very poor, propagation along north-south paths is poor to fair. [Trans Atlantic propagation conditions are currently monitored every night on 1470 kHz. Dominant stations tonight: Radio Cristal del Uruguay.]

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

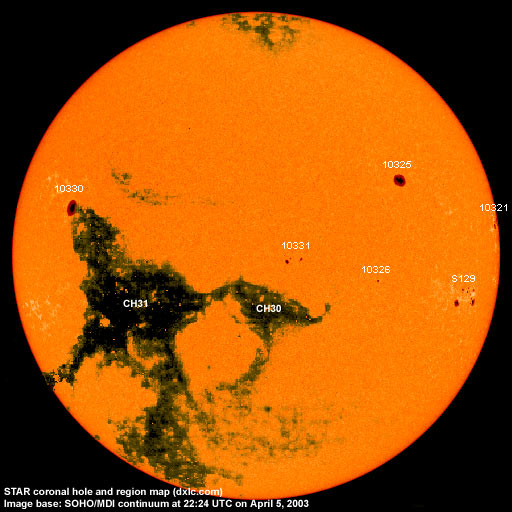

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by SEC/NOAA. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots.

Solar region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10321 2003.03.24 6 4 N09W83 0110 DAI
10324 2003.03.27 19   S12W51
(SEC:
S11W62)
0240 DAI spotless
location corrected,
SECs spots are those
of region S129
10325 2003.03.27 2 1 N13W38 0340 HKX area was 0250
at midnight
10326 2003.03.28 2 1 S11W31 0010 AXX classification was HSX
at midnight
10327 2003.03.31     S06W89     plage
10329 2003.04.03     N02W09     plage
10330 2003.04.03 1 1 N07E49 0400 HKX
10331 2003.04.05 4 5 S07W09 0010 BXO classification was DSO
at midnight, area 0040
S129 emerged on
2003.03.30
  15 S13W61 0090 DAO beta-gamma
see comment for
region 10324
S130 emerged on
2003.04.02
    N07W32     now spotless
Total spot count: 34 27
SSN: 94 87

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2002.03 179.5 98.4 113.3 (-1.3)
2002.04 189.8 120.7 110.5 (-2.9)
2002.05 178.4 120.8 108.8 (-1.7)
2002.06 148.7 88.3 106.2 (-2.6)
2002.07 173.5 99.6 102.7 (-3.5)
2002.08 183.6 116.4 98.7 (-4.0)
2002.09 175.8 109.6 94.6 (-4.1)
2002.10 167.0 97.5 (91.0 predicted, -3.6)
2002.11 168.7 95.0 (85.7 predicted, -5.3)
2002.12 157.2 81.6 (81.3 predicted, -4.4)
2003.01 144.0 79.5 (78.3 predicted, -3.0)
2003.02 124.5 46.2 (73.3 predicted, -5.0)
2003.03 131.4 61.5 (67.6 predicted, -5.7)
2003.04 151.2 (1) 24.9 (2) (62.7 predicted, -4.9)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (SEC/NOAA) sunspot number. The official international sunspot number is typically 25-45% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and interpretations, and partly on data from sources noted in solar links. All time references are to the UTC day. Comments and suggestions are always welcome.
