Recent activity

The geomagnetic field was unsettled to active on February 10. Solar wind speed ranged between 411 and 463 km/sec under the influence of a coronal stream.

Solar flux measured at 20h UTC on 2.8 GHz was 136.2. The planetary A index was 16 (STAR Ap - based on the mean of three hour interval ap indices: 16.8).
Three hour interval K indices: 34433333 (planetary), 34432233 (Boulder).

The background x-ray flux is at the class B3 level.

At midnight there were 9 spotted regions on the visible disk, 1 of which has not yet been numbered by SEC/NOAA. Solar flare activity was low. A total of 2 C class events were recorded during the day, including a long duration C1.1 event peaking at 22:42 UTC with its origin at the southwest limb.

Region 10276 decayed further losing both leading and trailing spots.
Region 10277 developed slowly and was mostly quiet. Flare: C1.2 at 02:30 UTC.
Region 10278 decayed slowly and quietly.
Region 10280 developed slowly and quietly.
Region 10281 was quiet and stable.
Region 10282 did not change much and was quiet.
Region 10283 decayed slowly and quietly.
Region 10285 split off a small trailing penumbra.

Spotted regions not yet numbered by SEC/NOAA:
[S90] A new region emerged in the southeast quadrant on February and has since been visible some days. Location at midnight: S13W06.

Coronal mass ejections (CMEs)

February 8-10: No obviously geoeffective CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A trans equatorial coronal hole will rotate into a geoeffective position on February 13-15.

Processed SOHO EIT 284 image at 01:06 UTC on February 11. Any black areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on February 10-14. Another coronal stream will likely reach Earth on February 15 or 16 and could cause unsettled to minor storm conditions. Long distance medium wave (AM) band propagation along east-west paths over high and upper middle latitudes is very poor, propagation along north-south paths is fair.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

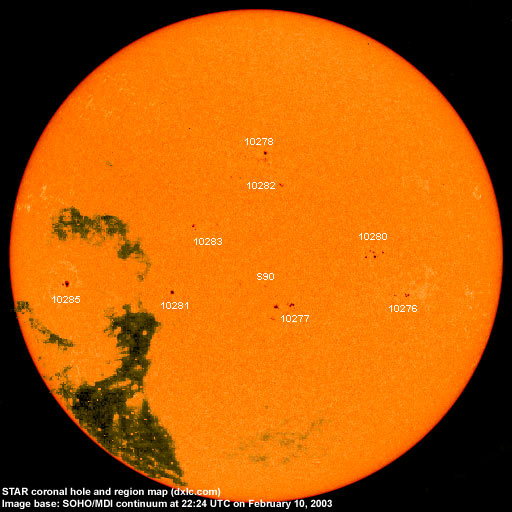

Active solar regions (Recent map)

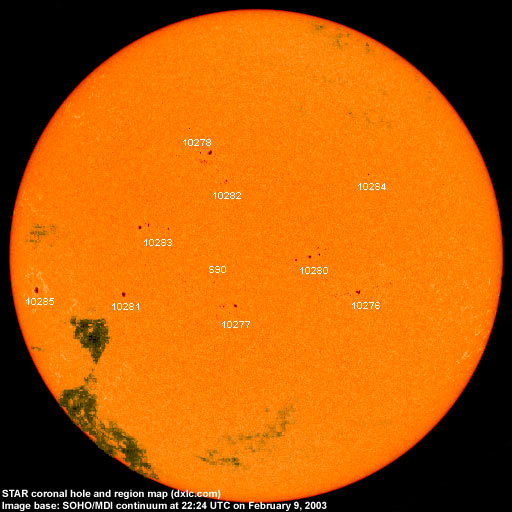

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by SEC/NOAA. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots.

Solar region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10276 2003.02.01 16 5 S14W39 0040 DSO
10277 2003.02.04 12 10 S19W07 0040 DSO  classification was DAO
at midnight, area 0070
10278 2003.02.04 11 6 N18W02 0040 DAO classification was CSO
at midnight
10279 2003.02.05     S12W61     plage
10280 2003.02.06 9 6 S05W28 0030 DSO beta-gamma
10281 2003.02.06 2 3 S14E20 0030 HSX
10282 2003.02.07 2 6 N11W06 0010 AXX classification was ESO
at midnight, area 0030
10283 2003.02.07 5 5 N01E13 0030 DSO classification was CSO
at midnight
10284 2003.02.08 1   N14W41 0000 AXX now spotless
10285 2003.02.08 2 2 S11E51 0070 CAO classification was HAX
at midnight, both
spots negative polarity
10286 2003.02.09 3   S13W32 0000 BXO actually spotless
S88 emerged on
2003.02.04
    S08W66     plage
S90 emerged on
2003.02.04
  2 S13W06 0010 AXX
S96 emerged on
2003.02.06
    S03W47     plage
Total spot count: 63 45
SSN: 163 135

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2002.01 226.6 114.1 113.5 (-1.1)
2002.02 205.0 107.4 114.6 (+1.2)
2002.03 179.5 98.4 113.3 (-1.3)
2002.04 189.8 120.7 110.5 (-2.9)
2002.05 178.4 120.8 108.8 (-1.7)
2002.06 148.7 88.3 106.2 (-2.6)
2002.07 173.5 99.6 102.7 (-3.5)
2002.08 183.6 116.4 (99.7 predicted, -3.0)
2002.09 175.8 109.6 (96.7 predicted, -3.0)
2002.10 167.0 97.5 (93.2 predicted, -3.5)
2002.11 168.7 95.0 (88.0 predicted, -5.2)
2002.12 157.2 81.6 (83.6 predicted, -4.4)
2003.01 144.0 79.5 (80.6 predicted, -3.0)
2003.02 137.4 (1) 42.1 (2) (75.5 predicted, -5.1)

1) Running average based on the daily 20:00 UT observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (SEC/NOAA) sunspot number. The official international sunspot number is typically 25-45% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and interpretations, and partly on data from sources noted in solar links. All time references are to the UTC day. Comments and suggestions are always welcome.
