Recent activity

The geomagnetic field was quiet to unsettled on May 17. Solar wind speed ranged between 294 and 341 km/sec.

Solar flux measured at 20h UTC on 2.8 GHz was 111.1. The planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 6.8).
Three hour interval K indices: 21012322 (planetary), 11112232 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight there were 6 spotted regions on the visible disk. The solar flare activity level was low. A single C class event was recorded during the day. Region 10614 rotated over the southwest limb and produced a C7.0 at 04:17 UTC.

Region 10606 decayed slowly and quietly.
Region 10609 decayed and lost about a third of its penumbral area.
Region 10612 decayed quickly and lost about half of the penumbral area and several spots.
Region 10613 was quiet and stable.
Region 10615 was quiet and stable.
New region 10617 emerged in the southeast quadrant on May 17. The region could become interesting as the inversion line currently runs nearly east-west.

Coronal mass ejections (CMEs)

May 15-17: No fully or partly Earth directed CME observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small, recurrent coronal hole (CH96) in the southern hemisphere was in a geoeffective position on May 17.

Processed SOHO/EIT 284 image at 01:05 UTC on May 18. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to unsettled on May 18-19 and quiet to active on May 20 due to effects from a weak coronal hole stream.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation along long distance north-south paths is fair to good. Trans Atlantic propagation conditions are monitored every night on 1470 kHz. Dominant station tonight: none, several stations were noted including Radio Vibración (Venezuela), Radio Cristal del Uruguay and Radio Rafaela (Argentina). Argentinean stations were noted on other frequencies as well (970, 1030, 1630 kHz) and propagation generally favored stations much further south than what was expected from the geomagnetic conditions. WWZN Boston on 1510 kHz had a good signal, otherwise North American stations were hard to hear.

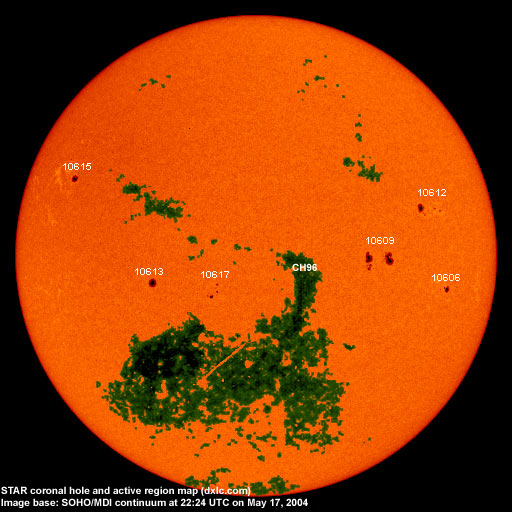

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10606 2004.05.07 6 4 S08W53 0060 DAO classification was CAO
at midnight, area 0050
10608 2004.05.09     S04W39     plage
10609 2004.05.10 26 15 S03W31 0320 EAI classification was DAO
at midnight, area 0220
10610 2004.05.12     S01W50     plage
10611 2004.05.12     S12W79     plage
10612 2004.05.13 14 7 N10W46 0160 DAO area was 0080
at midnight
10613 2004.05.13 2 1 S09E25 0110 HAX classification was HSX
at midnight, area 0090
10614 2004.05.16 3   S08W89 0030 CAO rotated out of view
10615 2004.05.16 6 2 N16E51 0130 HSX area was 0080
at midnight
10616 2004.05.16 1   N07E56 0010 AXX spotless
10617 2004.05.17 9 6 S12E11 0030 DSO
S402 emerged on
2004.05.13
    N02W54     plage
Total spot count: 67 35
SSN: 147 95

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2003.04 126.4 60.0 70.1 (-3.9)
2003.05 115.7 55.2 67.6 (-2.5)
2003.06 129.3 77.4 65.0 (-2.6)
2003.07 127.7 83.3 61.8 (-3.2)
2003.08 122.1 72.7 60.0 (-1.8)
2003.09 112.2 48.7 59.5 (-0.5)
2003.10 151.7 65.5 58.1 (-1.4)
2003.11 140.8 67.3 (56.5 predicted, -1.6)
2003.12 114.9 46.5 (53.5 predicted, -3.0)
2004.01 114.1 37.2 (49.1 predicted, -4.4)
2004.02 107.0 46.0 (44.8 predicted, -4.3)
2004.03 112.0 48.9 (42.1 predicted, -2.7)
2004.04 101.2 39.3 (40.0 predicted, -2.1)
2004.05 96.9 (1) 39.5 (2) (36.8 predicted, -3.2)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
