Recent activity

The geomagnetic field was quiet to unsettled on June 26. Solar wind speed ranged between 464 and 696 (all day average 556) km/sec, slowly decreasing all day as the high speed stream ended

Solar flux measured at 20h UTC on 2.8 GHz was 78.7. The planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 8.4).
Three hour interval K indices: 33222221 (planetary), 33122221 (Boulder).

The background x-ray flux is at the class A7 level.

At midnight the the visible solar disk was spotless. The solar flare activity level was low. A single C class event was recorded during the day, a C1.2 flare at 20:35 UTC from a region behind the northeast limb.

Coronal mass ejections (CMEs)

June 24: No obvious fully or partly Earth directed CMEs were observed in available LASCO images.
June 25: A full halo CME was observed in LASCO C3 images beginning at 08:42 UTC. While quite a bit of coronal activity was observed in the central southeast quadrant during the first half of the day, the timing of the CME makes it likely that the source of the CME was backsided.
June 26: A symmetric full halo CME was observed in LASCO C3 images beginning at 08:18 UTC. No relevant activity was observed on the visible disk during the hours before this observation, thus the source of the CME was most likely backsided.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH172) in the southern hemisphere (and with a trans equatorial extension) was in an Earth facing position on June 24-25. A large trans equatorial coronal hole (CH173) will likely be in an Earth facing position on June 28-30.

Processed SOHO/EIT 284 image at 01:06 UTC on June 27. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on June 27-28 due to a high speed stream from CH172. Quiet to unsettled is likely on June 29-30.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very poor. Propagation along long distance north-south paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Cristal del Uruguay. There wasn't that many stations around, however, the Argentineans on 870, 950, 1030 and 1190 kHz all had fair signals.

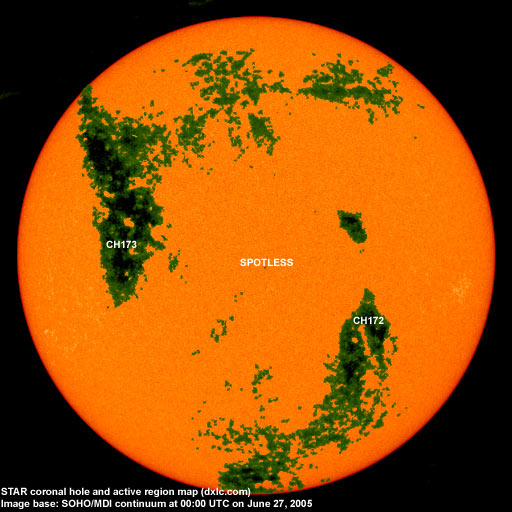

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10780 2005.06.17     S07W56     plage
Total spot count: 0 0
SSN: 0 0

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2004.04 101.2 39.3 45.5 (-1.6)
2004.05 99.8 41.5 43.8 (-1.7)
2004.06 97.4 43.2 41.6 (-2.2)
2004.07 119.1 51.1 40.2 (-1.4)
2004.08 109.6 40.9 39.2 (-1.0)
2004.09 103.1 27.7 37.5 (-1.7)
2004.10 105.9 48.0 35.9 (-1.6)
2004.11 113.2 43.5 35.3 (-0.6)
2004.12 94.5 17.9 (34.8 predicted, -0.5)
2005.01 102.2 31.3 (32.8 predicted, -2.0)
2005.02 97.2 29.1 (30.4 predicted, -2.4)
2005.03 89.9 24.8 (28.8 predicted, -1.6)
2005.04 86.0 24.4 (26.9 predicted, -1.9)
2005.05 99.3 42.6 (24.3 predicted, -2.6)
2005.06 94.7 (1) 53.6 (2) (22.8 predicted, -1.5)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
