The geomagnetic field was inactive to very quiet on April 7. Solar wind speed ranged between 305 and 363 (all day average 333) km/sec.
Solar flux measured at 20h UTC on 2.8 GHz was 94.5. The planetary A index
was 3 (STAR Ap - based on the mean of three hour interval ap
Three hour interval K indices: 10100011 (planetary), 00112220 (Boulder).
The background x-ray flux is at the class B1 level.
At midnight there were 4 spotted regions on the visible solar disk. The solar flare activity level was low. A total of 1 C class event was recorded during the day.
Region 10865 decayed slowly. C flares and a minor M class flares are
possible before the region rotates over the southwest limb late today.
Region 10866 decayed slowly and quietly.
Region 10867 decayed slowly. Flare: impulsive C9.7 at 08:03 UTC.
Region 10869 developed slowly and quietly.
A bright region behind the east limb has had several surges over the last couple of days. The region could rotate into view today.
April 5-7: No partly or fully Earth directed CMEs were observed in LASCO imagery.

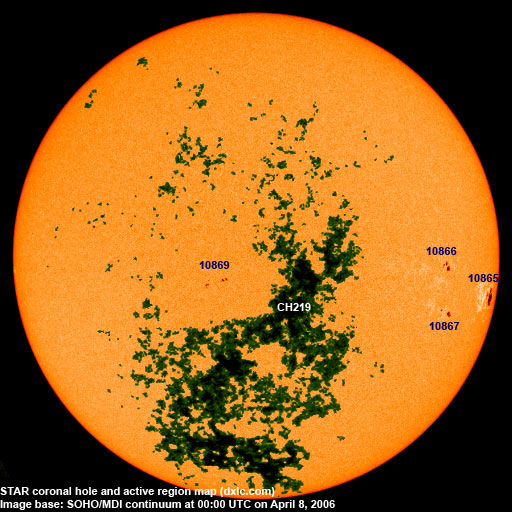

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A trans equatorial coronal hole (CH219) was in an Earth facing position on April 6-7.

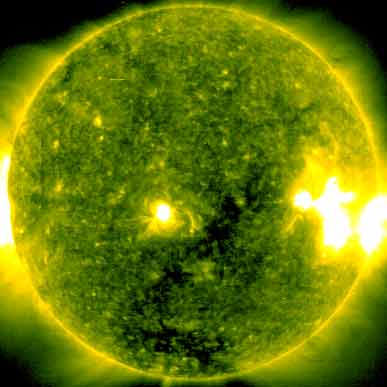

Processed SOHO/EIT 284 image at 01:06 UTC on April 8. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet on April 8. Unsettled to minor storm conditions are possible on April 9-10 due to effects from CH219 becoming quiet to unsettled on April 11-12.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to very poor. Propagation on long distance northeast-southwest paths is poor to fair. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela). Propagation was best to Venezuela, although only a few stations were audible.
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|10865||2006.03.28||7||11||S11W78||0230||DKO||area was 0380 at midnight|
|10867||2006.04.02||5||5||S15W56||0080||CHO||classification was DAO at midnight|
|Total spot count:||25||32|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2005.10||77.0||8.5||(24.8 predicted, -1.0)|
|2005.11||86.3||18.0||(22.7 predicted, -2.1)|
|2005.12||90.7||41.2||(19.8 predicted, -2.9)|
|2006.01||83.4||15.4||(16.7 predicted, -3.1)|
|2006.02||76.5||4.7||(13.6 predicted, -3.1)|
|2006.03||75.4||10.8||(11.4 predicted, -2.2)|
|2006.04||95.8 (1)||16.9 (2)||(10.7 predicted, -0.7)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
