Solar Terrestrial Activity Report

Last major update issued on August 7, 2006 at 02:30 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update August 6, 2006)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update August 6, 2006)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update August 6, 2006)]
[Historical solar and geomagnetic data charts 1954-2005 (last update March 3, 2006)]
[Archived reports (last update August 6, 2006)]

Recent activity

The geomagnetic field was quiet on August 6. Solar wind speed ranged between 304 and 358 km/s (all day average 340 km/s - decreasing 22 km/s from the previous day). The interplanetary magnetic field swung moderately southwards early on August 7 and solar wind density was high.

Solar flux measured at 20h UTC on 2.8 GHz was 69.5. The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.4).
Three hour interval K indices: 11101221 (planetary), 11111111 (Boulder).

The background x-ray flux is below the class A1 level.

At midnight the visible solar disk was spotless. The solar flare activity level was very low. No C class events were recorded during the day.

Coronal mass ejections (CMEs)

August 4-6: No partly or fully Earth directed CMEs were detected in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH235) in the southern hemisphere (with a trans equatorial extension) was in an Earth facing position on August 2-4.

Processed SOHO/EIT 284 image at 01:06 UTC on August 6. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to minor storm on August 7. Quiet conditions are likely on August 8-10.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is fair (becoming poorer). Propagation on long distance northeast-southwest paths is poor. Some stations from Newfoundland, Nova Scotia and 50 kW from Boston and New York were heard with good signals. On 1470 WLAM was audible. Nighttime propagation to South America was below average, but is likely to improve at and after LSR.

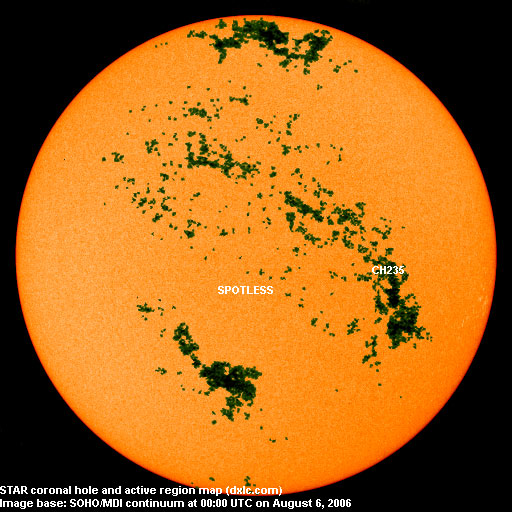

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment

Total spot count: 0 0
SSN: 0 0

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2005.06 93.7 39.3 28.8 (-0.1)
2005.07 96.4 40.1 29.1 (+0.3)
2005.08 90.5 36.4 27.4 (-1.7)
2005.09 91.1 21.9 25.8 (-1.6)
2005.10 77.0 8.5 25.5 (-0.3)
2005.11 86.3 18.0 24.9 (-0.6)
2005.12 90.7 41.2 23.0 (-1.9)
2006.01 83.4 15.4 20.8 (-2.2)
2006.02 76.5 4.7 (18.4 predicted, -2.4)
2006.03 75.4 10.8 (16.6 predicted, -1.8)
2006.04 89.0 30.2 (15.9 predicted, -0.7)
2006.05 80.9 22.2 (15.1 predicted, -0.8)
2006.06 76.5 13.9 (12.9 predicted, -2.2)
2006.07 75.7 12.2 (11.4 predicted, -1.5)
2006.08 70.8 (1) 1.8 (2) (11.4 predicted, -0.0)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
