Last major update issued on February 18, 2006 at 04:00 UTC.
geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update February 4, 2006)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update February 4, 2006)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update February 4, 2006)]
[Historical solar and geomagnetic data charts 1954-2004 (last update February 1, 2005)]
[Archived reports (last update February 7, 2006)]
The geomagnetic field was inactive to unsettled on February 17. Solar wind speed ranged between 377 and 484 (all day average 448) km/sec.
Solar flux measured at 20h UTC on 2.8 GHz was 79.2. The
planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap
Three hour interval K indices: 13201001 (planetary), 13211111 (Boulder).
The background x-ray flux is below the class A1 level.
At midnight the visible solar disk was spotless. The solar flare activity level was very low. No C class events were recorded during the day.
February 15-17: No obviously fully or partly Earth directed CMEs were observed.
Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

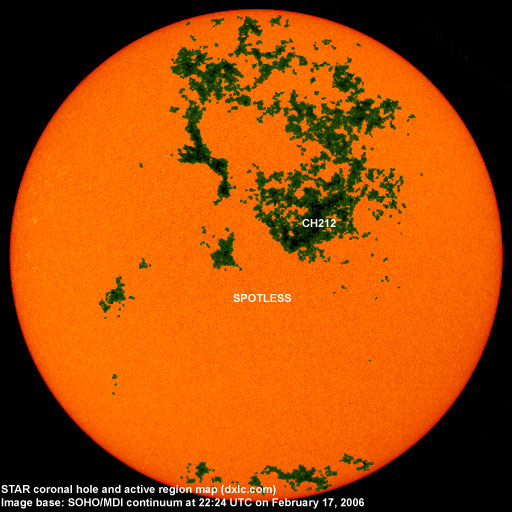

A recurrent coronal hole (CH212) in the northern hemisphere will be in an Earth facing position on February 17.
Processed SOHO/EIT 284 image at 19:12 UTC on February 17. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet on February 18 and most of February 19. Unsettled conditions are likely again on February 20-21 due to effects from CH212.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: WLAM Lewiston ME. Lots of stations from the easternmost parts of North America were audible, some with strong signals.
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|Total spot count:||3||0|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2005.08||90.5||36.4||(27.6 predicted, -1.5)|
|2005.09||91.1||22.1||(25.8 predicted, -1.8)|
|2005.10||77.0||8.5||(24.0 predicted, -1.8)|
|2005.11||86.3||18.0||(21.6 predicted, -2.4)|
|2005.12||90.7||41.2||(18.7 predicted, -2.9)|
|2006.01||83.4||15.4||(15.6 predicted, -3.1)|
|2006.02||76.6 (1)||4.0 (2)||(12.5 predicted, -3.1)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
