Recent activity

The geomagnetic field was quiet to active on May 14. Solar wind speed ranged between 450 and 574 (all day average 490) km/sec under the decreasing influence of a high speed stream from CH223.

Solar flux measured at 20h UTC on 2.8 GHz was 72.0. The planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 8.1).
Three hour interval K indices: 34211112 (planetary), 33222222 (Boulder).

The background x-ray flux is at the class A1 level.

At midnight the visible solar disk was spotless. The solar flare activity level was very low. No C class events were recorded during the day.

Coronal mass ejections (CMEs)

May 12-14: No partly or fully Earth directed CMEs were observed in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A trans equatorial coronal hole (CH224) was in an Earth facing position on May 12-15. A coronal hole (CH225) in the southern hemisphere will be in an Earth facing position on May 15-17.

Processed SOHO/EIT 284 image at 01:06 UTC on May 15. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to minor storm on May 15-20 due to high speed streams from CH224 and CH225. Isolated major storm intervals are possible.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very poor. Propagation on long distance northeast-southwest paths is poor to fair. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Tonight Radio Vibración was audible before LSR, then Radio Cristal del Uruguay began to dominate. 1510 kHz had 2 Spanish language stations. The dominant signal was that of Radio Belgrano (Argentina) while the other one probably was Radio San Carlos (Uruguay).

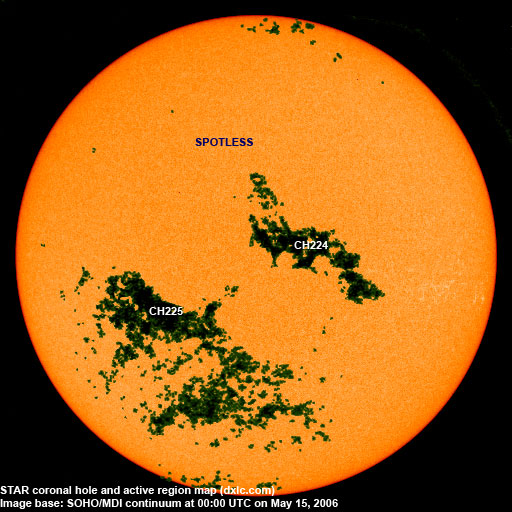

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10880 2006.05.04 1   S09W71 0030 AXX spotless
10881 2006.05.05     S08W48     plage
10883 2006.05.07     S02W40     plage
Total spot count: 1 0
SSN: 11 0

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2005.02 97.2 29.2 33.9 (-0.7)
2005.03 89.9 24.5 33.5 (-0.4)
2005.04 86.0 24.2 31.6 (-1.9)
2005.05 99.3 42.7 28.9 (-2.7)
2005.06 93.7 39.3 28.8 (-0.1)
2005.07 96.4 40.1 29.1 (+0.3)
2005.08 90.5 36.4 27.4 (-1.7)
2005.09 91.1 21.9 25.8 (-1.6)
2005.10 77.0 8.5 25.5 (-0.3)
2005.11 86.3 18.0 (24.5 predicted, -1.0)
2005.12 90.7 41.2 (21.8 predicted, -2.7)
2006.01 83.4 15.4 (18.7 predicted, -3.1)
2006.02 76.5 4.7 (15.6 predicted, -3.1)
2006.03 75.4 10.8 (13.4 predicted, -2.2)
2006.04 89.0 30.2 (12.7 predicted, -0.7)
2006.05 83.3 (1) 20.9 (2) (12.2 predicted, -0.5)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
