Recent activity

The geomagnetic field was quiet to unsettled on September 5. Solar wind speed ranged between 456 and 657 km/s (all day average 532 km/s - decreasing 18 km/s from the previous day).

Solar flux measured at 20h UTC on 2.8 GHz was 80.4. The planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 8.4). Three hour interval K indices: 32321222 (planetary), 33332312 (Boulder).

The background x-ray flux is at the class A4 level.

At midnight there were 3 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

New region 10907 emerged in the southeast quadrant on September 5.
New region 10908 rotated into view at the southeast limb on September 5.

Spotted regions not numbered by NOAA/SEC:
[S674] A couple of tiny spots emerged to the northwest of region 10907 on September 5.

Coronal mass ejections (CMEs)

September 3-5: No obvious partly or fully Earth directed CMEs were detected in incomplete LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole in the southern hemisphere was probably too far south on September 3 (when it rotated across the central meridian) to become geoeffective.

Processed SOHO/EIT 284 image at 19:08 UTC on August 18. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be mostly quiet on September 6-10.

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is fair with a number of stations from the easternmost parts of North America audible with fair to strong signals. Even some of the GY channels had stations with 1490 WBAE reaching fair signal levels. Several stations from Cuba and Venezuela were heard with good signals. Propagation on long distance northeast-southwest paths is poor.

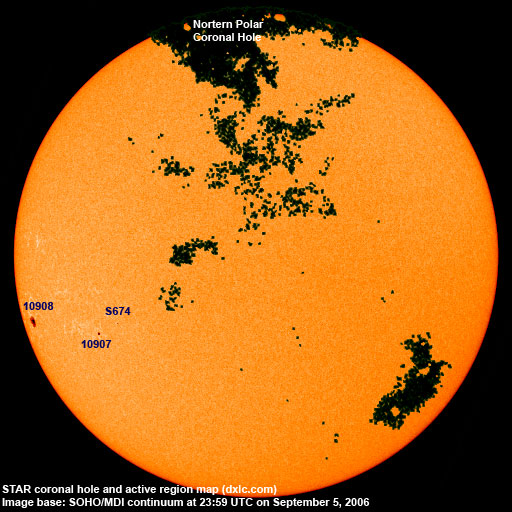

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Monthly solar cycle data

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
