Recent activity

The geomagnetic field was quiet to unsettled on February 1. Solar wind speed ranged between 549 and 645 km/s (average speed was 572 km/s, decreasing 125 km/s from the previous day) under the diminishing influence of a high speed stream from CH256.

Solar flux measured at 20h UTC on 2.8 GHz was 89.9. The planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 7.9). Three hour interval K indices: 32331122 (planetary), 32432121 (Boulder).

The background x-ray flux is at the class A5 level.

At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10940 developed slowly in the leading spot section. There is some polarity intermixing in the northern part of the trailing spot section. An M class flare in this region could easily cause several nearby filaments to erupt.
Region 10941 was quiet and stable.

Coronal mass ejections (CMEs)

January 30 - February 1: No obvious partly or fully Earth directed CMEs were detected in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near Earth facing positions.

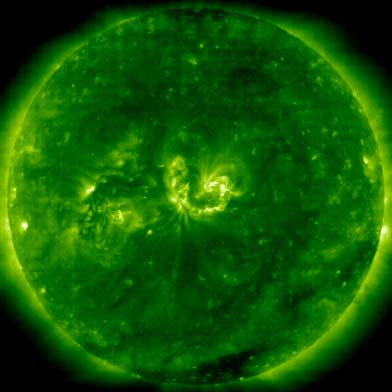

Processed SOHO/EIT 195 image at 00:00 UTC on February 1. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be mostly quiet on February 2-4.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Monitoring has been temporarily suspended (as of January 1, 2007).

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10940 2007.01.25 10 18 S04W06 0290 DSO beta-gamma
classification was DSI at midnight
10941 2007.01.29 1 1 S07E29 0150 HSX
Total spot count: 11 19
SSN: 31 39

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2005.12 90.7 41.1 23.0 (-1.9)
2006.01 83.4 15.3 20.8 (-2.2)
2006.02 76.5 4.9 18.6 (-2.2)
2006.03 75.4 10.6 17.3 (-1.3)
2006.04 89.0 30.2 17.1 (-0.2)
2006.05 80.9 22.2 17.3 (+0.2)
2006.06 76.5 13.9 16.3 (-1.0)
2006.07 75.7 12.2 15.3 (-1.0)
2006.08 79.0 12.9 (15.6 predicted, +0.3)
2006.09 77.8 14.5 (15.7 predicted, +0.1)
2006.10 74.3 10.4 (14.5 predicted, -1.2)
2006.11 86.3 21.5 (12.8 predicted, -1.7)
2006.12 84.5 13.6 (12.1 predicted, -0.7)
2007.01 83.3 16.9 (12.0 predicted, -0.1)
2007.02 89.9 (1) 1.1 (2) (12.1 predicted, +0.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
