Recent activity

The geomagnetic field was quiet to unsettled on August 13. Solar wind speed ranged between 287 and 360 km/s. The leading edge of the disturbance associated with CH471 was observed at SOHO near 20h UTC. Since then wind speed has been increasing slowly.

Solar flux measured at 20h UTC on 2.8 GHz was 83.1 (decreasing 20.5 over the last solar rotation). The planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.9). Three hour interval K indices: 12101113 (planetary), 12201123 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight UTC the visible solar disk had 5 spotted regions (in 2K resolution SDO images, in lower resolution 1K images the visible disk was spotless).

Region 11269 was quiet and stable.

Spotted regions not numbered by NOAA/SWPC:
[S1164] emerged in the southeast quadrant on August 13. Location at midnight: S30E06
[S1165] emerged in the southeast quadrant on August 13. Location at midnight: S24E23
[S1166] emerged in the northeast quadrant on August 13. Location at midnight: N10E14
[S1167] emerged in the northeast quadrant on August 13. Location at midnight: N10E28

Approaching regions just behind the northeast and southeast limbs caused a gradual increase in the background xray flux during the day.

Coronal mass ejections (CMEs)

August 11-13: No obviously Earth directed CMEs were observed in LASCO or STEREO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

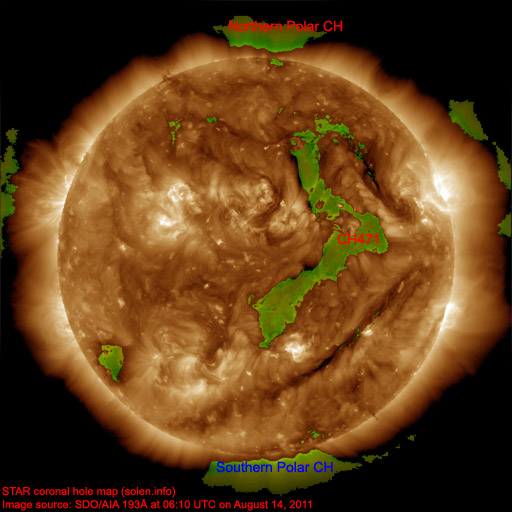

A recurrent trans equatorial coronal hole (CH471) was in an Earth facing position on August 11-13.

The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to active on August 14-16 with a chance of minor storm intervals due to effects from CH471.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

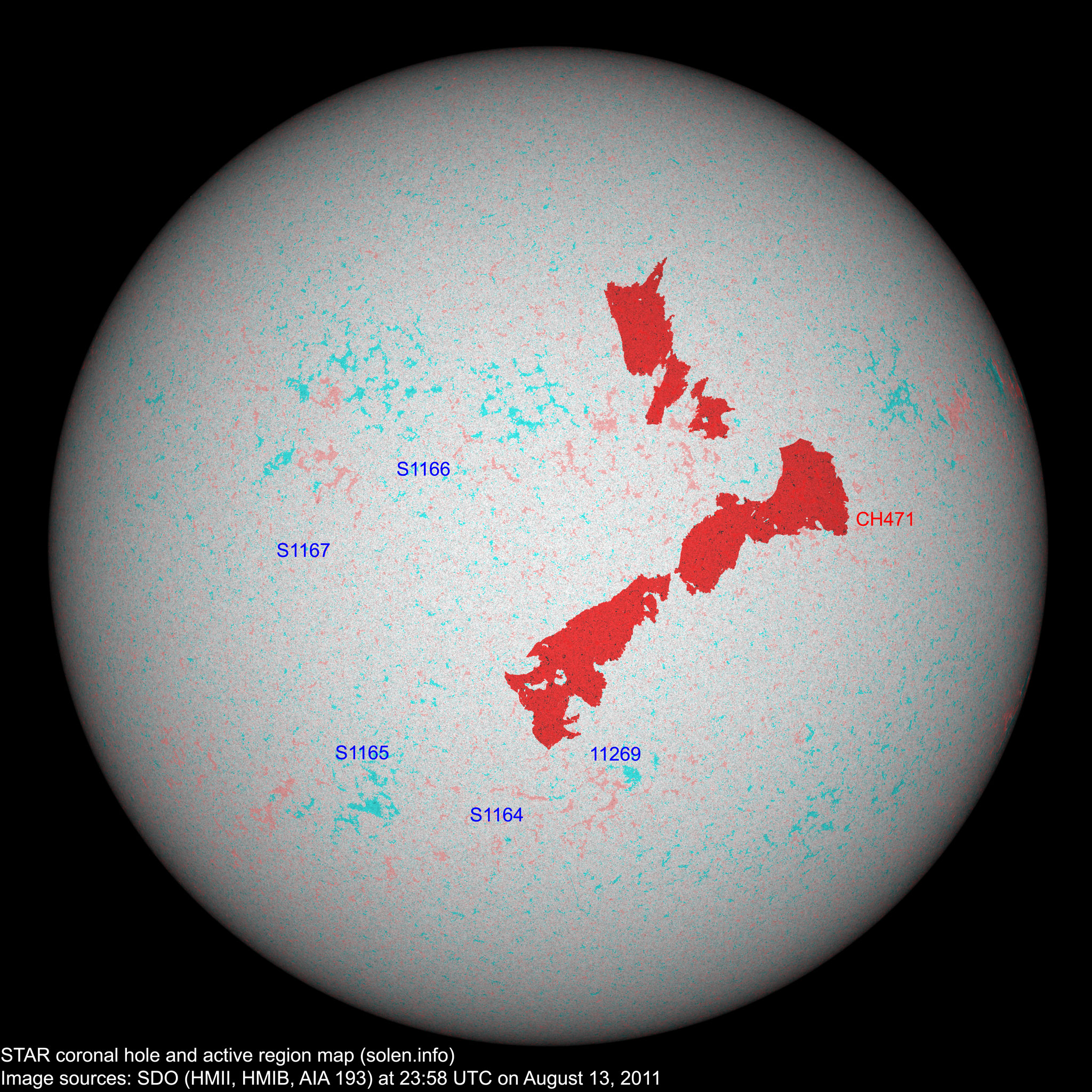

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11266 2011.08.02
2011.08.04
1   N20W74 0005 AXX     plage
11268 2011.08.05
2011.08.06
    N18W63           plage
S1157 2011.08.07     S20W03           plage
S1159 2011.08.09     N20E01         plage
S1160 2011.08.09     N09W26           plage
11270 2011.08.10
2011.08.11
2   N23E29 0010 BXO     plage
S1162 2011.08.10     S23E00           plage
11269 2011.08.10
2011.08.11
2 2 S21W09 0010 AXX AXX area: 0000

location: S25W08

S1164 2011.08.13   1 S30E06 0000   AXX
S1165 2011.08.13   2 S24E23 0000   AXX
S1166 2011.08.13   1 N10E14 0000   AXX
S1167 2011.08.13   2 N10E28 0000   AXX
Total spot count: 5 8
Sunspot number: 35 58  (total spot count + 10 * number of spotted regions)
Classification adjusted SN: 5 8  (Sum of total spot count + classification adjustment for each AR. Classification adjustment: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 21 19  k * (sunspot number). k = 0.6 for SWPC. k = 0.33 for STAR SDO

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.05 73.8 8.7 15.5 (+1.5) 9.18 / 8.15
2010.06 72.5 13.6 16.4 (+0.9) 8.17 / 6.85
2010.07 79.8 16.1 16.7 (+0.3) 6.31 / 5.15
2010.08 79.2 19.6 17.4 (+0.7) 8.49 / 7.77
2010.09 81.1 25.2 19.6 (+2.2) 5.33 / 5.45
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 (33.6 predicted, +2.6) 5.41 / 6.44
2011.03 115.0 56.2 (36.6 predicted, +3.0) 7.79 / 8.18
2011.04 112.6 54.4 (39.4 predicted, +2.8) 9.71 / 8.83
2011.05 95.8 41.6 (42.7 predicted, +3.3) 9.18 / 8.94
2011.06 95.8 37.0 (46.5 predicted, +3.8) 8.96
2011.07 94.2 43.9 (50.6 predicted, +4.1) 9.14
2011.08 103.7 (1) 29.5 (2A) / 70.5 (2B) (54.8 predicted, +4.2) (11.39)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
