The geomagnetic field was unsettled to major storm on April 25. Solar wind speed at SOHO ranged between 521 and 837 km/s under the influence of high speed coronal hole streams. The stream which began early on April 24 appeared to come to an end early on April 25 with solar wind speed decreasing to just over 500 km/s. Then solar wind speed began to increase again and was near 800 km/s during the evening. It is uncertain if the last increase in wind speed was caused by the same coronal hole or a different one.
Solar flux measured at 20h UTC on 2.8 GHz was 127.2 (increasing 15.7 over the last solar rotation). The Potsdam WDC planetary A index was 33 (STAR Ap - based on the mean of three hour interval ap indices: 33.0). Three hour interval K indices: 54443464 (planetary), 44442343 (Boulder).
The background x-ray flux is at the class B5 level.
At midnight UTC the visible solar disk had 8 spotted active regions (in 2K resolution SDO images).

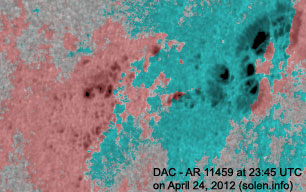

Region 11459 [S16W66] decayed with only rudimentary penumbra remaining
on the trailing spots. At the current rate of decay there won't be much left of
this region spotwise by the end of today.
Region 11460 [N15W84] decayed further and is rotating out of view at the
northwest limb.
Region 11465 [S18W26] decayed slowly and quietly. While there is still a
weak magnetic delta structure in the northern part of the largest penumbra, the
region looks less complex than 24h ago.
Region 11466 [N12W12] was quiet and stable.
Region 11467 [N13E59] decayed slowly and quietly.
Region 11468 [N09W03] was quiet and stable.
Region 11469 [S19E54] decayed slowly and quietly.
Spotted active regions not numbered by NOAA/SWPC:
New region S1611 [S26E56] emerged to the south of AR 11469.
April 24-25: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
April 23: Region S1598 (to the west of AR 11461) was the source of a C2
flare at 17:51 UTC. A CME was associated with this event. LASCO images indicate
a full halo, however, NASA analysis of all available imagery indicates there
were two sources for this apparent full halo CME. The CME associated with the C2
event was observed over most of the southern hemisphere limbs as a partial halo
CME. It is uncertain if this CME will reach Earth.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A coronal hole in the northern hemisphere will rotate across the central meridian on April 26-27 but is probably too far to the north to cause a geomagnetic disturbance.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is very poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be quiet to minor storm on April 26 due to a high speed coronal hole stream. If the CME observed on April 23 arrives it is likely to do so on April 26 and could cause unsettled to minor storm conditions that day and on April 27. If it fails to arrive we can expect quiet to unsettled conditions on April 27-28.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

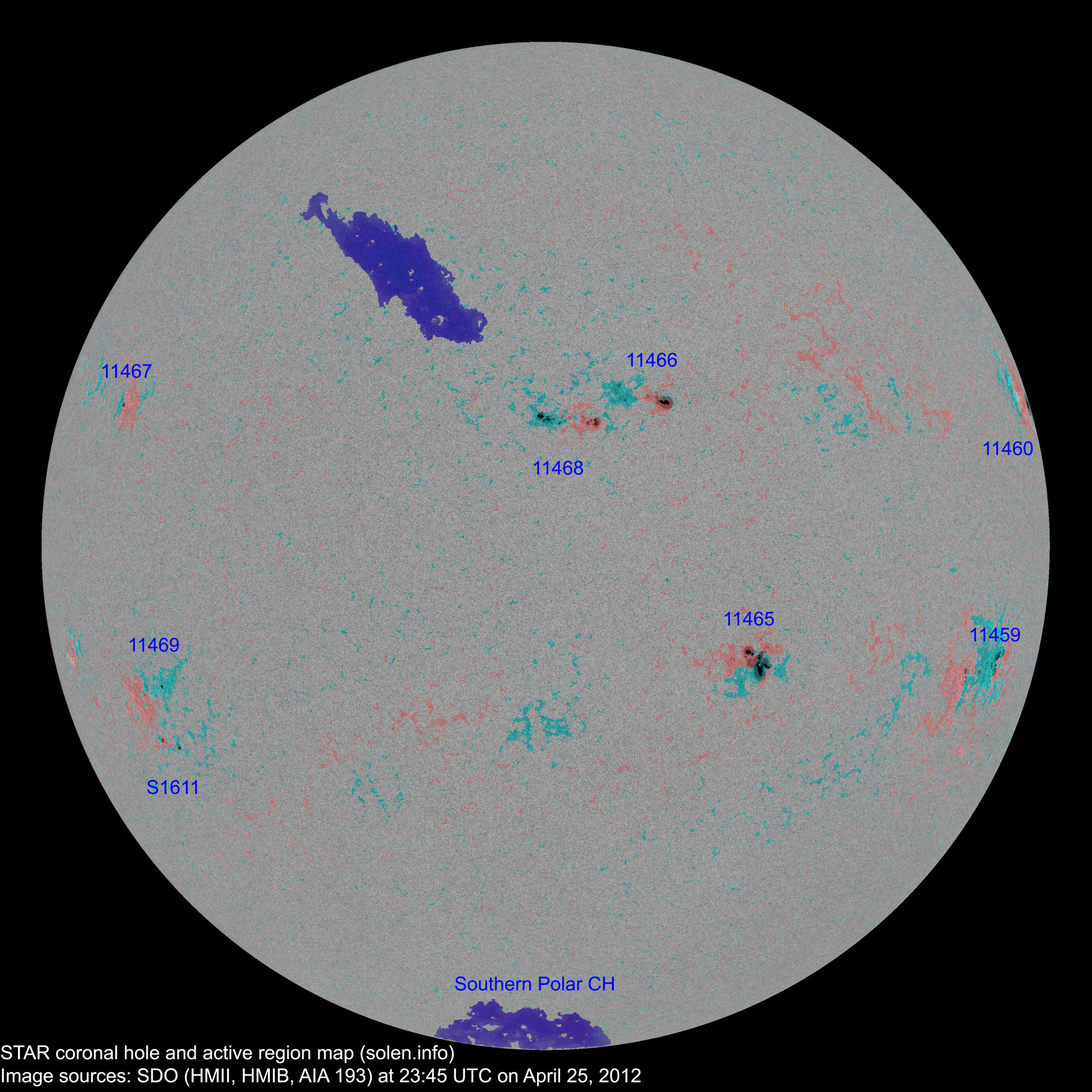

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11459 | 2012.04.14 | 20 | 21 | 10 | S16W65 | 0220 | EAI | DAI |
area: 0080 |
||
11460 | 2012.04.15 2012.04.16 |
6 | 2 | 1 | N15W81 | 0150 | CSO | CSO |
location: N15W84 area: 0210 |
||
11461 | 2012.04.16 2012.04.17 |
N10W47 |
plage location: N11W36 |
||||||||
S1598 | 2012.04.18 | N14W46 | plage | ||||||||
11464 | 2012.04.18 2012.04.19 |
N23W83 | plage | ||||||||
S1602 | 2012.04.18 | S32W40 | plage | ||||||||
11465 | 2012.04.19 2012.04.20 |
12 | 19 | 9 | S17W26 | 0280 | DKO | DKC |
beta-gamma-delta area: 0400 |
||
11468 | 2012.04.20 2012.04.24 |
11 | 20 | 12 | N11W02 | 0100 | DSO | DSI | location: N09W03 | ||
S1605 | 2012.04.20 | S12W60 | plage | ||||||||
11466 | 2012.04.21 2012.04.22 |
8 | 15 | 7 | N11W12 | 0150 | DAO | CSO | |||
S1607 | 2012.04.22 | S13W44 | plage | ||||||||
11469 | 2012.04.23 2012.04.24 |
6 | 7 | 3 | S18E55 | 0010 | BXO | CRO | location: S19E54 | ||
S1609 | 2012.04.23 | S26E02 | plage | ||||||||
11467 | 2012.04.24 | 4 | 2 | 2 | N16E59 | 0010 | BXO | HRX | location: N13E59 | ||
S1610 | 2012.04.24 | S07W54 | plage | ||||||||
S1611 | 2012.04.25 | 2 | 2 | S26E56 | 0020 | DRO | |||||
Total spot count: | 67 | 88 | 46 | ||||||||
Sunspot number: | 137 | 168 | 126 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 97 | 127 | 85 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 82 | 59 | 69 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.01 | 83.6 | 19.1 | 31.0 (+2.2) | 5.51 |
2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 6.44 |
2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 8.18 |
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | (60.1 projected, +0.6) | 8.28 |
2011.11 | 153.5 | 96.7 | (61.6 projected, +1.5) | 5.55 |
2011.12 | 141.3 | 73.0 | (64.3 projected, +2.7) | 3.78 |
2012.01 | 132.5 | 58.3 | (67.8 projected, +3.5) | 7.15 |
2012.02 | 106.5 | 33.1 | (71.8 projected, +4.0) | 8.81 |
2012.03 | 114.7 | 64.2 | (73.9 projected, +2.1) | 16.08 |
2012.04 | 112.1 (1) | 65.7 (2A) / 78.8 (2B) | (74.9 projected, +1.0) | (12.08) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
