The geomagnetic field was quiet to active on January 26. Solar wind speed at SOHO ranged between 325 and 391 km/s.
Solar flux at 20h UTC on 2.8 GHz was 147.0 (increasing 15.6 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 146.7. The Potsdam WDC planetary A index was 13 (STAR Ap - based on the mean of three hour interval ap indices: 12.6). Three hour interval K indices: 33342322 (planetary), 23443322 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 253) and 10 active regions using 1K resolution (SN: 183) SDO images on the visible solar disk.

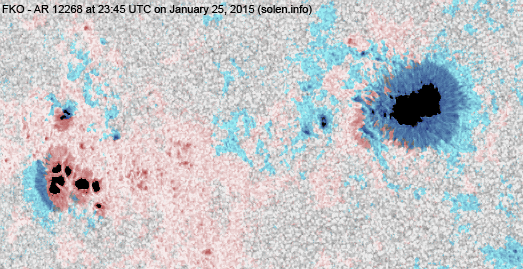

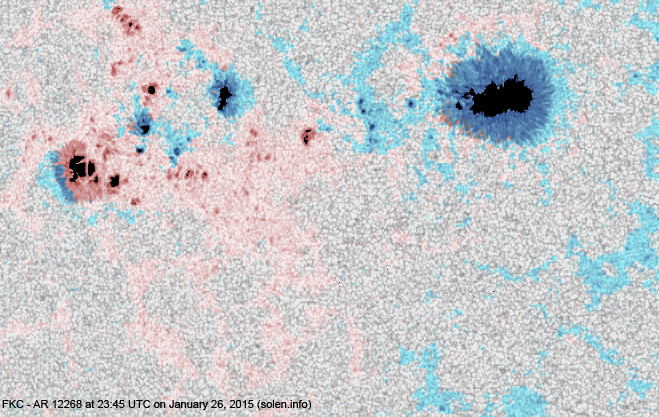

Region 12268 [S10E22] developed and gained spots,
particularly in the trailing spot section. Another minor M class flare is possible.

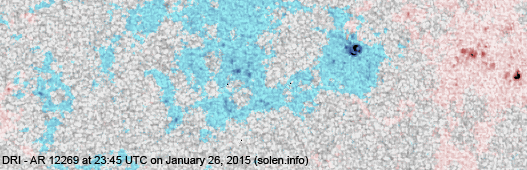

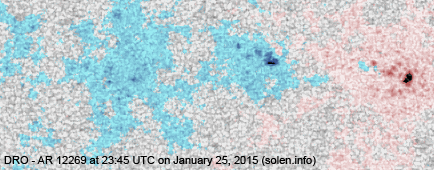

Region 12269 [N07W20] was quiet and stable.
Region 12271 [N18W03] developed further and could produce C flares.
New region 12272 [N12E62] rotated into view on January 25 and was
numbered by SWPC the next day.
New region 12273 [S03E02] emerged on January 25 with SWPC numbering the
region the following day.
New region 12274 [S03W08] emerged on January 25 and decayed on
January 26 when it received its NOAA number.
New region 12275 [S17W12] emerged with several spots.
Spotted regions not numbered (or interpreted differently) by SWPC:

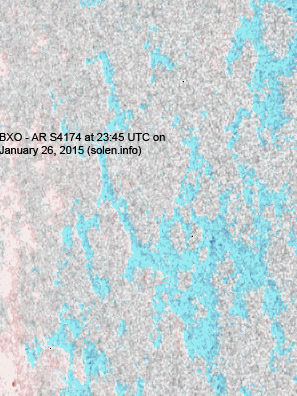

S4174 [S07E58] decayed slowly and quietly.
New region S4179 [N17W15] emerged with penumbra spots.
New region S4180 [N23E07] emerged with a penumbra spot.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| M1.1 | 16:53 | 12268 |
January 24-26: No obviously Earth directed CMEs were observed in LASCO imagery. There may have been a weak CME after 15h UTC on January 24 following a filament eruption.
[Coronal hole history (since October
2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A small southern hemisphere coronal hole (CH651) was in an Earth facing position on January 25.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be mostly quiet. If there was a CME associated with the filament eruption on January 24, it will likely arrive on Janaury 27 and cause unsettled and active conditions. On January 28-29 a weak coronal hole stream could cause some unsettled intervals.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

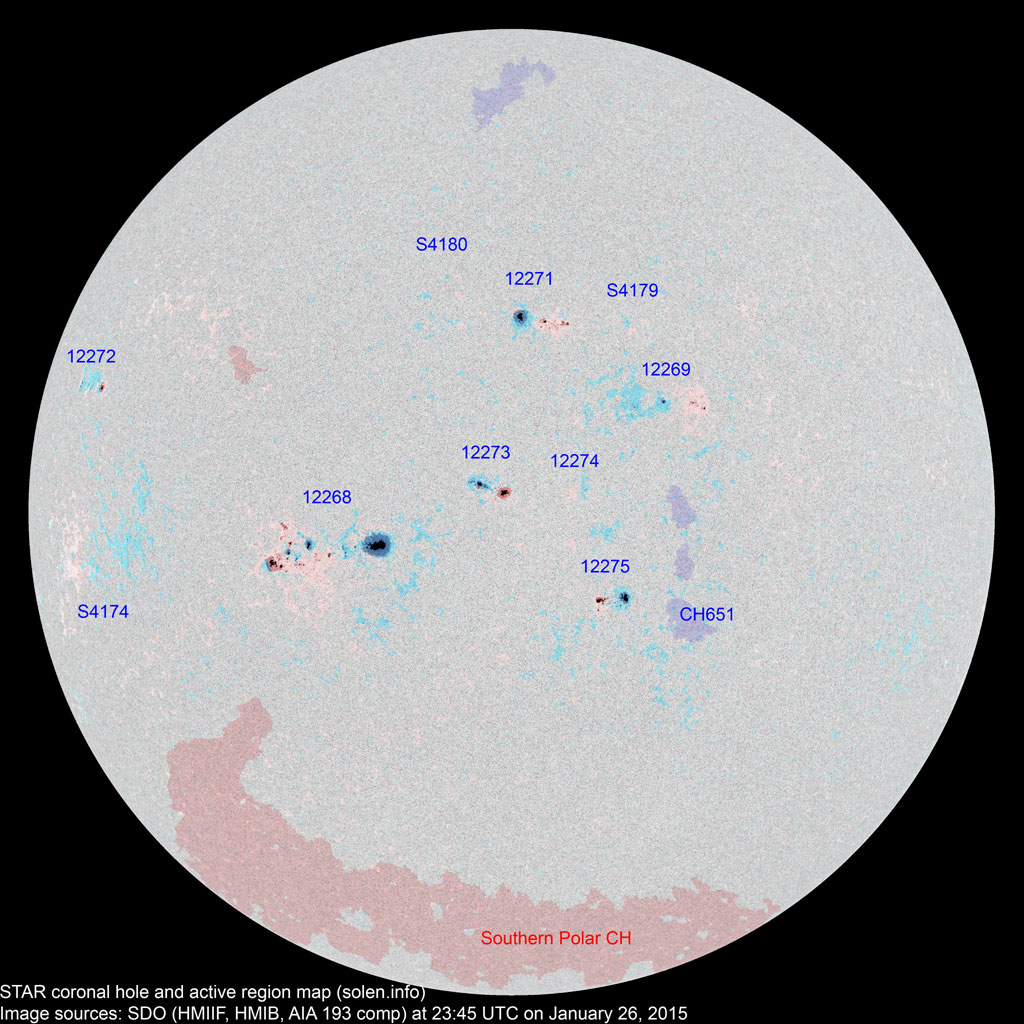

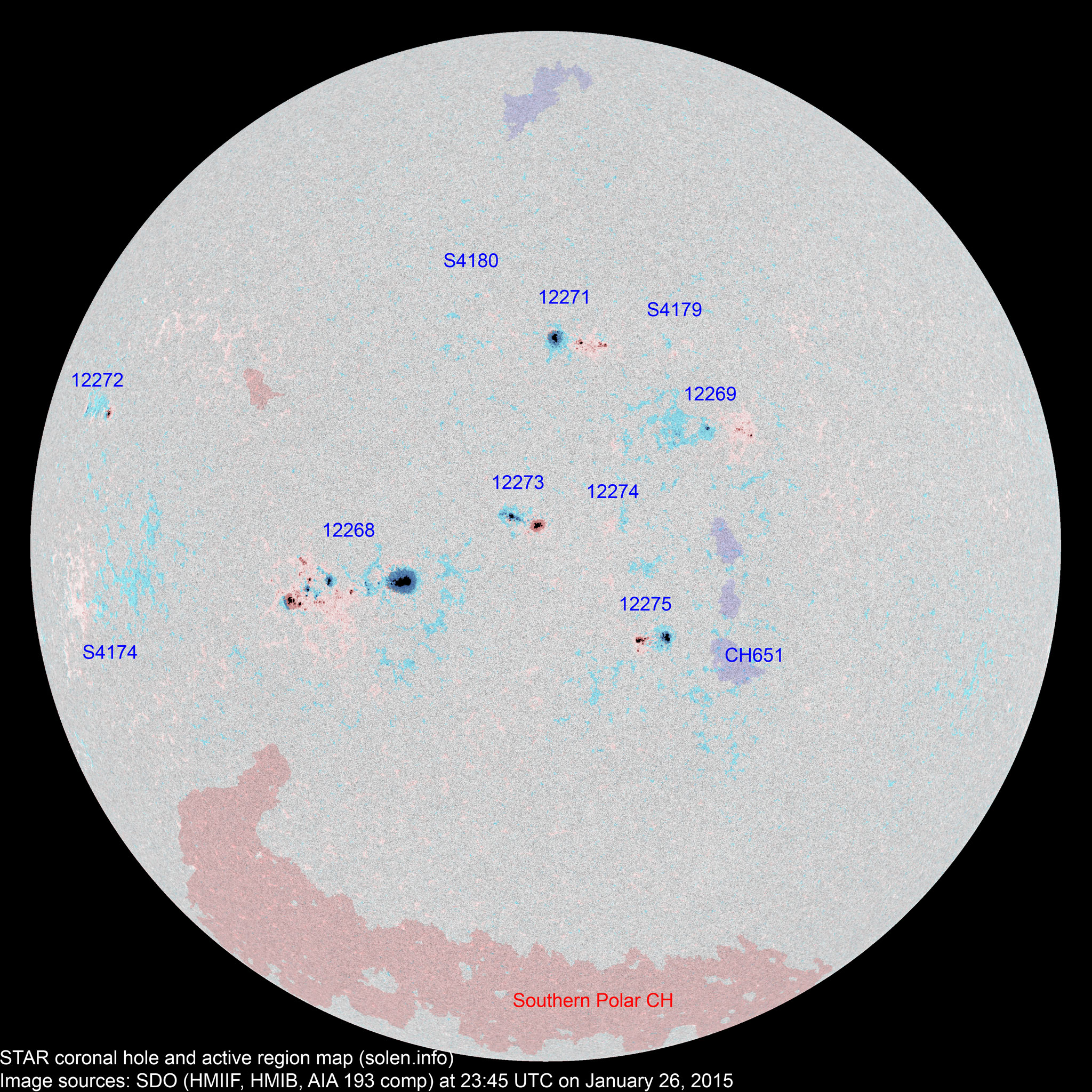

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12267 | 2015.01.18 2015.01.19 |
N18W35 | plage | ||||||||
| S4155 | 2015.01.18 | S15W59 | plage | ||||||||
| 12269 | 2015.01.19 2015.01.22 |
3 | 23 | 9 | N07W22 | 0030 | CRO | DRI |
 |
 |
|
| 12268 | 2015.01.21 2015.01.22 |
16 | 61 | 35 | S11E22 | 0430 | EKI | FKC |
 |
 |
beta-gamma area: 0680 |
| 12270 | 2015.01.22 2015.01.23 |
S18E13 | plage | ||||||||
| S4166 | 2015.01.22 | S27W23 |
 |
plage | |||||||
| S4167 | 2015.01.22 | N02W32 | plage | ||||||||
| S4168 | 2015.01.23 | S10W14 | plage | ||||||||
| 12271 | 2015.01.23 2015.01.25 |
10 | 28 | 11 | N17W04 | 0060 | DAI | DAI |
 |
 |
area: 0150 |
| S4172 | 2015.01.24 | S24W02 | plage | ||||||||
| S4173 | 2015.01.24 | S04W34 | plage | ||||||||
| S4174 | 2015.01.25 | 3 | 1 | S07E58 | 0007 | BXO |
 |
 |
|||
| 12272 | 2015.01.25 2015.01.26 |
2 | 5 | 4 | N13E60 | 0030 | CAO | CAO |
 |
 |
|
| 12273 | 2015.01.25 2015.01.26 |
3 | 15 | 9 | S03E03 | 0010 | BXO | DAI |
 |
 |
beta-gamma-delta area: 0120 |
| 12274 | 2015.01.25 2015.01.26 |
3 | 1 | 1 | S03W08 | 0010 | BXO | AXX |
 |
 |
area: 0003 |
| 12275 | 2015.01.26 | 3 | 14 | 10 | S16W14 | 0010 | CSO | DAI |
 |
area: 0100 | |
| S4179 | 2015.01.26 | 2 | 2 | N17W15 | 0005 | BXO |
 |
||||
| S4180 | 2015.01.26 | 1 | 1 | N23E07 | 0003 | AXX |
 |
||||
| Total spot count: | 40 | 153 | 83 | ||||||||
| Sunspot number: | 110 | 253 | 183 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 68 | 186 | 116 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 66 | 89 | 101 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | 80.5 (-1.4) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | 79.7 (-0.8) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (78.6 projected, -1.1) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (76.2 projected, -2.4) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (73.0 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (70.5 projected, -2.5) | 8.96 |
| 2014.11 | 154.8 | 151.4 | 70.1 | (68.8 projected, -1.7) | 9.33 |
| 2014.12 | 158.7 | 153.8 | 78.0 | (67.7 projected, -1.1) | 11.24 |
| 2015.01 | 138.4 (1) | 75.9 (2A) / 90.5 (2B) / 72.6 (2C) | (66.5 projected, -1.2) | (9.1) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
