The geomagnetic field was quiet to unsettled on June 11. Solar wind speed at SOHO ranged between 472 and 589 km/s, gradually decreasing.
Solar flux at 20h UTC on 2.8 GHz was 139.9 (increasing 3.4 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 126.0. The Potsdam WDC planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 7.9). Three hour interval K indices: 23222222 (planetary), 23333322 (Boulder).
The background x-ray flux is at the class B8 level.
At the time of counting spots (see image time), spots were observed in 11 active regions using 2K resolution (SN: 230) and 9 active regions using 1K resolution (SN: 156) SDO images on the visible solar disk.
Region 12360 [N15W58] developed and became a
compact region again. There is a weak magnetic delta structure in a northern
Region 12361 [N18W30] decayed slowly and was mostly quiet.
Region 12362 [N07W22] decayed slowly and quietly.
Region 12365 [S13W05] was quiet and has polarity intermixing. C class flaring is possible.
Region 12366 [N17W05] has polarity intermixing and could produce C flares.
New region 12367 [S20E73] rotated partly into view on June 10 and was numbered the next day by SWPC. This is an unstable, compact region capable of C and minor M class flaring.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4530 [N12W10] was quiet and stable.
S4531 [S08E07] was quiet and stable.
S4535 [S08W25] was quiet and stable.
New region S4538 [N18E05] was observed with penumbra spots. The region has reversed polarities.
New region S4539 [S10E66] rotated into view with a penumbra spot.
|Magnitude||Peak time (UTC)||Location||AR||Recorded by||Comment|
|C4.5||17:26||12360||GOES15||attributed to AR 12367 by SWPC|
|C2.9||18:53||12360?||SDO/EVE||possible contributions from AR 12367 and an AR near the northeast limb|
|C3.1||20:41||S20E81||12367||GOES15||C4.0 @ SDO/EVE|
June 10-11: No obviously Earth directed CMEs were observed.
June 9: A partial halo CME was observed in LASCO imagery late on June 9 and early on June 10. The source is uncertain but may be associated with a C2 event in AR 12364.
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent trans equatorial coronal hole (CH672) rotated across the central meridian on June 10-11.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be mostly quiet on June 12. Effects from CH672 could cause quiet to active conditions on June 13-14 with a chance of minor storm intervals.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

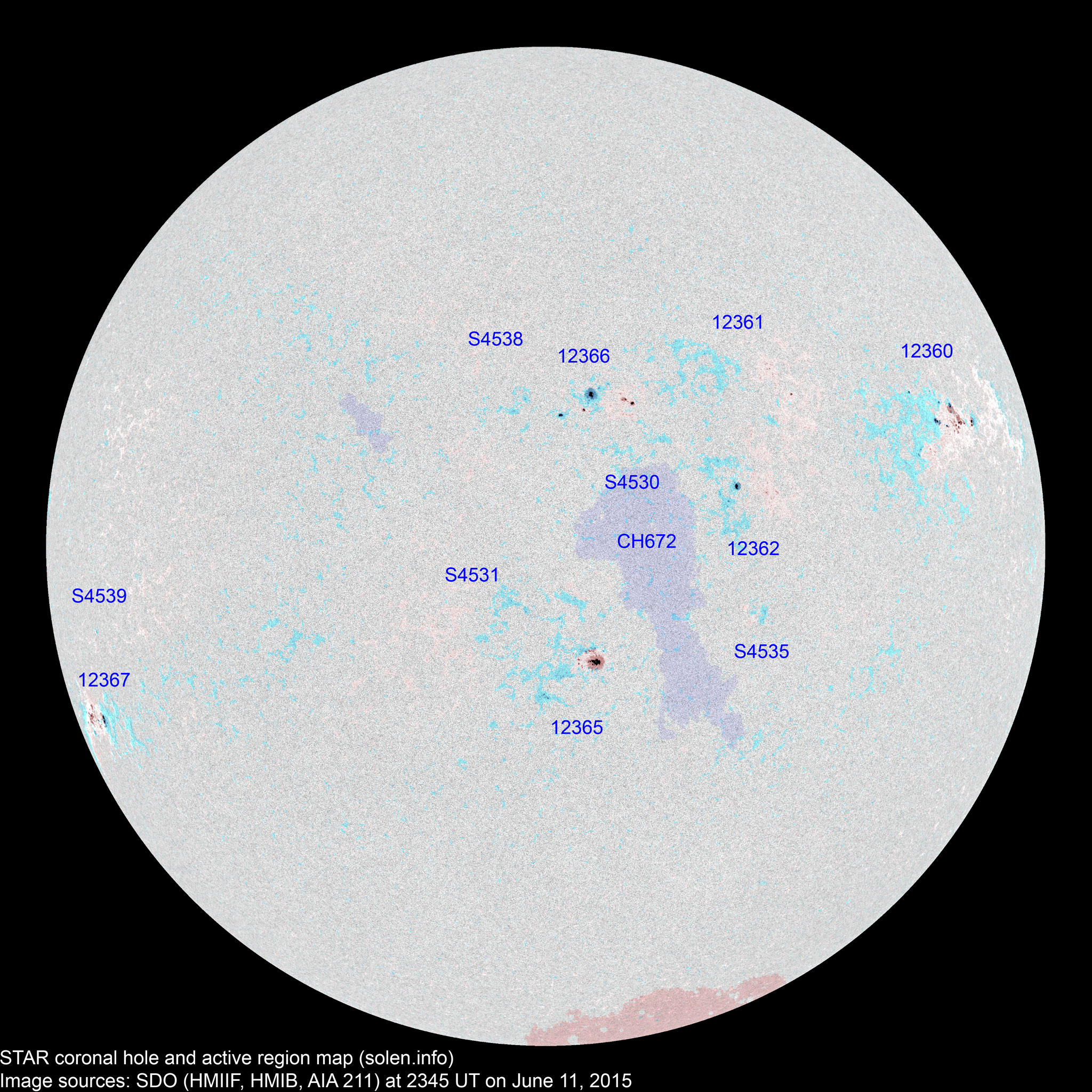

(Click on image for 2K resolution) Compare to the previous day's image.
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||41||120||66|
|Sunspot number:||101||230||156||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||64||148||94||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||61||81||86||k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number||Average
|166.3||102.3 (cycle peak)||78.4 (+1.1)||10.70|
|2014.04||143.9||144.8||84.7||81.9 (+1.1) (solar max)||7.88|
|2014.12||158.7||153.8||78.0||(63.5 projected, -1.9)||11.24|
|2015.01||141.9||137.3||67.0||(61.3 projected, -2.2)||9.46|
|2015.02||129.1||126.0||44.8||(59.6 projected, -1.7)||9.92|
|2015.03||125.9||124.6||38.4||(57.2 projected, -2.4)||16.14|
|2015.04||128.8||129.7||54.4||(54.6 projected, -2.6)||10.73|
|2015.05||120.0||122.6||58.8||(52.4 projected, -2.2)||8.29|
|2015.06||(124.1)||33.9 (2A)/ 92.4 (2B) / 68.1 (2C)||(49.6 projected, -2.8)||(8.1)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
