Recent activity

The geomagnetic field was quiet to active on April 14 under the influence of effects from CH727 and after 07h UT from a CME. Solar wind speed at SOHO ranged between 372 and 517 km/s.

Solar flux at 20h UTC on 2.8 GHz was 111.1 (increasing 20.8 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 96.7. The Potsdam WDC planetary A index was 20 (STAR Ap - based on the mean of three hour interval ap indices: 20.1). Three hour interval K indices: 33244433 (planetary), 33345322 (Boulder).

The background x-ray flux is at the class B3 level.

At the time of counting spots (see image time), spots were observed in 8 active regions using 2K resolution (SN: 147) and 6 active regions using 1K resolution (SN: 85) SDO images on the visible solar disk.

Region 12529 [N10W13] gained many small spots and has polarity intermixing.
Region 12530 [N14W54] gained a few spots and was quiet.
Region 12531 [N14E48] was quiet and stable.

Spotted regions not numbered (or interpreted differently) by SWPC:
S5231 [S15W22] was quiet and stable.
S5236 [N03W12] decayed slowly and quietly.
New region S5237 [N10E68] rotated into view with tiny spots.
New region S5238 [N24W28] emerged with tiny spots.
New region S5239 [N04W65] emerged with tiny spots.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment

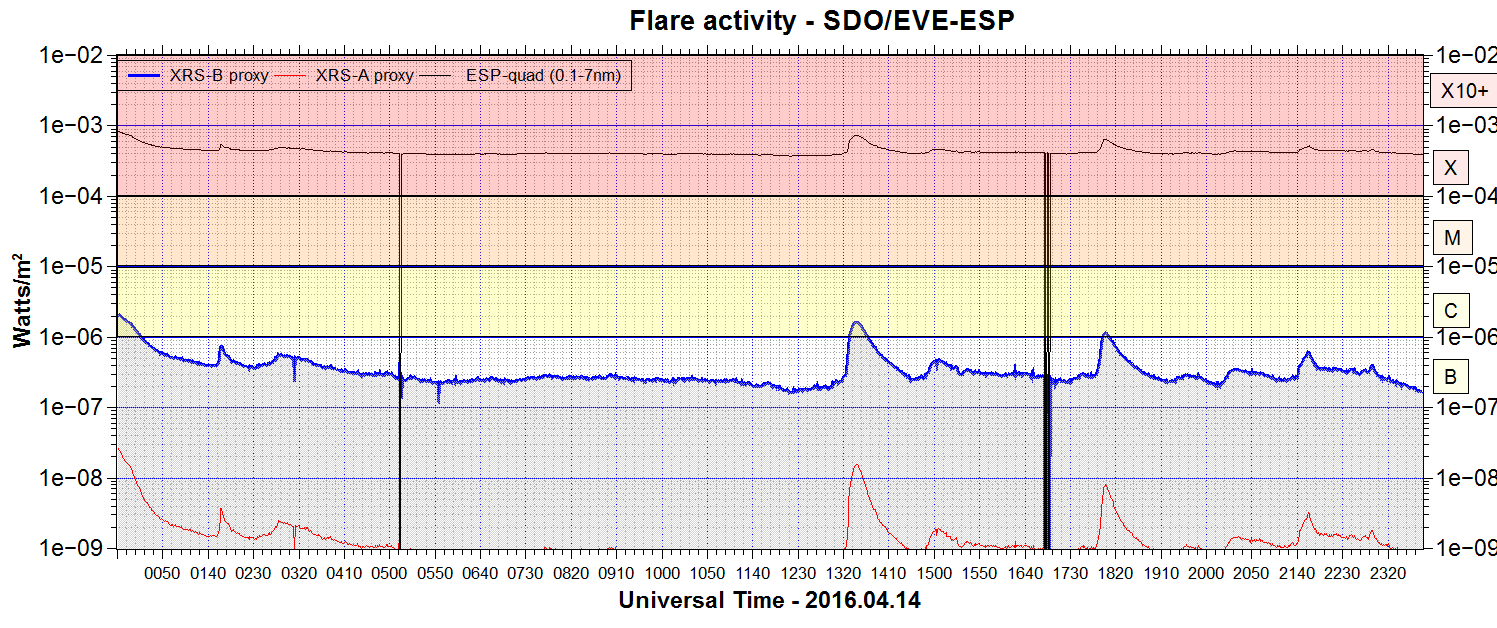

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

April 12-14: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent northern hemisphere coronal hole (CH728) will rotate across the central meridian on April 14-15.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on April 15 and quiet on April 16 while April 17-18 could see quiet to active conditions as CH728 becomes geoeffective.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

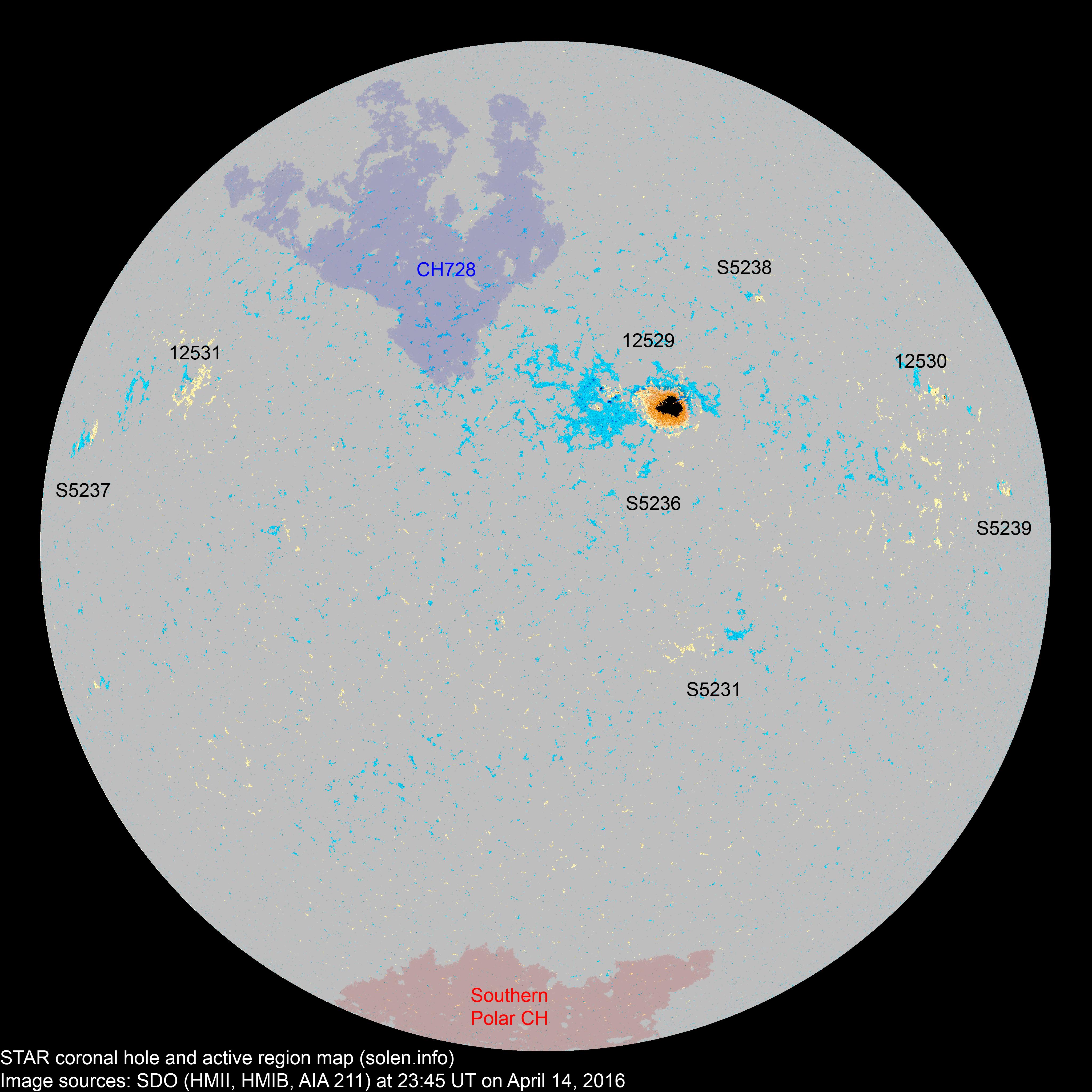

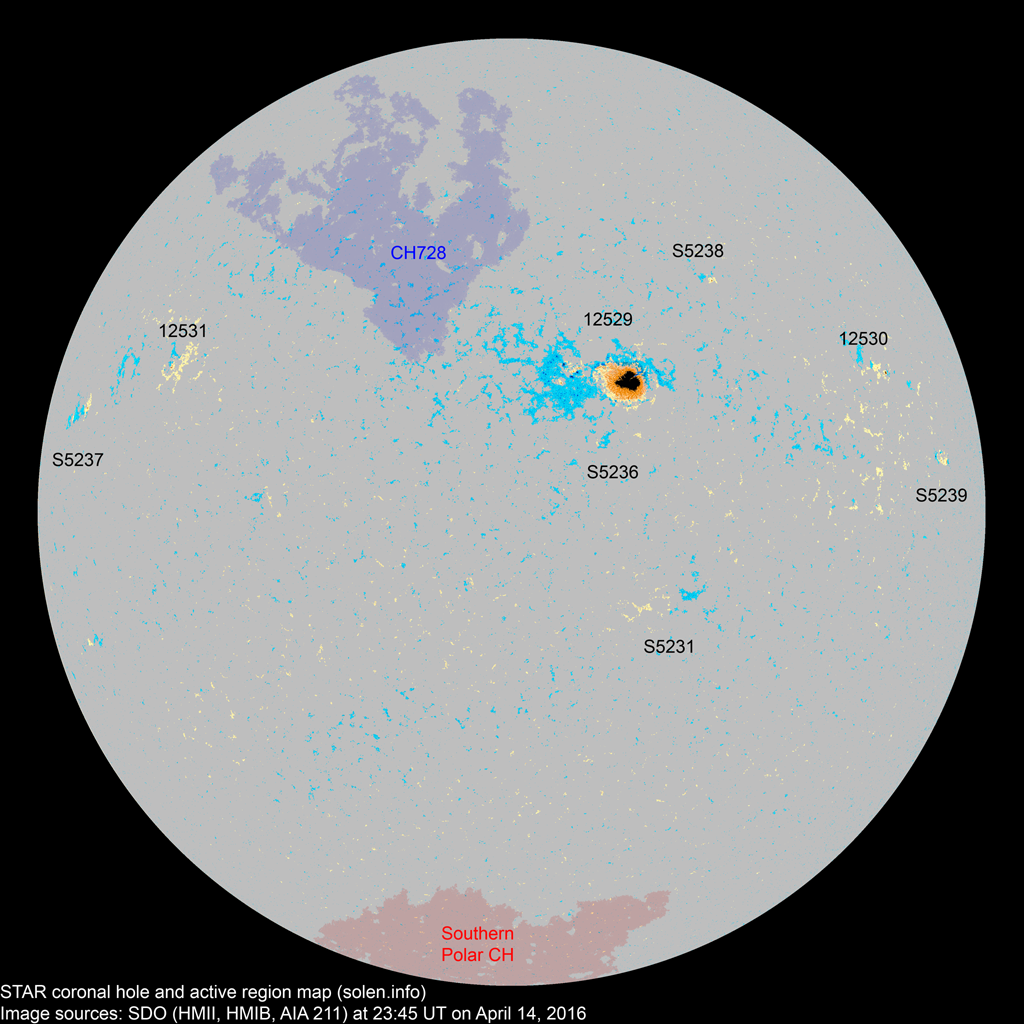

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12529 2016.04.07 14 48 19 N10W13 0790 EKI EKI beta-gamma

area: 0860

S5225 2016.04.09       N02W38
S5226 2016.04.09       N19W55
12530 2016.04.10
2016.04.11
1 5 1 N14W53 0010 AXX CRO
S5228 2016.04.10       S19W52
S5231 2016.04.11   1   S15W22 0001   AXX
12531 2016.04.12
2016.04.13
1 1 1 N14E45 0010 AXX AXX
S5234 2016.04.13       S02E32
S5235 2016.04.13       N12W59
S5236 2016.04.13   2   N03W12 0002   AXX
S5237 2016.04.14   3 1 N10E68 0007   BXO
S5238 2016.04.14   3 1 N24W28 0007   BXO
S5239 2016.04.14   4 2 N04W65 0010   BXO
Total spot count: 16 67 25
Sunspot number: 46 147 85  (total spot count + 10 * number of spotted regions)
Weighted SN: 26 80 38  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 51 66 68 k * (sunspot number)
As of February 19, 2016: k = 1.1 for SWPC, k = 0.45 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.02 129.1 126.0 66.7 86.1 (-3.2) 9.92
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.9 (-3.3) 10.73
2015.05 120.0 122.6 88.8 76.1 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.1 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.3 (-3.8) 8.83
2015.08 105.4 108.0 64.6 66.4 (-1.9) 14.58
2015.09 101.7 102.7 78.1 66.0 (-0.4) 15.78
2015.10 104.1 103.3 61.7 (64.6 projected, -1.4) 14.02
2015.11 109.3 106.9 63.2 (61.9 projected, -2.7) 12.09
2015.12 113.1 109.5 57.7 (59.9 projected, -2.0) 14.29
2016.01 103.4 100.1 56.6 (58.2 projected, -1.7) 9.4
2016.02 103.6 101.0 57.2 (55.9 projected, -2.3) 9.9
2016.03 91.5 90.6 54.9 (52.9 projected, -3.0) 10.58
2016.04 (96.7)   13.1 (2A) / 28.0 (2B) / 34.1 (2C) (50.2 projected, -2.7) (9.8)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
