Recent activity

The geomagnetic field was quiet to unsettled on September 10. Solar wind speed at SOHO ranged between 452 and 603 km/s.

Solar flux at 23h UTC on 2.8 GHz was 92.7 (increasing 19.7 over the previous solar rotation. Earlier measurements on Sept.10 were flare enhanced and discarded). The average 90 day 10.7 flux at 1 AU was 83.1. The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.0). Three hour interval K indices: 00000223 (planetary), 11111423 (Boulder)

The background x-ray flux is at the class C1 level.

At the time of counting spots (see image time), spots were observed in 6 active regions using 2K resolution (SN: 84) and in 5 active regions using 1K resolution (SN: 59) SDO images on the visible solar disk.

(Region 12673 produced a major X8 proton flare while transiting the southwest limb. This produced a strong particle event which will likely continue for some days. A very wide full halo CME was observed as well)
Region 12674 [N12W83] decayed slowly and quietly.
Region 12677 [N14W27] decayed slowly and quietly.
Region 12678 [N11W19] decayed slowly and quietly.
New region 12680 [N09E66] rotated into view on September 9 and was numbered by SWPC the next day.

Spotted regions not numbered (or interpreted differently) by SWPC:
New region S5795 [N37E02] emerged early in the day as a bipolar cycle 25 region. The trailing spot disappeared later in the day.
New region S5797 [N18W20] emerged with a tiny spot.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment
C9.0 03:09 S07W74 12673 GOES15
C2.9 09:20 S09W84 12673 GOES15
X8.2 (LDE) 16:06 S09W90 12673 GOES15 Full halo CME. Strong particle event

Coronal mass ejections (CMEs)

September 8-10: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent northern hemisphere coronal hole (CH824) will rotate across the central meridian on September 10-12.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is very poor due to a strong particle event. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to unsettled on September 11. The CME associated with the X8 event could arrive on September 12 and cause unsettled to major storm conditions. Quiet to active conditions are likely on September 13-15 due to effects from CH824.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

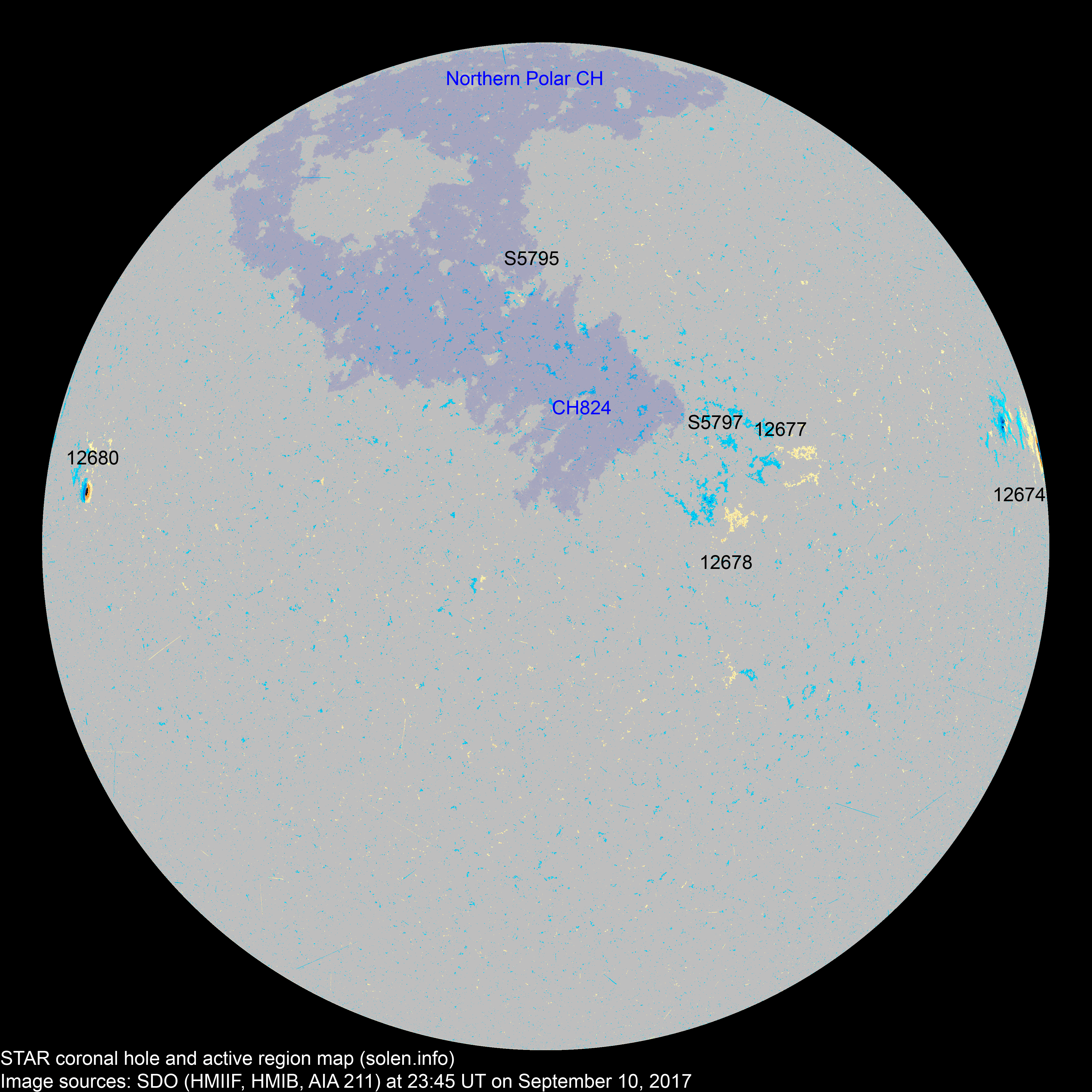

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12674 2017.08.28
2017.08.29
4 4 3 N13W80 0300 FKO FKO

location: N12W70

area: 0550

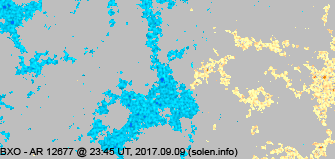

12677 2017.09.02
2017.09.03
  3 2 N17W28 0006   AXX
12678 2017.09.04
2017.09.05
3 4 2 N11W22 0020 CRO AXX
12679 2017.09.05
2017.09.07
      N15W71
S5791 2017.09.06       S09W51
S5792 2017.09.08       S07W22
S5793 2017.09.08       S06W41
12680 2017.09.09
2017.09.10
1 1 1 N09E66 0100 HSX HSX
S5795 2017.09.10   1 1 N37E02 0004   AXX
S5797 2017.09.10   1   N18W20 0001   AXX
Total spot count: 8 14 9
Sunspot number: 38 74 59  (total spot count + 10 * number of spotted regions)
Weighted SN: 26 29 24  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 42 41 47 k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2016.04 93.3 94.0 38.0 47.8 (-2.7) 9.03
2016.05 93.0 95.3 52.1 44.9 (-2.9) 11.65
2016.06 81.9 84.5 20.9 41.6 (-3.3) 8.44
2016.07 86.0 88.9 32.5 38.6 (-3.0) 9.43
2016.08 85.0 87.1 50.7 36.0 (-2.6) 9.61
2016.09 87.7 88.7 44.7 33.3 (-2.7) 14.54
2016.10 86.1 85.6 33.6 31.4 (-1.9) 15.33
2016.11 78.6 76.9 21.4 29.9 (-1.5) 9.11
2016.12 75.1 72.8 18.9 28.5 (-1.4) 9.34
2017.01 77.3 74.9 25.8 27.9 (-0.6) 9.45
2017.02 76.8 75.0 26.1 26.6 (-1.3) 9.58
2017.03 74.6 73.9 17.7 (25.0 projected, -1.6) 14.20
2017.04 80.3 80.8 32.6 (23.4 projected, -1.6) 11.70
2017.05 73.6 75.2 18.8 (22.3 projected, -1.1) 8.09
2017.06 74.7 77.1 19.4 (21.3 projected, -1.0) 6.08
2017.07 77.4 79.9 18.3 (20.2 projected, -1.1) 8.97
2017.08 77.9 79.8 33.1 (18.7 projected, -1.5) 10.66
2017.09 (114.1)   26.5 (2A) / 82.2 (2B) / 54.5 (2C) (17.5 projected, -1.2) (21.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
