The geomagnetic field was quiet to active on August 17 due to effects from CH880. Solar wind speed at SOHO ranged between 435 and 562 km/s.
Solar flux at 20h UTC on 2.8 GHz was 67.3 (decreasing 2.7 over the previous solar rotation). The average 90 day 10.7 flux at 1 AU was 73.2. The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 10.0). Three hour interval K indices: 34221033 (planetary), 44332223 (Boulder)
The background x-ray flux is at the class A1 level.
At the time of counting spots (see image time), spots were observed in 3 active regions using 2K resolution (SN: 34) and in 2 active regions using 1K resolution (SN: 22) SDO/HMI images.
Region 12718 [S08E11] decayed slowly and quietly.
Spotted regions not numbered (or interpreted
differently) by SWPC:
New region S6025 [N11W11] emerged early in the day as a reversed polarity region, the region decayed late in the day.
New region S6026 [N15E021] was observed with a tiny spot in an old plage area.
|Magnitude||Peak time (UT)||Location||AR||Recorded by||Comment|
August 15-17: No obviously Earth directed CMEs were observed in available LASCO imagery.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent extension (CH880) of the northern polar coronal hole rotated across the central meridian on August 11-13. A recurrent trans equatorial coronal hole (CH881) is expected to rotate to an Earth facing position on August 17-20.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to unsettled on August 18 due to coronal hole effects. Quiet conditions are likely on August 19. On August 20-24 another disturbance is expected as effects from CH881 will dominate the solar wind.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image

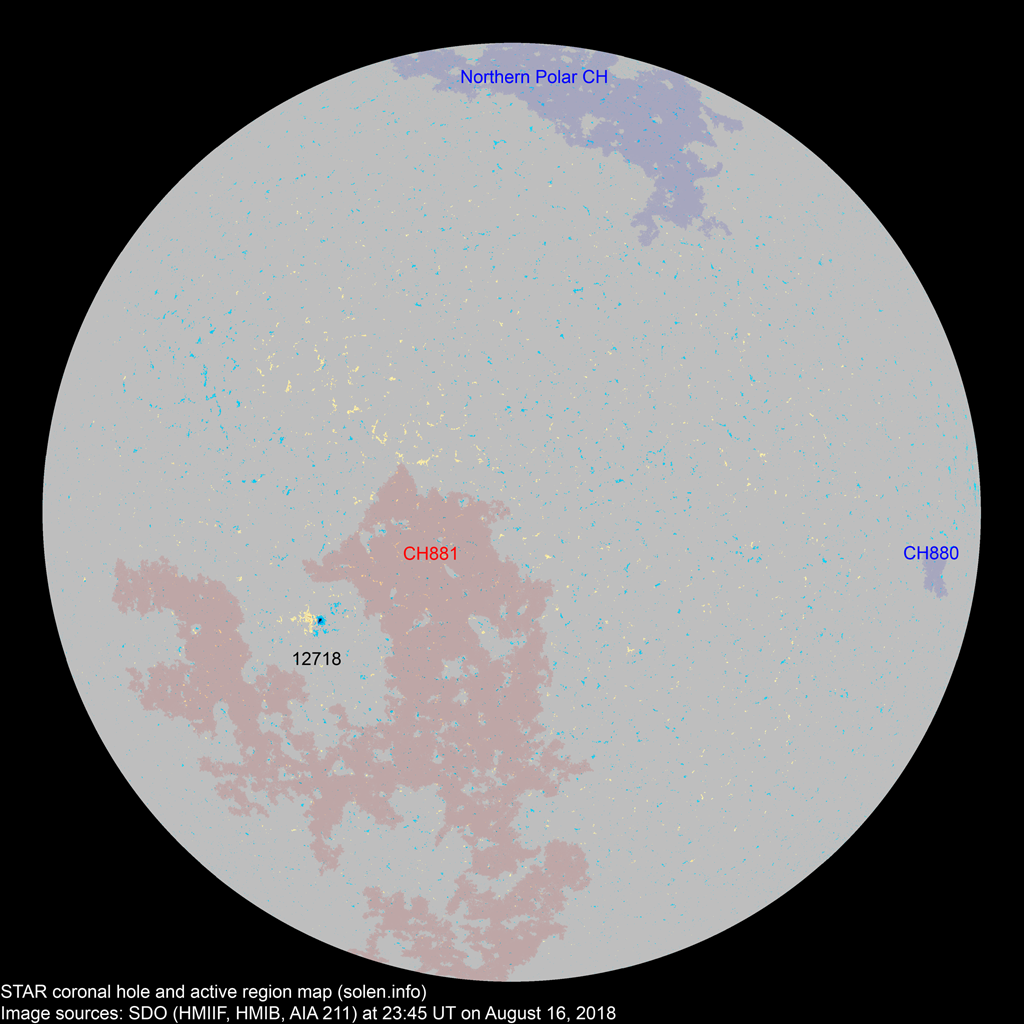

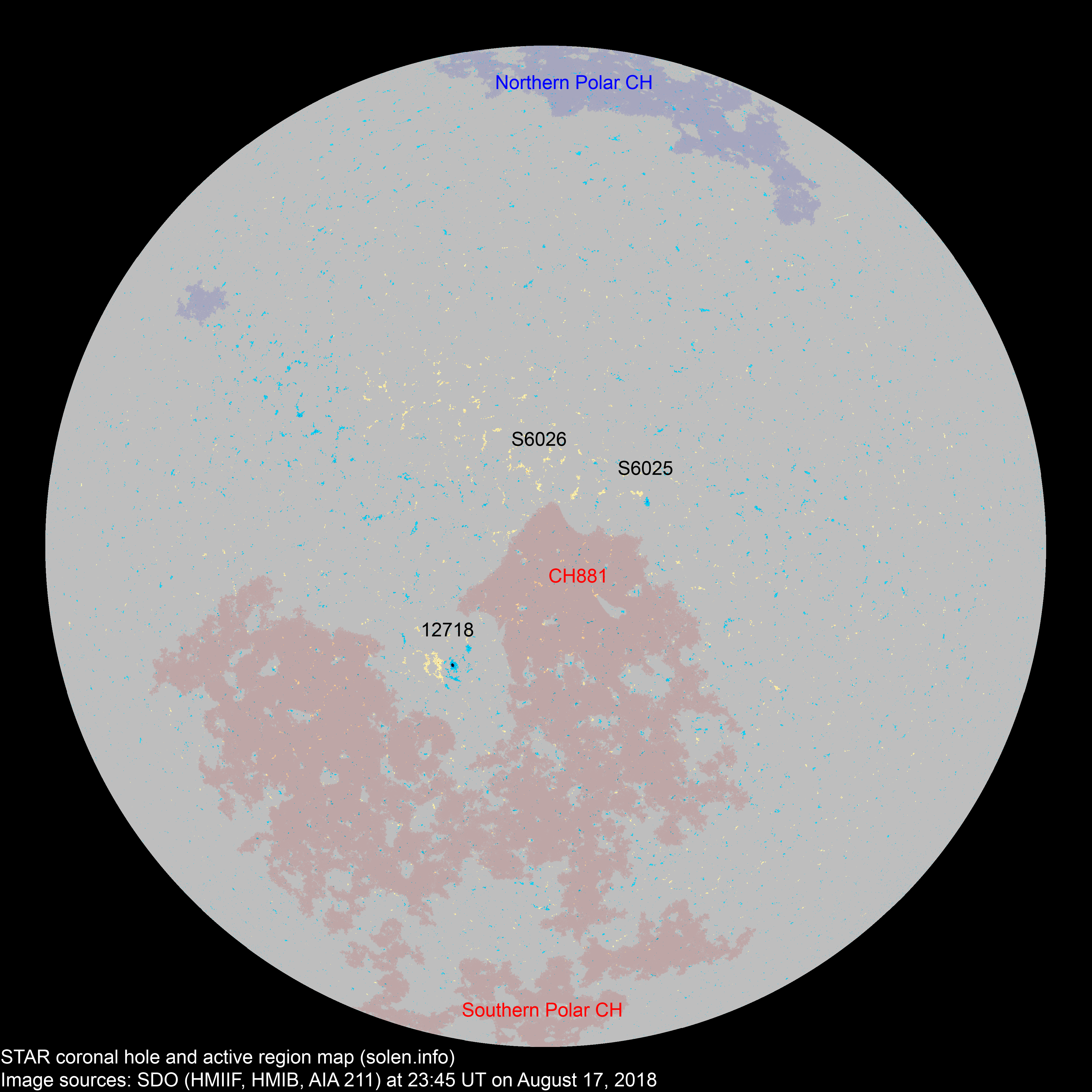

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||1||4||2|
|Sunspot number:||11||34||22||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||4||7||5||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||12||19||18||k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average ap
|166.3||146.1 (cycle peak)||110.5||10.70|
|2014.04||143.9||144.8||112.5||116.4 (solar max)||7.88|
|2017.09||91.3||92.3||43.6||18.2 (-1.3)||18.22 (cycle peak)|
|2018.02||72.0||70.2||10.6||(12.4 projected, -1.9)||6.40|
|2018.03||68.3||67.6||2.5||(9.5 projected, -2.9)||7.91|
|2018.04||70.0||70.5||8.9||(7.6 projected, -1.9)||6.80|
|2018.05||70.8||72.4||13.2||(7.2 projected, -0.4)||7.16|
|2018.06||72.5||74.7||15.9||(6.9 projected, -0.3)||6.83|
|2018.07||69.6||72.3||1.6||(6.5 projected, -0.4)||5.38|
|2018.08||(69.1)||2.2 (2A) / 4.1 (2B) / 4.7 (2C)||(6.2 projected, -0.3)||(5.6)|
|2018.09||(6.2 projected, 0.0)|
|2018.10||(6.1 projected, -0.1)|
|2018.11||(6.0 projected, -0.1)|
|2018.12||(5.9 projected, -0.1)|
|2019.01||(6.1 projected, +0.2)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
