Recent activity

The geomagnetic field was inactive to very quiet on February 18. Solar wind speed ranged between 344 and 403 (all day average 355) km/sec. A weak disturbance began early on February 19, possibly associated with the arrival of the stream from CH212.

Solar flux measured at 20h UTC on 2.8 GHz was 78.5. The planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 1.6).
Three hour interval K indices: 00001001 (planetary), 11012111 (Boulder).

The background x-ray flux is below the class A1 level.

At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Spotted regions not numbered by NOAA/SEC:
[S626] This region emerged in the northwest quadrant near the central meridian on February 18. Location at midnight: N02W10

Coronal mass ejections (CMEs)

February 16-18: No obviously fully or partly Earth directed CMEs were observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH212) in the northern hemisphere was in an Earth facing position on February 17-18. A small coronal hole (CH213) in the southern hemisphere could rotate into an Earth facing position on February 20.

Processed SOHO/EIT 284 image at 01:06 UTC on February 19. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to unsettled on February 19-24 due to coronal hole effects, isolated active intervals are possible on February 20-21.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: WLAM Lewiston ME. Most of the usual east coast US stations were noted with fair to good signals. 1110 WBT had one of the best signals.

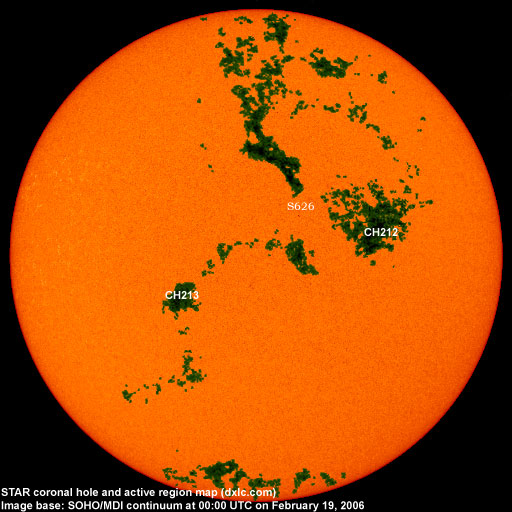

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10854 2006.02.15     S08W22     plage
10855 2006.02.16     N05E02     plage
S623 2006.02.13     S12W03     plage
S626 2006.02.18   2 N02W10 0000 AXX
Total spot count: 0 2
SSN: 0 12

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2004.12 94.5 17.9 35.2 (-0.1)
2005.01 102.2 31.3 34.6 (-0.6)
2005.02 97.2 29.2 33.9 (-0.7)
2005.03 89.9 24.5 33.5 (-0.4)
2005.04 86.0 24.4 31.6 (-1.9)
2005.05 99.3 42.6 28.9 (-2.7)
2005.06 93.7 39.6 28.8 (-0.1)
2005.07 96.4 39.9 29.1 (+0.3)
2005.08 90.5 36.4 (27.6 predicted, -1.5)
2005.09 91.1 22.1 (25.8 predicted, -1.8)
2005.10 77.0 8.5 (24.0 predicted, -1.8)
2005.11 86.3 18.0 (21.6 predicted, -2.4)
2005.12 90.7 41.2 (18.7 predicted, -2.9)
2006.01 83.4 15.4 (15.6 predicted, -3.1)
2006.02 76.7 (1) 4.0 (2) (12.5 predicted, -3.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
