Solar Terrestrial Activity Report

Last major update issued on October 3, 2006 at 03:45 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update October 2, 2006)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update October 2, 2006)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update October 2, 2006)]
[Historical solar and geomagnetic data charts 1954-2005 (last update March 3, 2006)]
[Archived reports (last update October 2, 2006)]

Recent activity

The geomagnetic field was quiet on October 2. Solar wind speed ranged between 416 and 477 km/s (all day average 452 km/s - decreasing 36 km/s from the previous day).

Solar flux measured at 20h UTC on 2.8 GHz was 77.9. The planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 6.8). Three hour interval K indices: 22222212 (planetary), 22311111 (Boulder).

The background x-ray flux is at the class A2 level.

At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10913 was quiet and stable.
Region 10914 was quiet and stable.

Coronal mass ejections (CMEs)

September 30 - October 2: No obvious partly or fully Earth directed CMEs were detected in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small coronal hole (CH242) in the northern hemisphere will likely rotate into an Earth facing position on October 4.

Processed SOHO/EIT 284 image at 19:06 UTC on October 2. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be mostly quiet on October 3-10. Some unsettled intervals are possible on October 8 due to effects from a low speed stream from CH242.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Several east coast stations from Canada and the US had fair to good signals during the night, for instance 790 WAXY and 1470 WLAM were both good at times. Many stations from Cuba, Colombia and Venezuela had strong signals.

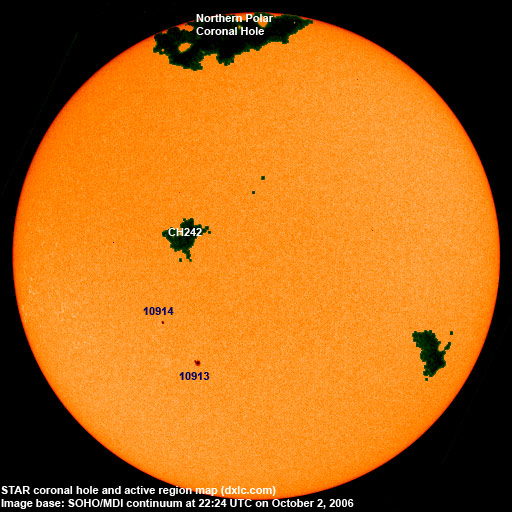

Active solar regions (Recent map)

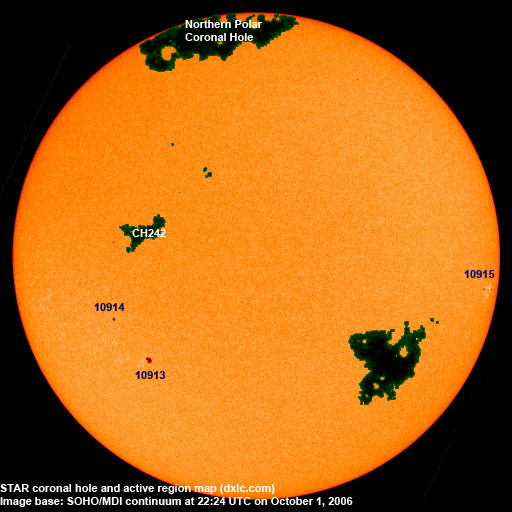

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10911 2006.09.26     N07W09     plage
10912 2006.09.28     N03E13     plage
10913 2006.09.28 3 2 S19E14 0050   classification was HAX at midnight
10914 2006.09.28 1 1 S10E22 0020 HSX
10915 2006.09.29 2   S06W86 0030 BXO rotated out of view
Total spot count: 6 3
SSN: 36 23

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2005.08 90.5 36.4 27.4 (-1.7)
2005.09 91.1 21.9 25.8 (-1.6)
2005.10 77.0 8.7 25.5 (-0.3)
2005.11 86.3 18.0 24.9 (-0.6)
2005.12 90.7 41.1 23.0 (-1.9)
2006.01 83.4 15.3 20.8 (-2.2)
2006.02 76.5 4.9 18.6 (-2.2)
2006.03 75.4 10.6 17.3 (-1.3)
2006.04 89.0 30.2 (17.1 predicted, -0.2)
2006.05 80.9 22.2 (16.8 predicted, -0.3)
2006.06 76.5 13.9 (15.1 predicted, -1.7)
2006.07 75.7 12.2 (13.2 predicted, -1.9)
2006.08 79.0 12.9 (12.8 predicted, -0.4)
2006.09 77.8 14.5 (12.6 predicted, -0.2)
2006.10 78.2 (1) 2.3 (2) (11.6 predicted, -1.0)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
