The geomagnetic field was quiet to unsettled on January 27. Solar wind speed at SOHO ranged between 347 and 480 km/s.
Solar flux at 20h UTC on 2.8 GHz was 158.1 (increasing 24.5 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 146.7. The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 10.4). Three hour interval K indices: 33321223 (planetary), 22323323 (Boulder).
The background x-ray flux is at the class C1 level.
At the time of counting spots (see image time), spots were observed in 11 active regions using 2K resolution (SN: 277) and 11 active regions using 1K resolution (SN: 198) SDO images on the visible solar disk.

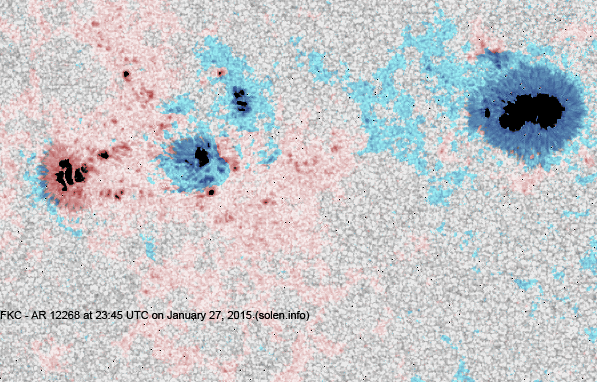

Region 12268 [S10E08] developed in the trailing
spot section and has polarity intermixing. An M class flare is possible. The
region produced an M1.4 flare peaking at 04:41 UTC on January 28.

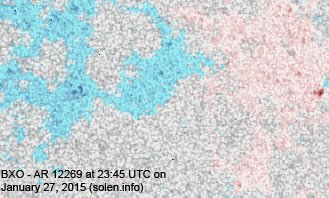

Region 12269 [N07W33] decayed slowly and quietly.
Region 12271 [N17W15] developed further and has minor M class flare
potential.
Region 12272 [N12E48] was quiet and stable.
Region 12273 [S03W12] decayed slowly and could produce further C flares.
Region 12275 [S16W25] developed and might be capable of producing a minor
M class flare.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4174 [S09E52] gained a few spots and was quiet.
New region S4181 [S07E39] emerged early in the day.
New region S4182 [N16W05] emerged early in the day and appeared to be
decaying late in the day.
New region S4183 [N06E83] rotated partly into view. This region could be
capable of producing a major flare.
New region S4184 [N22W45] emerged with a single spot.
C2+ flares (GOES):
| Magnitude | Peak time (UTC) | Location | AR | Comment |
| C2.4 | 05:47 | S03E01 | 12273 | |
| C2.1 (LDE) | 07:33 | S4183 | ||
| C2.9 | 20:30 | S4183 | ||
| C5.7 | 23:59 | S4181 |
January 25-27: No obviously Earth directed CMEs were observed in LASCO imagery.
[Coronal hole history (since October
2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A small southern hemisphere coronal hole (CH651) was in an Earth facing position on January 25.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on January 28-29 due to weak coronal hole effects.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

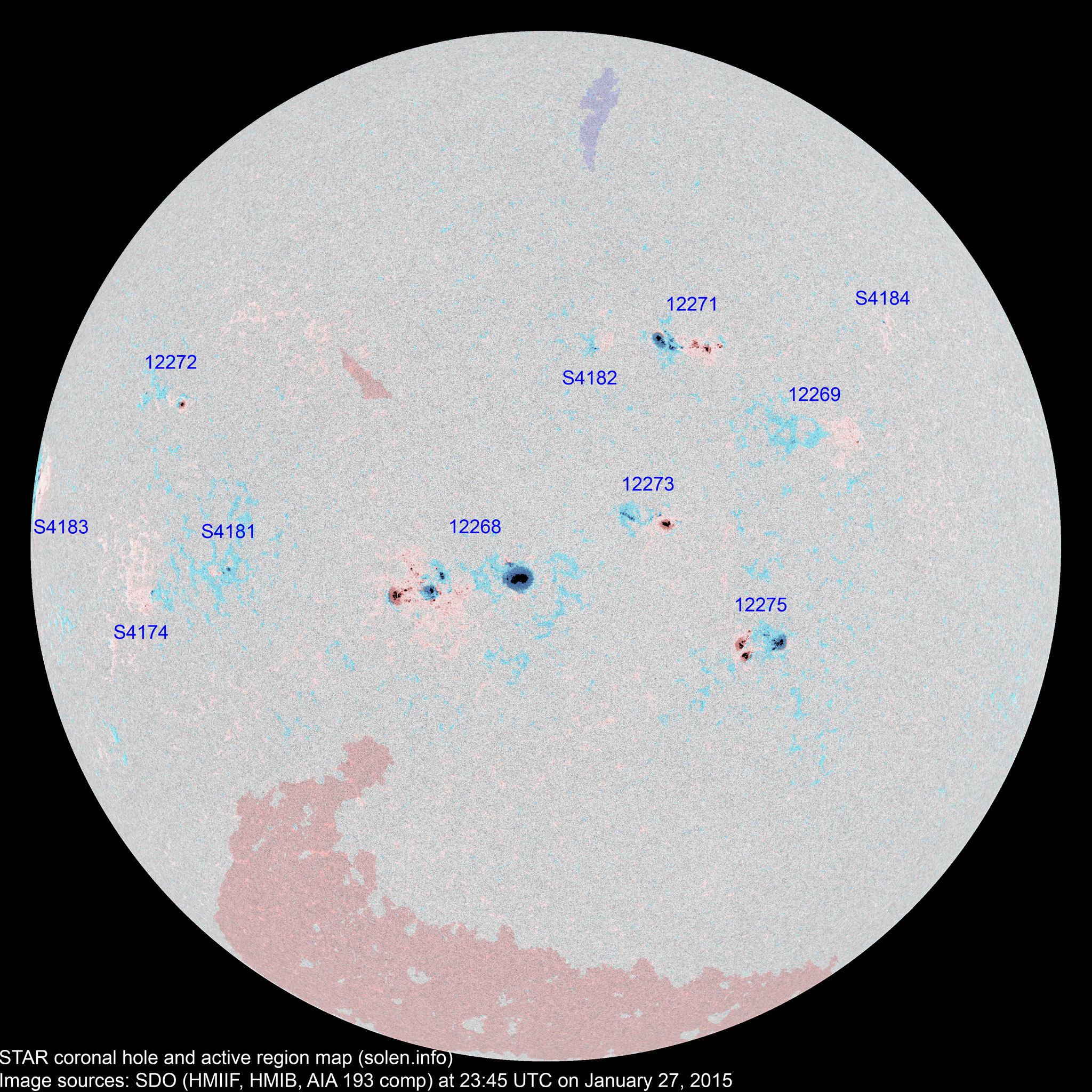

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12267 | 2015.01.18 2015.01.19 |
N18W49 | plage | ||||||||
| 12269 | 2015.01.19 2015.01.22 |
5 | 9 | 3 | N07W36 | 0020 | CAI | BXO |
 |
 |
|
| 12268 | 2015.01.21 2015.01.22 |
24 | 59 | 33 | S10E09 | 0480 | FKC | FKC |
 |
 |
beta-gamma area: 0680 |
| 12270 | 2015.01.22 2015.01.23 |
S18W01 | plage | ||||||||
| S4166 | 2015.01.22 | S27W36 | plage | ||||||||
| S4167 | 2015.01.22 | N02W45 | plage | ||||||||
| S4168 | 2015.01.23 | S10W27 | plage | ||||||||
| 12271 | 2015.01.23 2015.01.25 |
10 | 28 | 15 | N18W18 | 0120 | DAI | DAC |
 |
 |
area: 0220 location: N17W15 |
| S4172 | 2015.01.24 | S24W15 | plage | ||||||||
| S4173 | 2015.01.24 | S04W47 | plage | ||||||||
| S4174 | 2015.01.25 | 7 | 2 | S09E52 | 0016 | BXO |
 |
 |
|||
| 12272 | 2015.01.25 2015.01.26 |
3 | 7 | 2 | N13E49 | 0040 | CSO | CAO |
 |
 |
|
| 12273 | 2015.01.25 2015.01.26 |
6 | 13 | 10 | S03W12 | 0090 | DAO | DAI |
 |
 |
|
| 12274 | 2015.01.25 2015.01.26 |
S03W20 |
 |
plage | |||||||
| 12275 | 2015.01.26 | 11 | 25 | 13 | S17W26 | 0090 | DAI | DAC |
 |
| plage |
| S4179 | 2015.01.26 | N17W28 |
 |
plage | |||||||
| S4180 | 2015.01.26 | N23W06 |
 |
plage | |||||||
| S4181 | 2015.01.27 | 6 | 3 | S07E39 | CRO |
 |
|||||
| S4182 | 2015.01.27 | 4 | 1 | N16W05 | 0010 | CRO |
 |
||||
| S4183 | 2015.01.27 | 8 | 5 | N06E83 | 0120 | CAO |
 |
||||
| S4184 | 2015.01.27 | 1 | 1 | N22W45 | 0004 | AXX |
 |
||||
| Total spot count: | 59 | 167 | 88 | ||||||||
| Sunspot number: | 119 | 277 | 198 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 94 | 208 | 129 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 71 | 97 | 109 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
| 2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | 80.5 (-1.4) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | 79.7 (-0.8) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | (78.6 projected, -1.1) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | (76.2 projected, -2.4) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | (73.0 projected, -3.2) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (70.5 projected, -2.5) | 8.96 |
| 2014.11 | 154.8 | 151.4 | 70.1 | (68.8 projected, -1.7) | 9.33 |
| 2014.12 | 158.7 | 153.8 | 78.0 | (67.7 projected, -1.1) | 11.24 |
| 2015.01 | 139.8 (1) | 84.3 (2A) / 93.3 (2B) / 74.8 (2C) | (66.5 projected, -1.2) | (9.1) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
